50J3R100H50-SAD16E54-C
50J3R100H50-SAD16E54-C
50J3R100H50-SAD16E54-C

50J3R100H50-SAD16E54-C

UGC DOR6922377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,922.00 CAD - $1,922.00 CAD
$1,922.00 CAD
$1,922.00 CAD - $1,922.00 CAD
$1,922.00 CAD

Vendu en lots de : 1

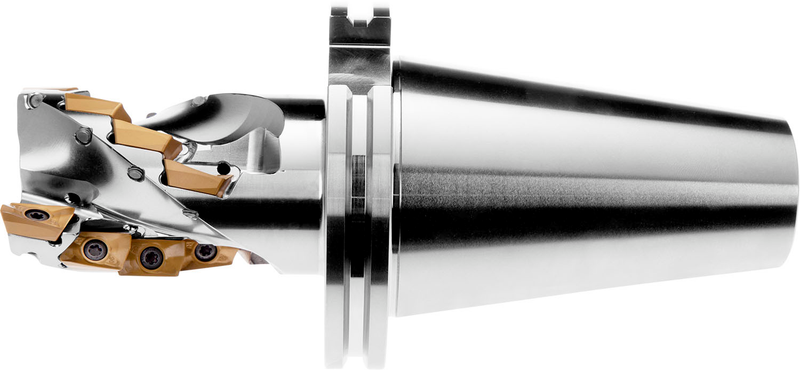

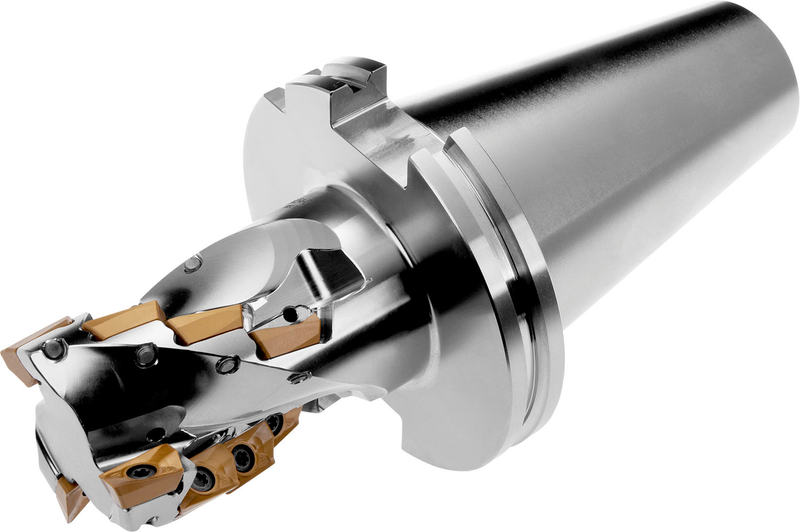

Fraise à épaulement à queue avec une géométrie positive/négative qui utilise 12 plaquettes unilatérales ADMX 16 ou ADEX 16, diamètre de coupe de 50 mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle de 54 mm et longueur totale de 202 mm, lubrification par l'intérieur pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 54 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50J3R100H50-SAD16E54-C
Product Number6922377
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)54.0 mm

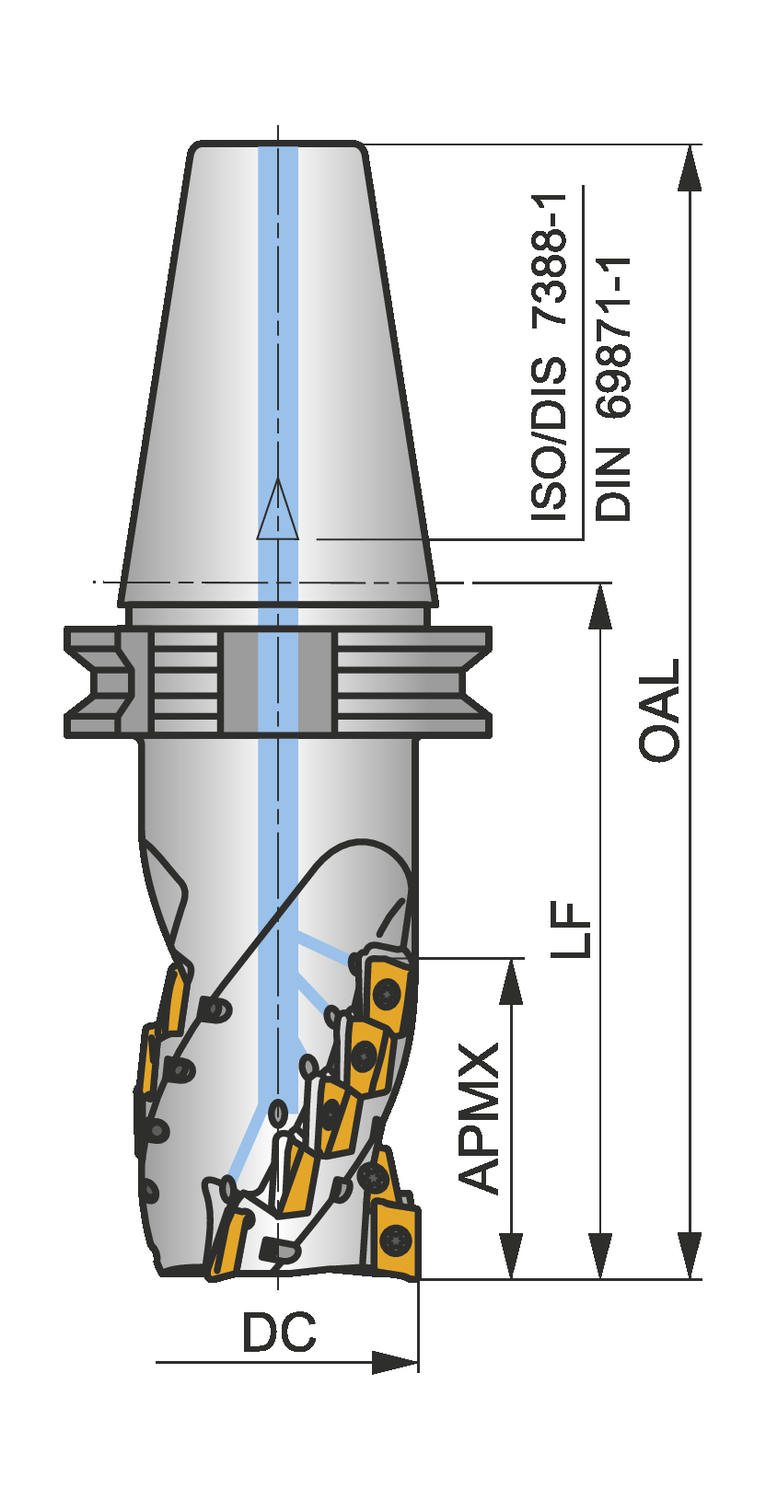

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)7.953"
Overall Length — mm (OAL)202.0 mm
Functional Length — mm (LF)100.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbor DIN 69871-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922377
EAN3603603072046
File Type Download
50J3R100H50-SAD16E54-C — 3D Model STP Download
50J3R100H50-SAD16E54-C — 2D Model DXF Download
50J3R100H50-SAD16E54-C — Line Drawing PDF Download
