50J3R140H50-SAD16E80-C
50J3R140H50-SAD16E80-C
50J3R140H50-SAD16E80-C

50J3R140H50-SAD16E80-C

UGC DOR6922379
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,383.00 CAD - $2,383.00 CAD
$2,383.00 CAD
$2,383.00 CAD - $2,383.00 CAD
$2,383.00 CAD

Vendu en lots de : 1

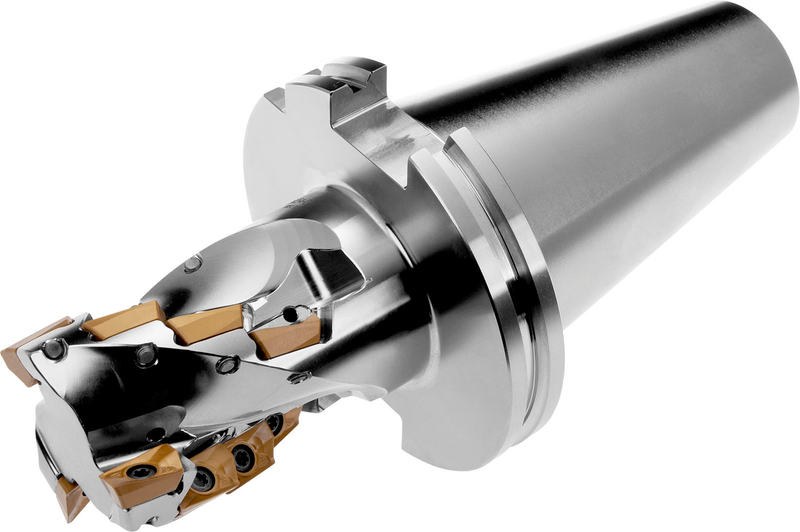

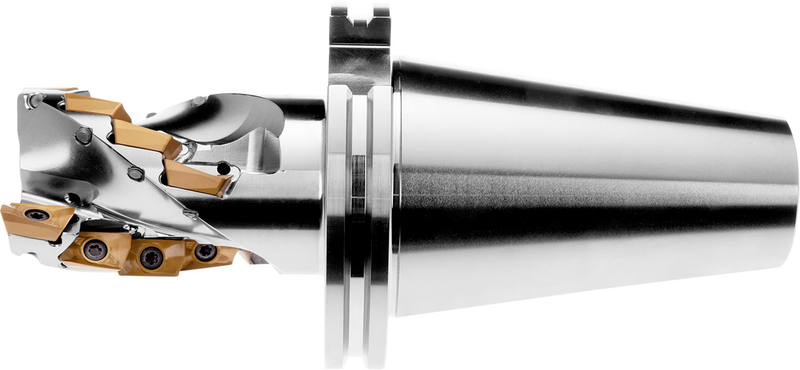

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 18 plaquettes simple face ADMX 16 ou ADEX 16, diamètre de coupe 50mm avec un angle d'attaque de 90° et une queue conique SK 50 selon ISO/DIS 7388-1, 80mm de longueur utile et 242mm de longueur totale, arrosage central pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 80mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50J3R140H50-SAD16E80-C
Product Number6922379
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)80.0 mm

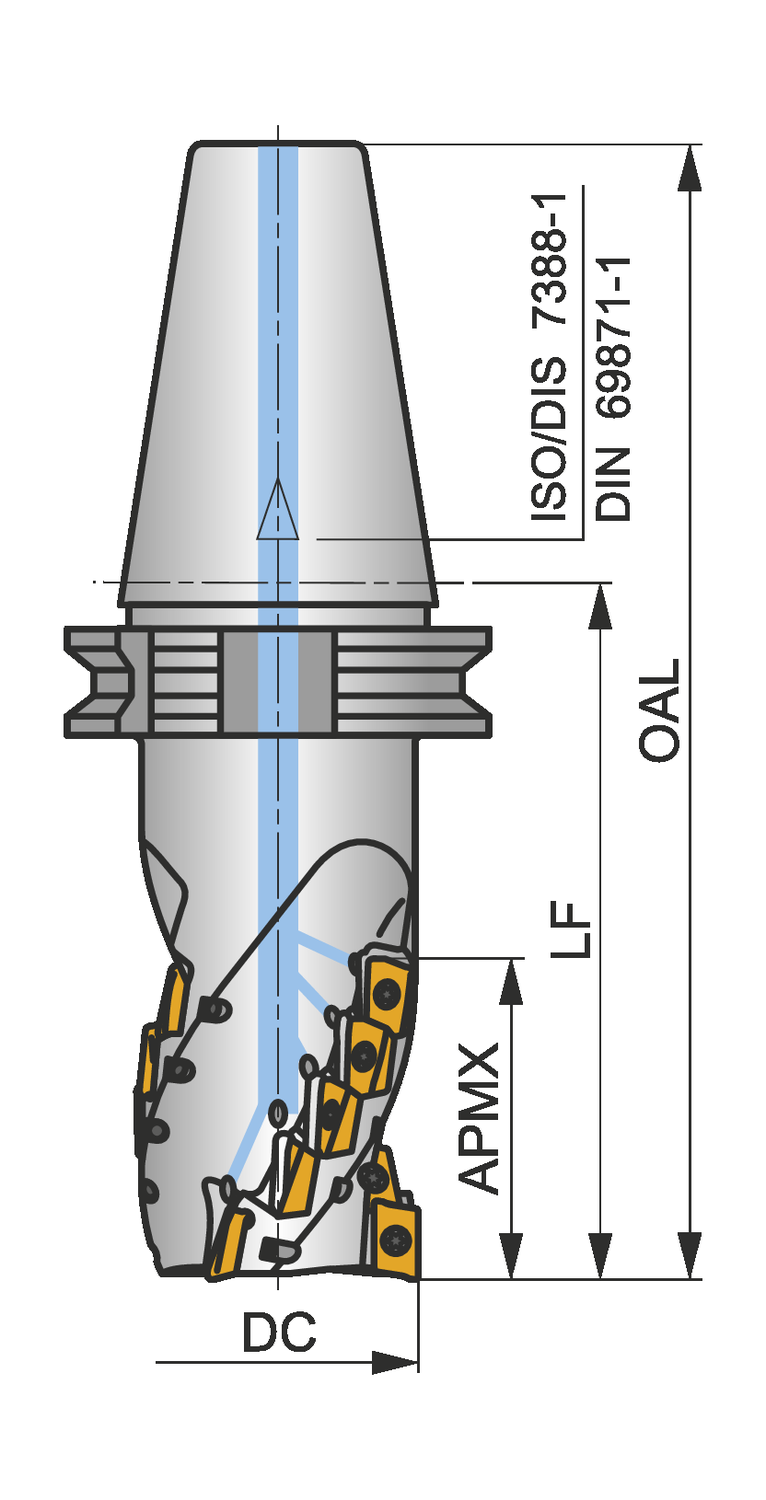

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)9.528"
Overall Length — mm (OAL)242.0 mm
Functional Length — mm (LF)140.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbre DIN 69871-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922379
EAN3603603072060
File Type Download
50J3R140H50-SAD16E80-C — 3D Model STP Download
50J3R140H50-SAD16E80-C — 2D Model DXF Download
50J3R140H50-SAD16E80-C — Line Drawing PDF Download
