50J3R140X50-SAD16E68-C
50J3R140X50-SAD16E68-C
50J3R140X50-SAD16E68-C

50J3R140X50-SAD16E68-C

UGC DOR6922410
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,154.00 CAD - $2,154.00 CAD
$2,154.00 CAD
$2,154.00 CAD - $2,154.00 CAD
$2,154.00 CAD

Vendu en lots de : 1

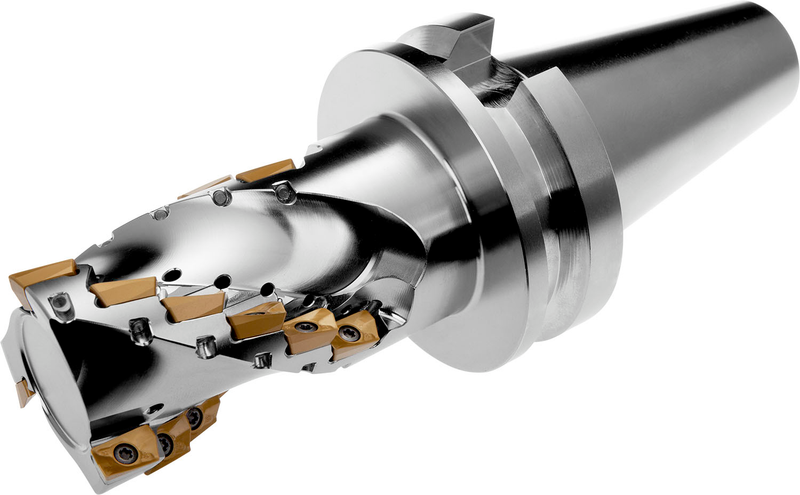

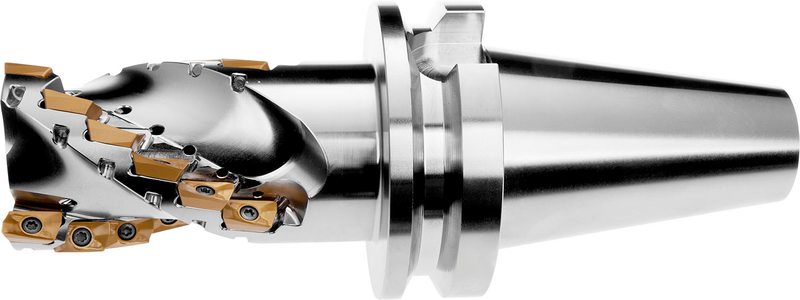

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 15 plaquettes unilatérales ADMX 16 ou ADEX 16, diamètre de coupe 50 mm avec angle d'attaque de 90° et cône BT 50 selon JIS B 6339, longueur utile de 68 mm et longueur totale de 242 mm, arrosage central pour le fraisage d'épaulements profonds et de gorges profondes avec une profondeur de coupe maximale de 68 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50J3R140X50-SAD16E68-C
Product Number6922410
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)68.0 mm

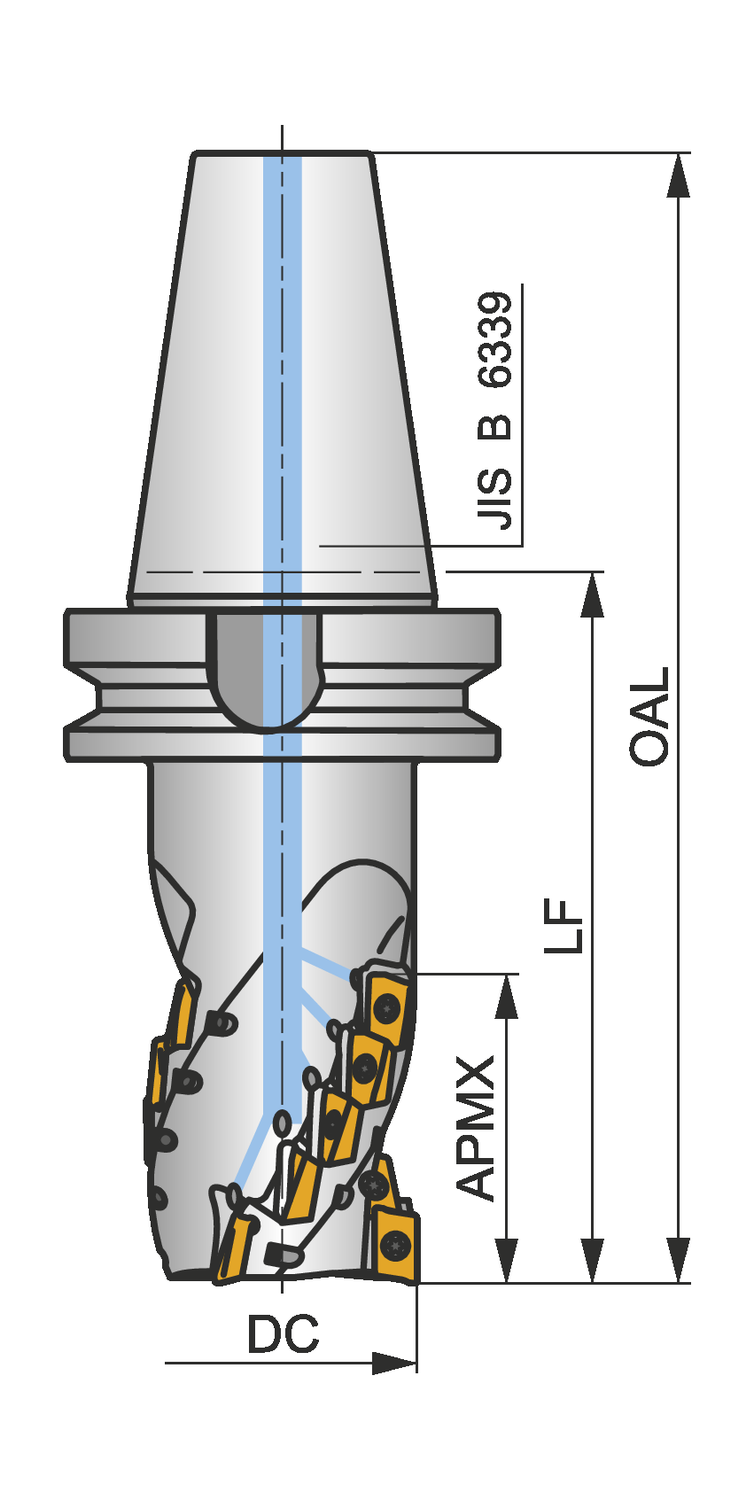

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)9.528"
Overall Length — mm (OAL)242.0 mm
Functional Length — mm (LF)140.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbor MAS BT (JIS-B-63339)
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922410
EAN3603603072077
File Type Download
50J3R140X50-SAD16E68-C — 3D Model STP Download
50J3R140X50-SAD16E68-C — 2D Model DXF Download
50J3R140X50-SAD16E68-C — Line Drawing PDF Download
