50T03R-S90AD16E40-C
50T03R-S90AD16E40-C
50T03R-S90AD16E40-C

50T03R-S90AD16E40-C

UGC DOR6922411
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,386.00 CAD - $1,386.00 CAD
$1,386.00 CAD
$1,386.00 CAD - $1,386.00 CAD
$1,386.00 CAD

Vendu en lots de : 1

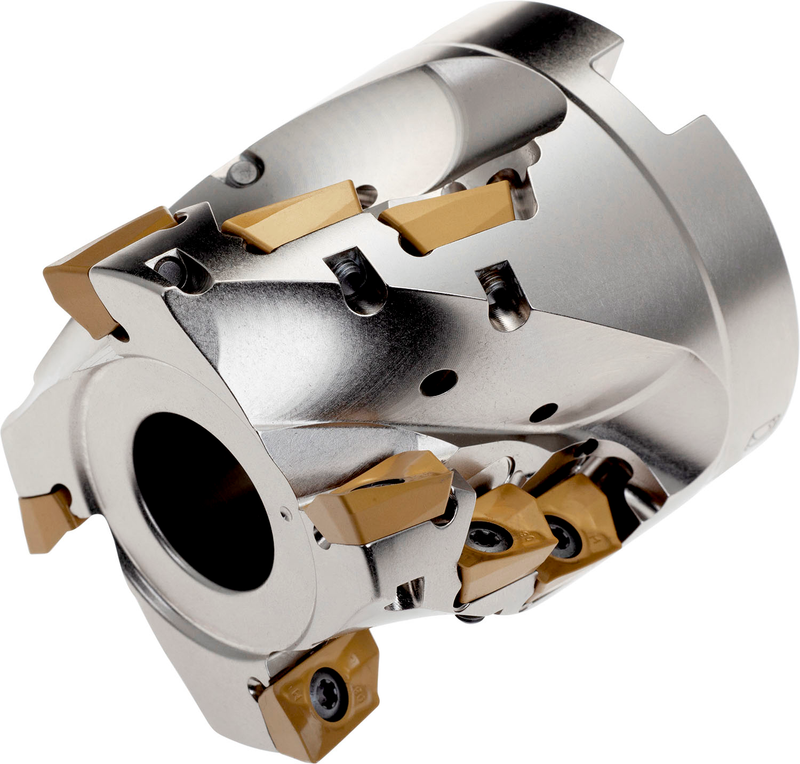

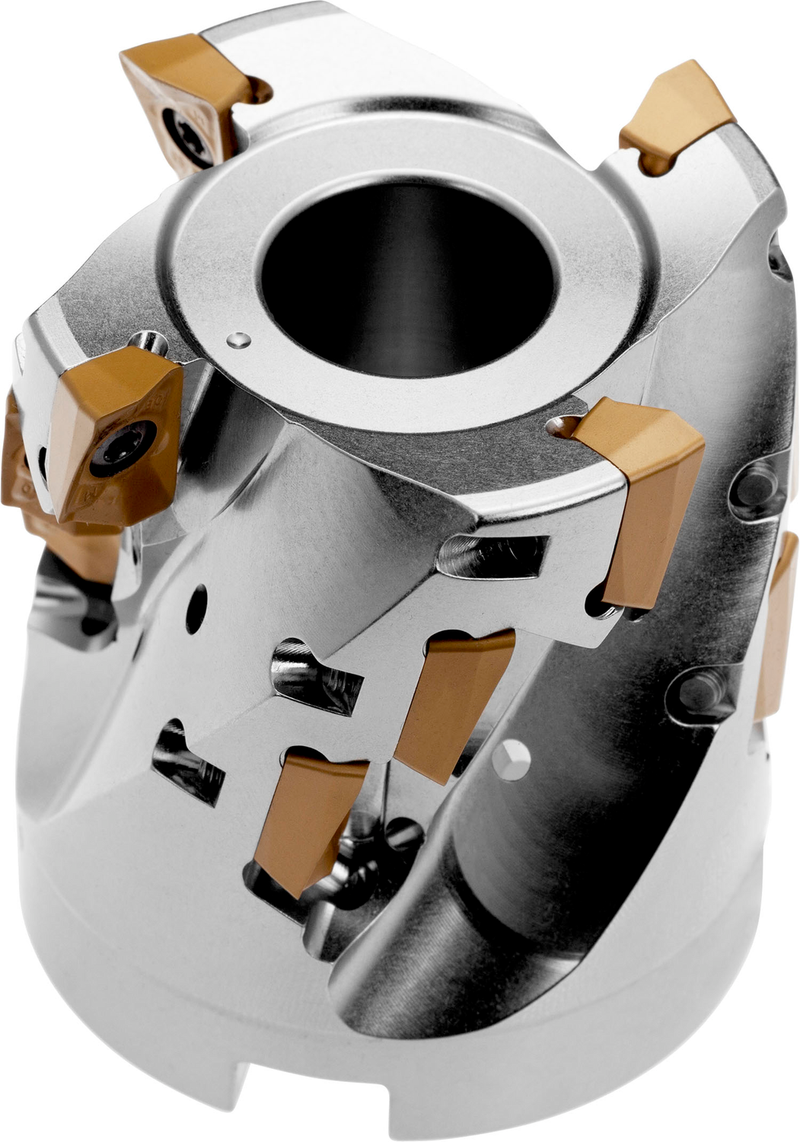

Fraise à épaulement à queue longue avec géométrie positive/négative utilisant 9 plaquettes simples ADMX 16 ou ADEX 16, diamètre de coupe de 50 mm avec angle d'attaque de 90° et alésage de raccordement de 22 mm selon DIN 8030, longueur fonctionnelle de 40 mm et longueur de dépassement de 70 mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 40 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50T03R-S90AD16E40-C
Product Number6922411
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)40.0 mm

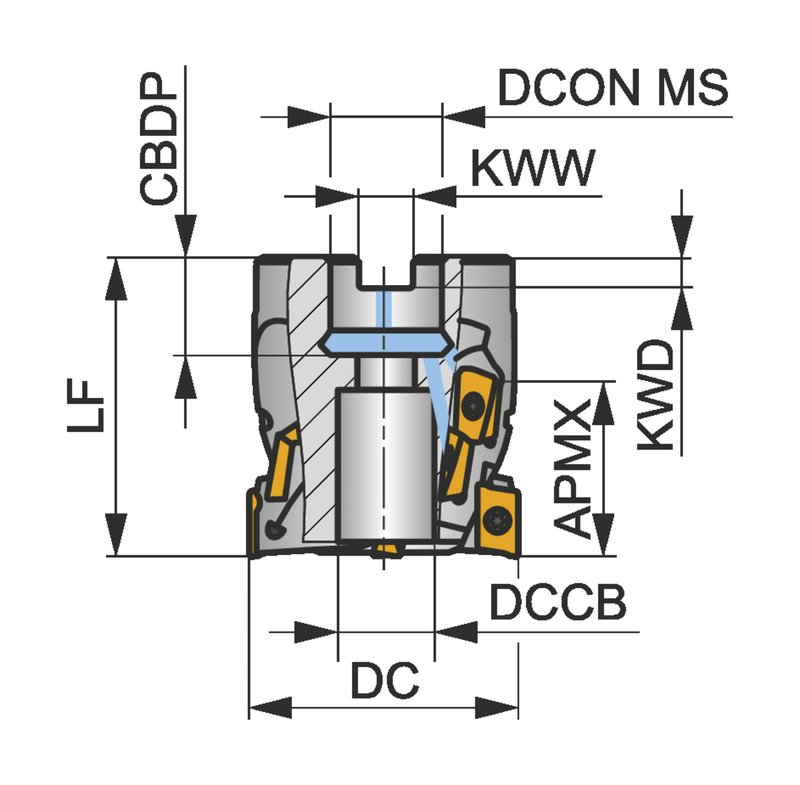

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)70.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankFraise deux tailles DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922411
EAN3603603072084
File Type Download
50T03R-S90AD16E40-C — 3D Model STP Download
50T03R-S90AD16E40-C — 2D Model DXF Download
50T03R-S90AD16E40-C — Line Drawing PDF Download
