63J3R155H50-SAD16E95-C
63J3R155H50-SAD16E95-C
63J3R155H50-SAD16E95-C

63J3R155H50-SAD16E95-C

UGC DOR6922414
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,588.00 CAD - $2,588.00 CAD
$2,588.00 CAD
$2,588.00 CAD - $2,588.00 CAD
$2,588.00 CAD

Vendu en lots de : 1

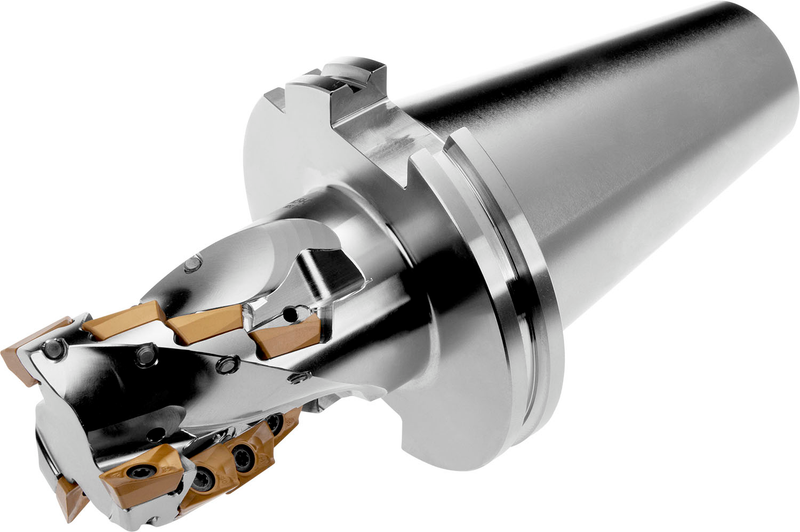

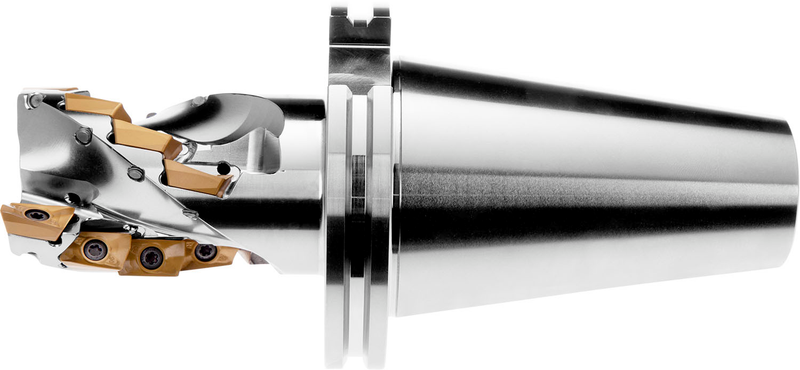

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 21 plaquettes ADMX 16 ou ADEX 16 à une seule face, diamètre de coupe de 63 mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle de 95 mm et longueur totale de 257 mm, arrosage interne pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J3R155H50-SAD16E95-C
Product Number6922414
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

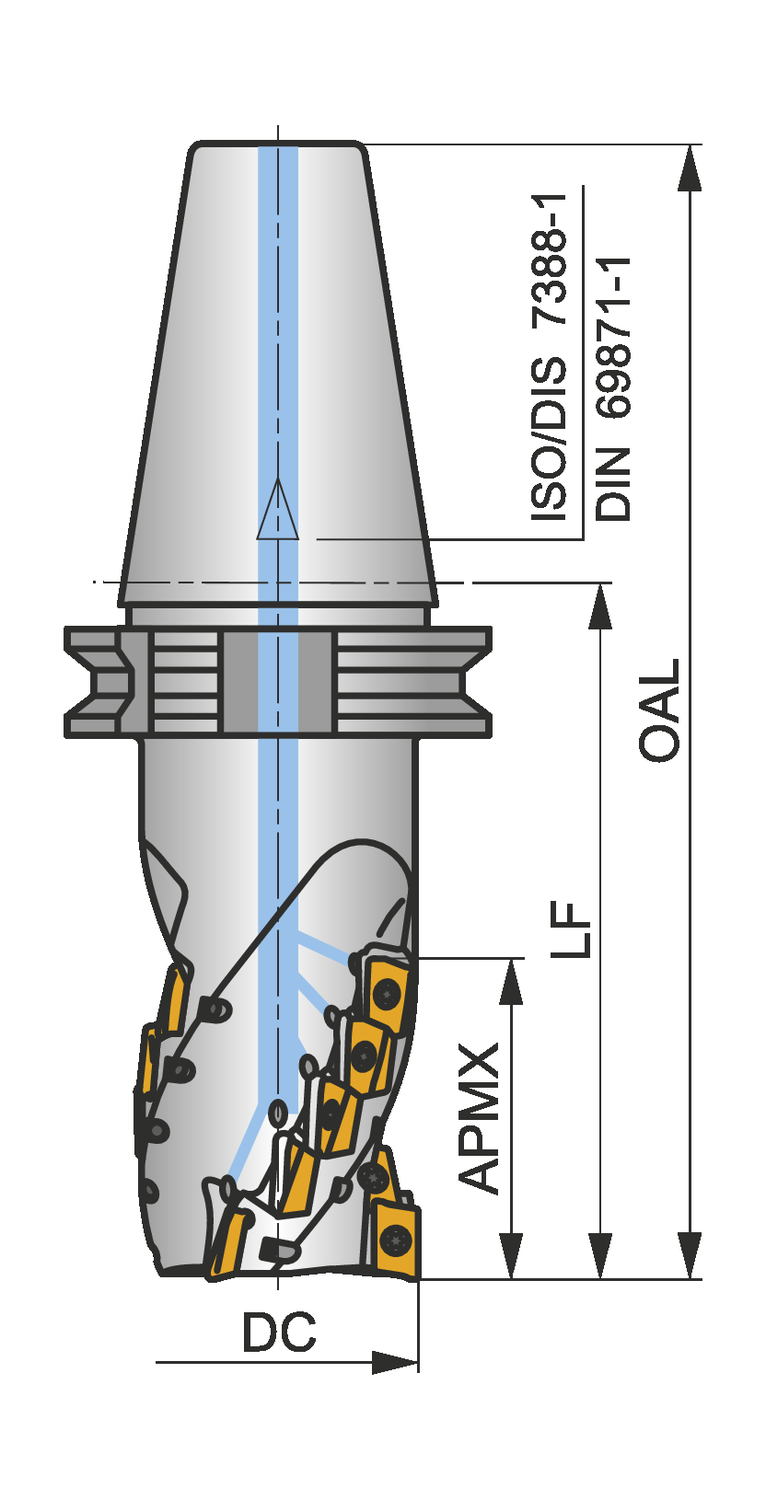

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)10.118"
Overall Length — mm (OAL)257.0 mm
Functional Length — mm (LF)155.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbre DIN 69871-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922414
EAN3603603072114
File Type Download
63J3R155H50-SAD16E95-C — 3D Model STP Download
63J3R155H50-SAD16E95-C — 2D Model DXF Download
63J3R155H50-SAD16E95-C — Line Drawing PDF Download
