63J3R155X50-SAD16E80-C
63J3R155X50-SAD16E80-C
63J3R155X50-SAD16E80-C

63J3R155X50-SAD16E80-C

UGC DOR6922415
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,574.00 CAD - $2,574.00 CAD
$2,574.00 CAD
$2,574.00 CAD - $2,574.00 CAD
$2,574.00 CAD

Vendu en lots de : 1

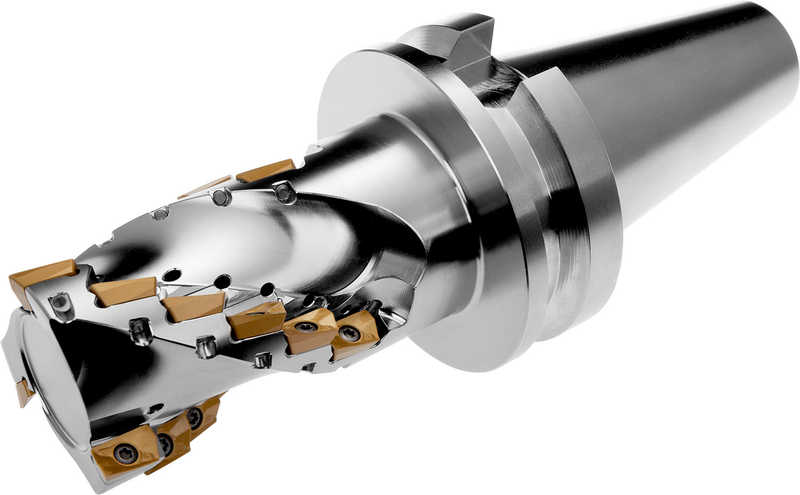

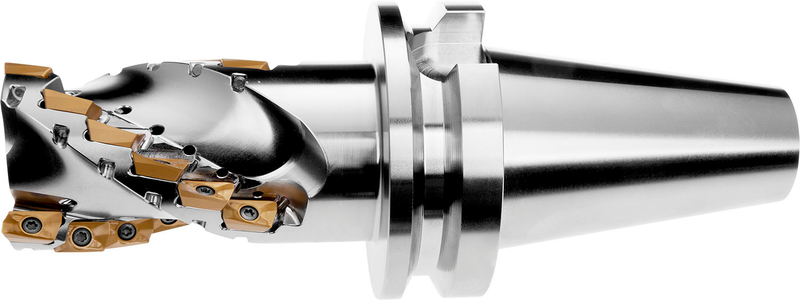

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 18 plaquettes simple face ADMX 16 ou ADEX 16, diamètre de coupe 63 mm avec un angle d'attaque de 90° et un cône BT 50 selon JIS B 6339, longueur fonctionnelle de 80 mm et longueur totale de 257 mm, arrosage interne pour le fraisage d'épaulements profonds et de gorges profondes avec une profondeur de coupe maximale de 80 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J3R155X50-SAD16E80-C
Product Number6922415
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)80.0 mm

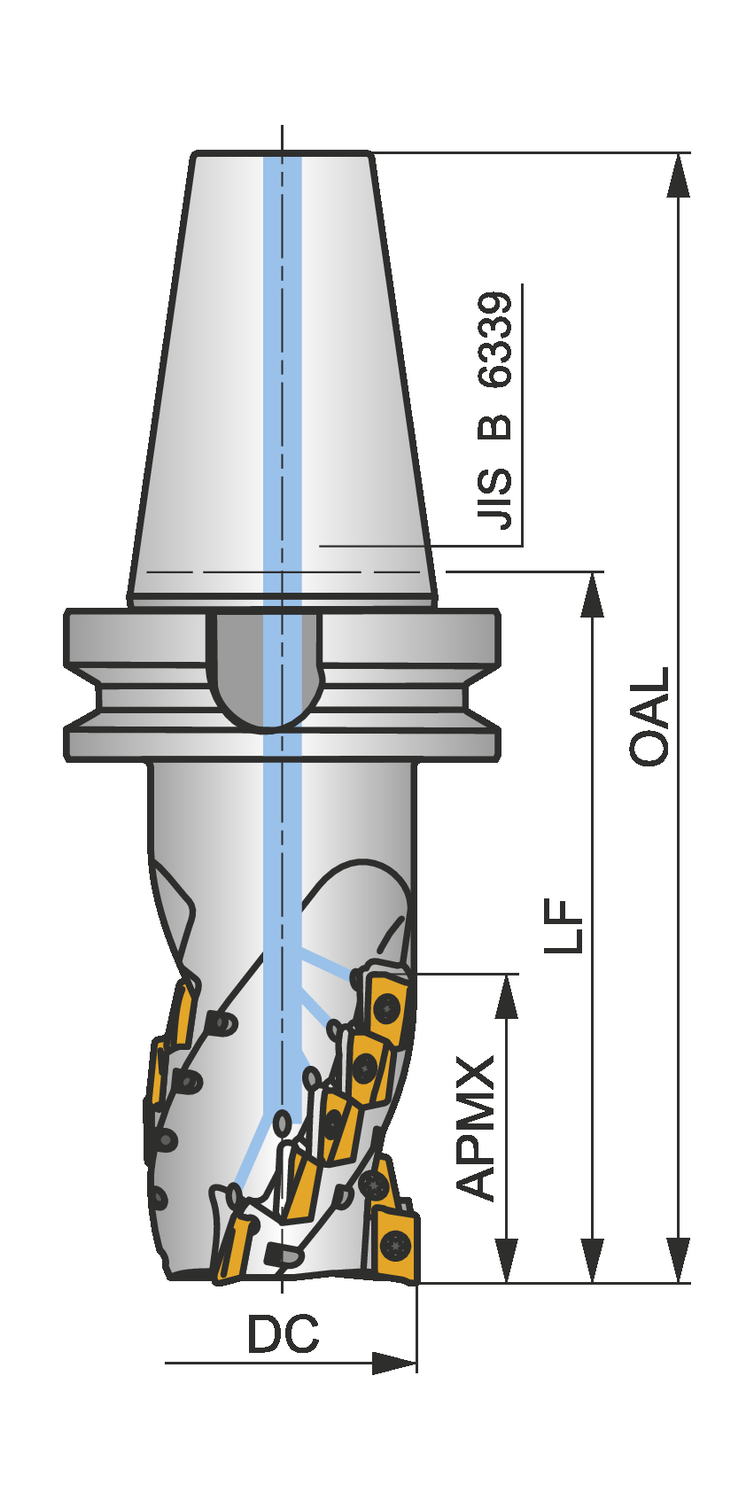

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)10.118"
Overall Length — mm (OAL)257.0 mm
Functional Length — mm (LF)155.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbor MAS BT (JIS-B-6339)
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922415
EAN3603603072121
File Type Download
63J3R155X50-SAD16E80-C — 3D Model STP Download
63J3R155X50-SAD16E80-C — 2D Model DXF Download
63J3R155X50-SAD16E80-C — Line Drawing PDF Download
