80J4R165G50-SAD16E108-C
80J4R165G50-SAD16E108-C
80J4R165G50-SAD16E108-C

80J4R165G50-SAD16E108-C

UGC DOR6922418
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,230.00 CAD - $3,230.00 CAD
$3,230.00 CAD
$3,230.00 CAD - $3,230.00 CAD
$3,230.00 CAD

Vendu en lots de : 1

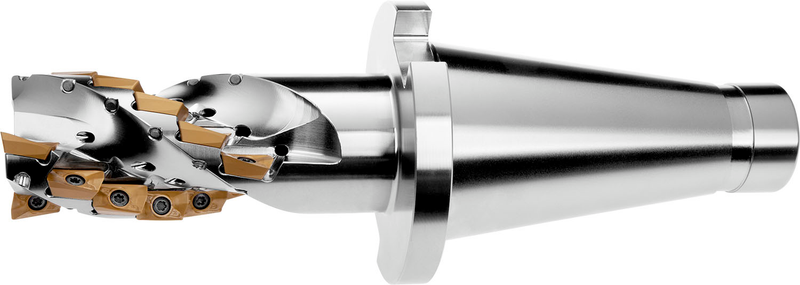

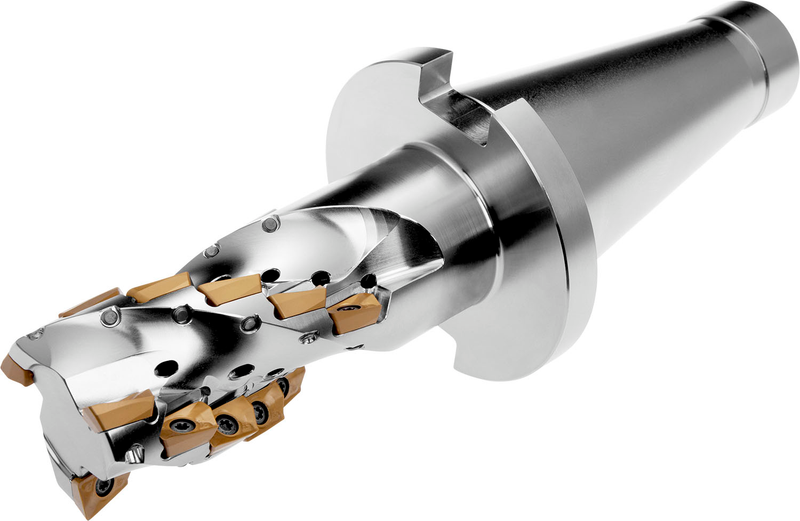

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 32 plaquettes simple face ADMX 16 ou ADEX 16, diamètre de coupe de 80 mm avec angle d'attaque de 90° et cône SK 50 selon ISO 297, longueur utile de 108 mm et longueur totale de 292 mm, arrosage par l'intérieur et pas différentiel pour le surfaçage à épaulement profond et le fraisage de gorges profondes avec une profondeur de coupe maximale de 108 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J4R165G50-SAD16E108-C
Product Number6922418
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)108.0 mm

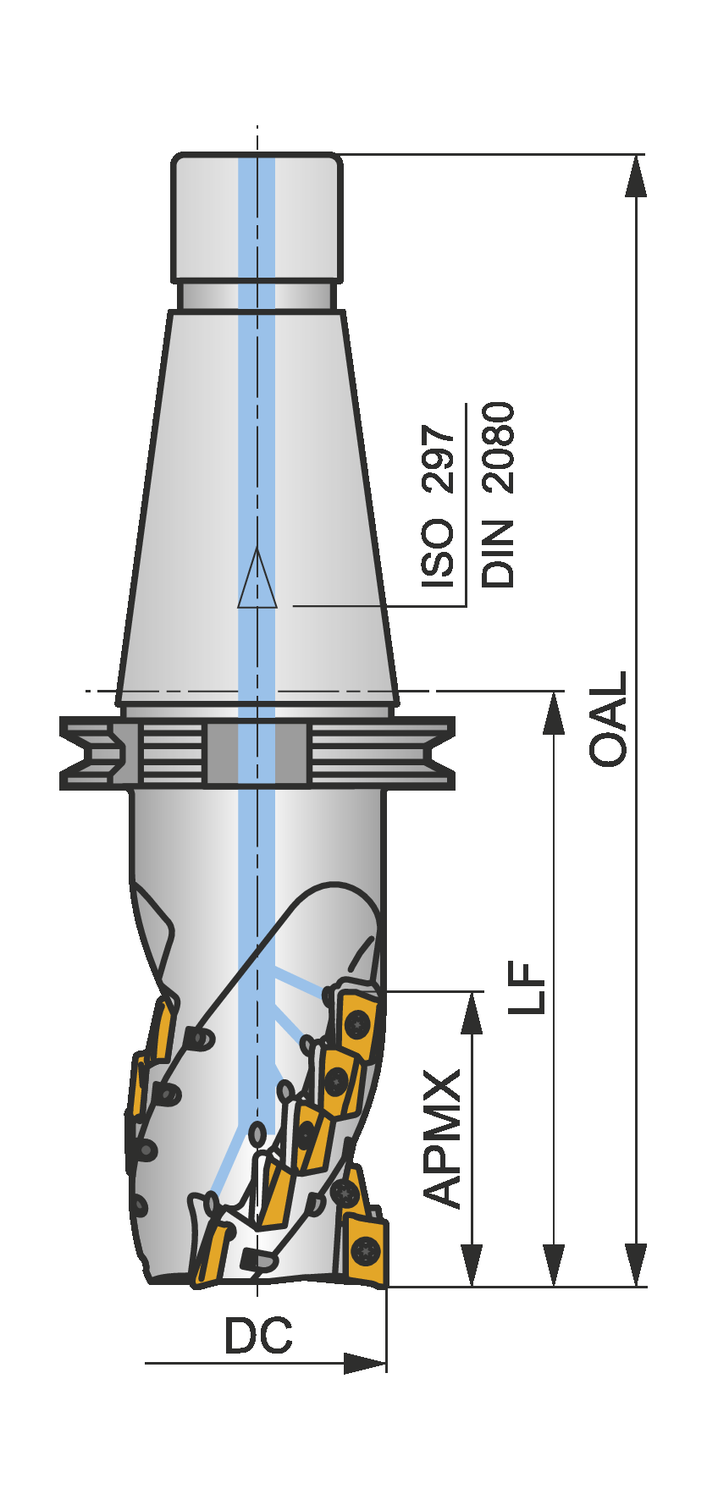

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)11.496"
Overall Length — mm (OAL)292.0 mm
Functional Length — mm (LF)165.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbre DIN 2080-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922418
EAN3603603072152
File Type Download
80J4R165G50-SAD16E108-C — 3D Model STP Download
80J4R165G50-SAD16E108-C — 2D Model DXF Download
80J4R165G50-SAD16E108-C — Line Drawing PDF Download
