80J4R165H50-SAD16E108-C
80J4R165H50-SAD16E108-C
80J4R165H50-SAD16E108-C

80J4R165H50-SAD16E108-C

UGC DOR6922419
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,230.00 CAD - $3,230.00 CAD
$3,230.00 CAD
$3,230.00 CAD - $3,230.00 CAD
$3,230.00 CAD

Vendu en lots de : 1

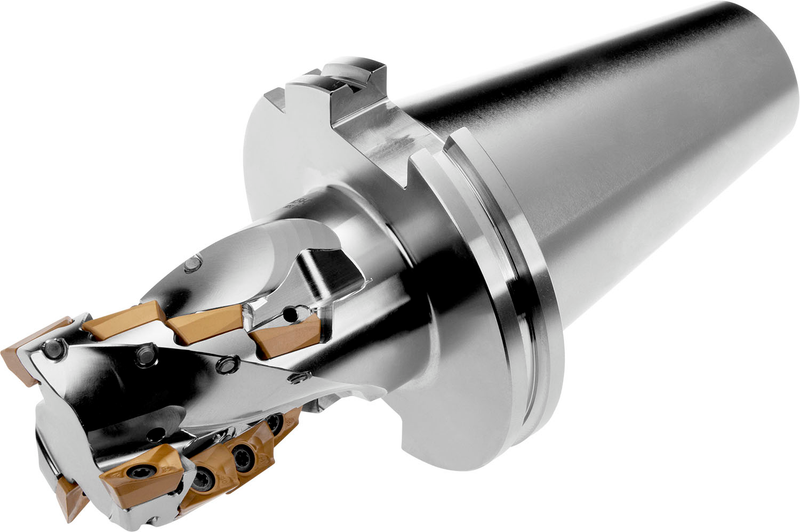

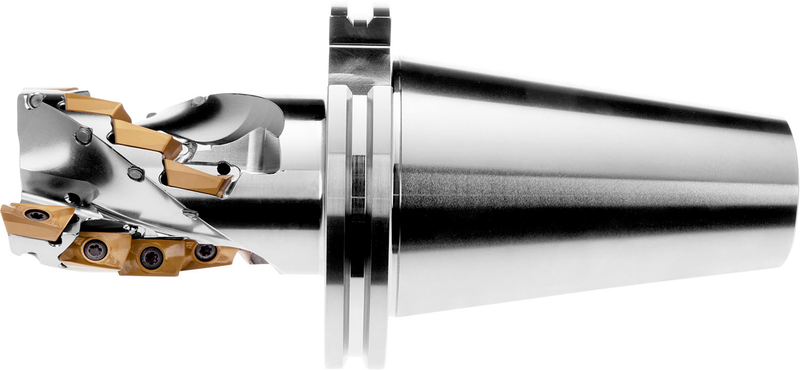

Fraise à épaulement et à coupe étendue avec géométrie positive/négative qui utilise 32 plaquettes simple face ADMX 16 ou ADEX 16, diamètre de coupe de 80 mm avec angle d'approche de 90° et queue conique SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle de 108 mm et longueur totale de 257 mm, arrosage central et pas différentiel pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 108 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J4R165H50-SAD16E108-C
Product Number6922419
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)108.0 mm

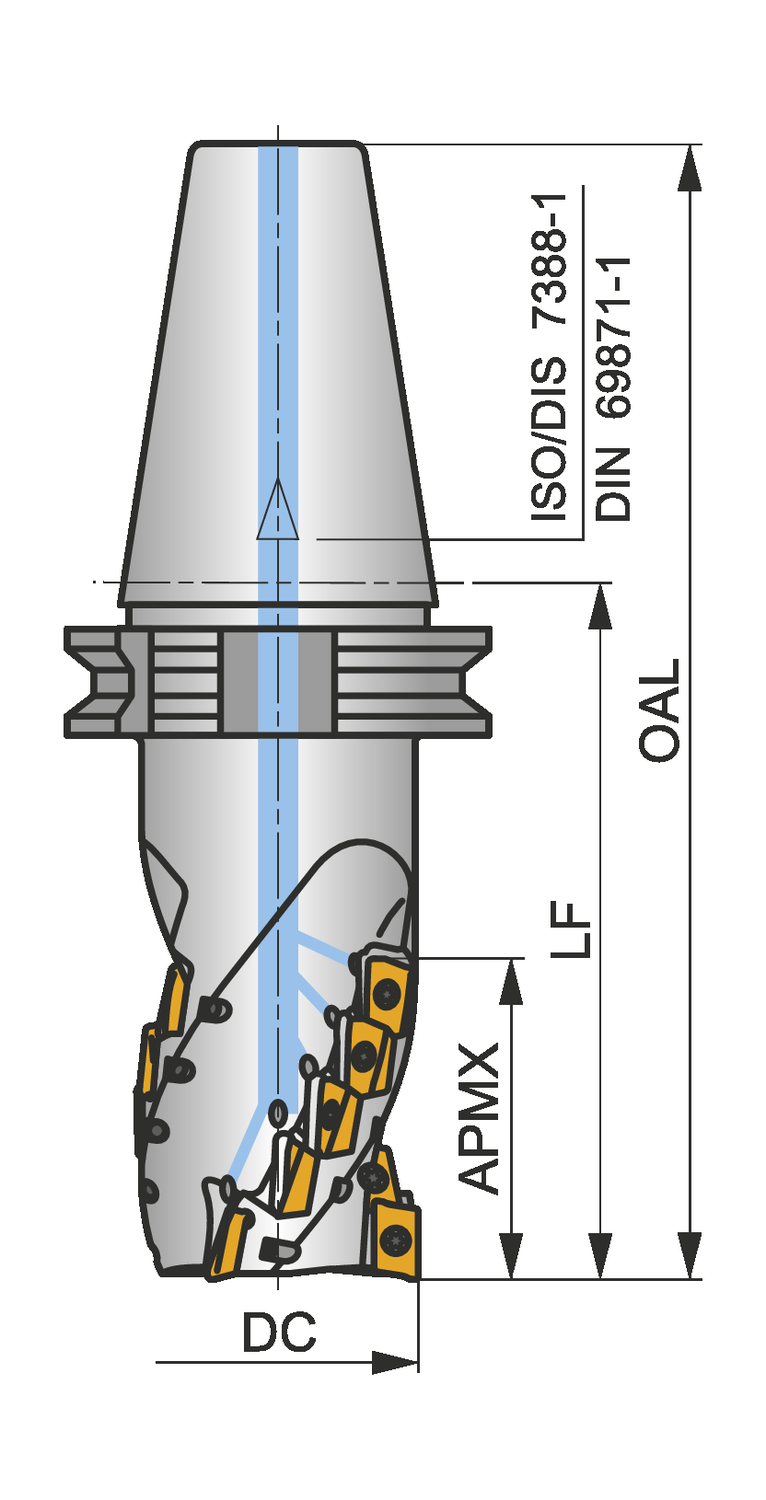

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)10.118"
Overall Length — mm (OAL)257.0 mm
Functional Length — mm (LF)165.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankCône DIN 69871-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922419
EAN3603603072169
File Type Download
80J4R165H50-SAD16E108-C — 3D Model STP Download
80J4R165H50-SAD16E108-C — 2D Model DXF Download
80J4R165H50-SAD16E108-C — Line Drawing PDF Download
