80J4R165X50-SAD16E95-C
80J4R165X50-SAD16E95-C
80J4R165X50-SAD16E95-C

80J4R165X50-SAD16E95-C

UGC DOR6922420
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,713.00 CAD - $2,713.00 CAD
$2,713.00 CAD
$2,713.00 CAD - $2,713.00 CAD
$2,713.00 CAD

Vendu en lots de : 1

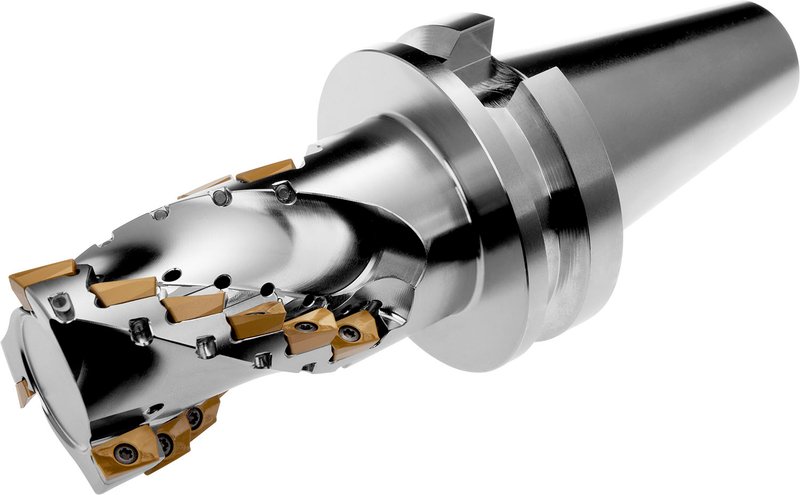

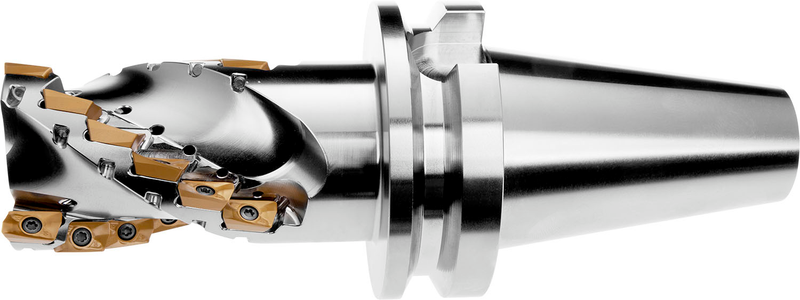

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 28 plaquettes simple face ADMX 16 ou ADEX 16, diamètre de coupe 80mm avec angle d'attaque de 90° et cône BT 50 selon JIS B 6339, longueur fonctionnelle de 95mm et longueur totale de 267mm, arrosage centralisé et pas différentiel pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J4R165X50-SAD16E95-C
Product Number6922420
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

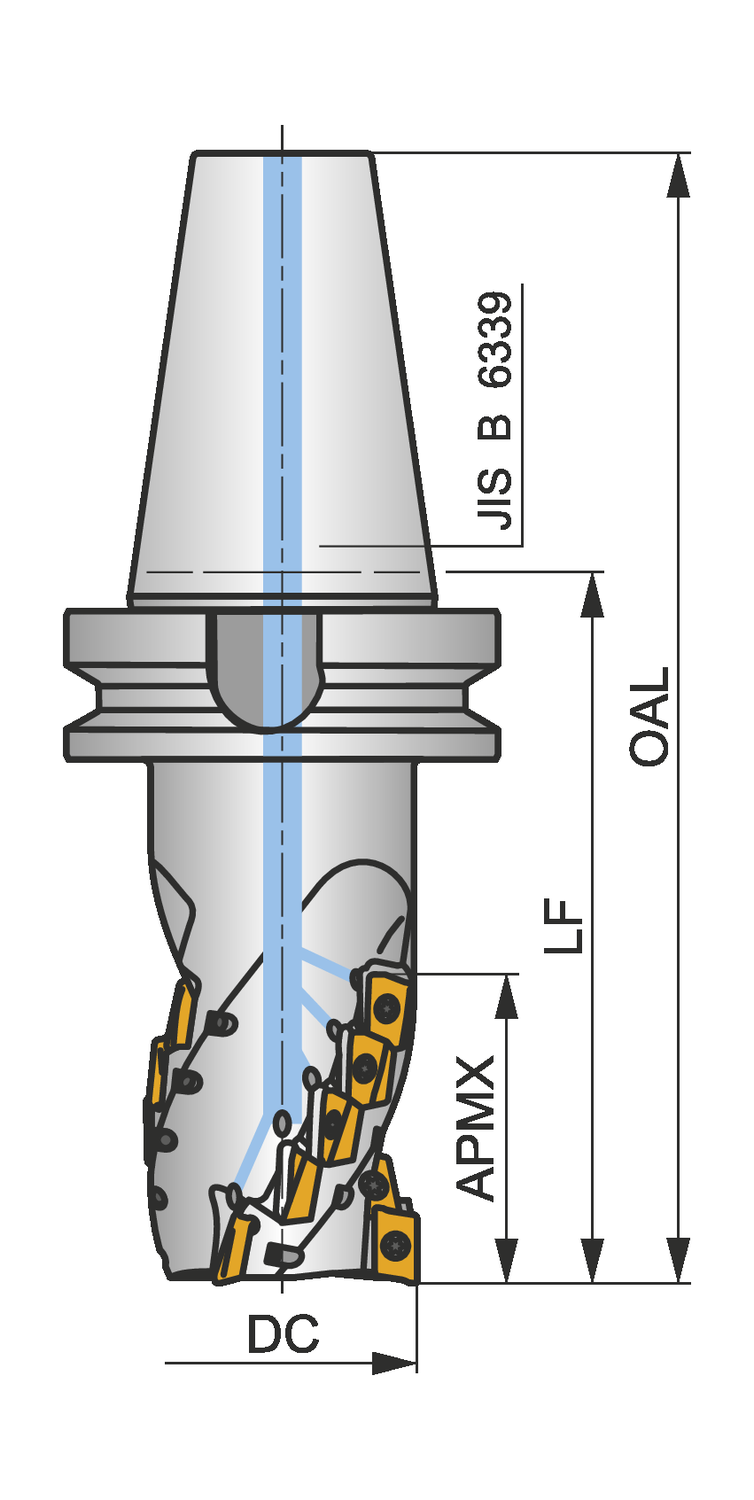

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)10.512"
Overall Length — mm (OAL)267.0 mm
Functional Length — mm (LF)165.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankArbre MAS BT (JIS-B-6339)
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922420
EAN3603603072176
File Type Download
80J4R165X50-SAD16E95-C — 3D Model STP Download
80J4R165X50-SAD16E95-C — 2D Model DXF Download
80J4R165X50-SAD16E95-C — Line Drawing PDF Download
