80T04R-S90AD16E80-C
80T04R-S90AD16E80-C
80T04R-S90AD16E80-C

80T04R-S90AD16E80-C

UGC DOR6922422
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,869.00 CAD - $2,869.00 CAD
$2,869.00 CAD
$2,869.00 CAD - $2,869.00 CAD
$2,869.00 CAD

Vendu en lots de : 1

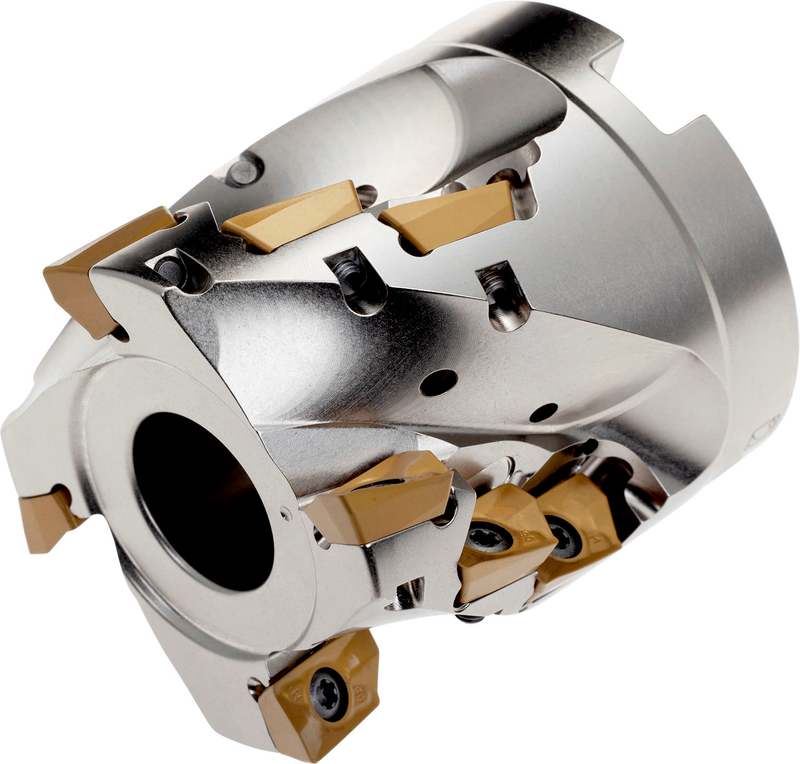

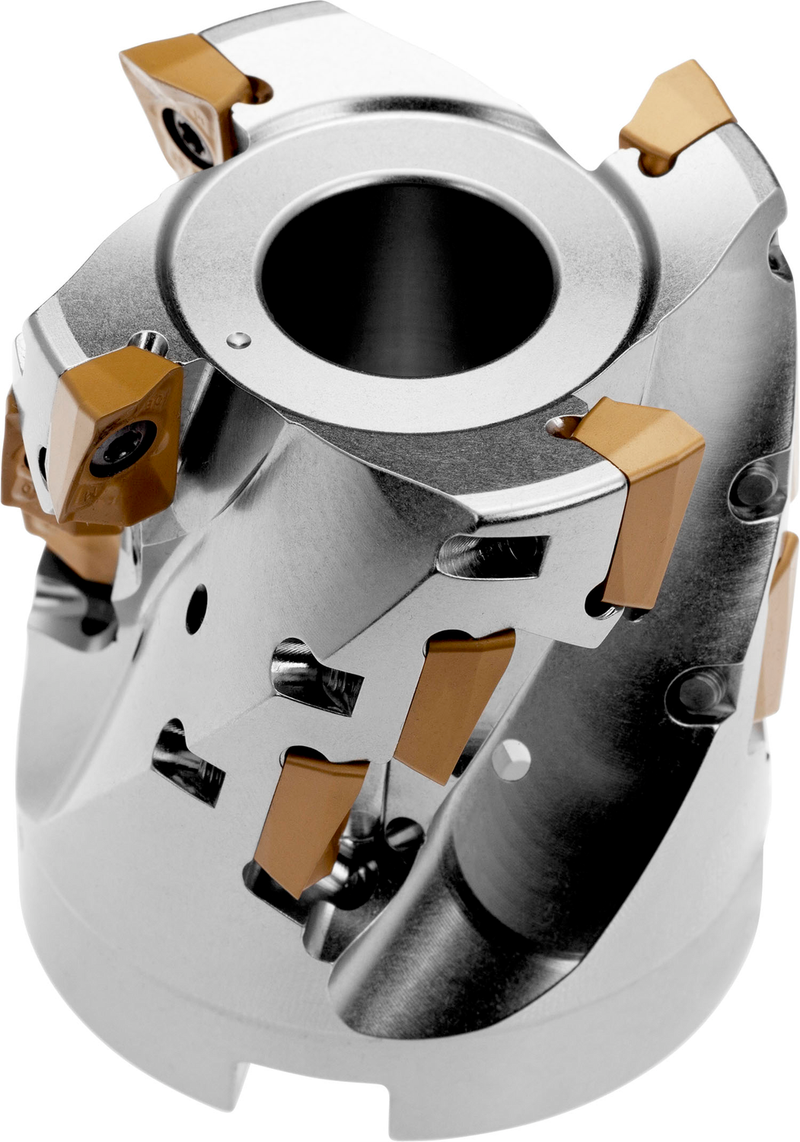

Fraise à épaule à queue longue à géométrie positive/négative qui utilise 24 plaquettes simple face ADMX 16 ou ADEX 16, diamètre de coupe 80 mm avec angle d'attaque de 90° et alésage de raccordement de 32 mm selon DIN 8030, longueur fonctionnelle de 80 mm et longueur en porte-à-faux de 115 mm, arrosage central et pas différentiel pour le fraisage d'épaulements profonds et de rainures profondes avec une profondeur de coupe maximale de 80 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80T04R-S90AD16E80-C
Product Number6922422
Product FamilyJ(T)-SAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)80.0 mm

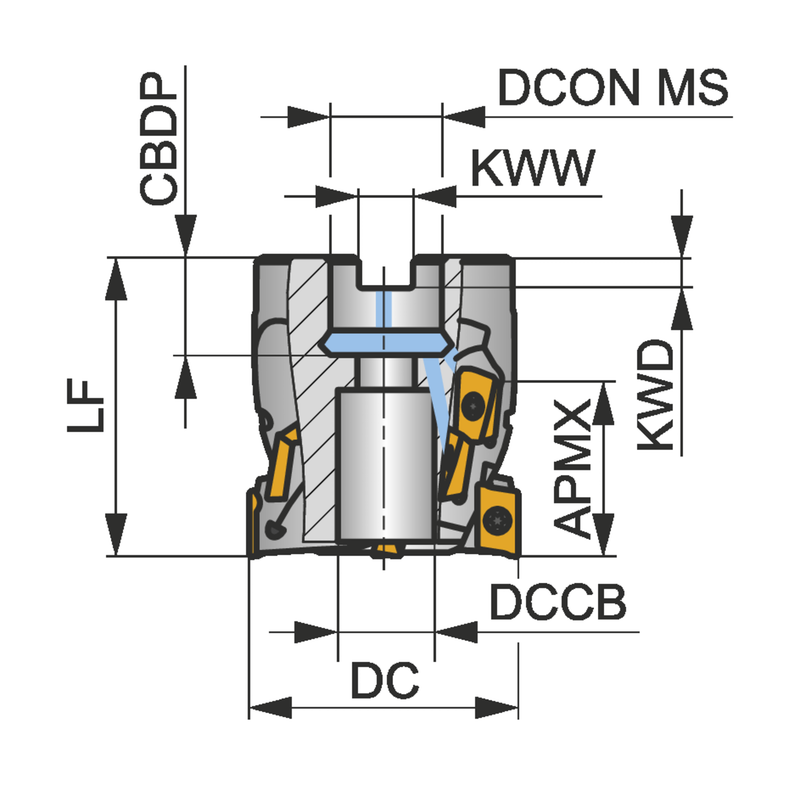

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)115.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankFraise cloche DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922422
EAN3603603072190
File Type Download
80T04R-S90AD16E80-C — 3D Model STP Download
80T04R-S90AD16E80-C — 2D Model DXF Download
80T04R-S90AD16E80-C — Line Drawing PDF Download
