63A04R-S45OE06Z-C
63A04R-S45OE06Z-C
63A04R-S45OE06Z-C

63A04R-S45OE06Z-C

UGC DOR6922500
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$827.00 CAD - $827.00 CAD
$827.00 CAD
$827.00 CAD - $827.00 CAD
$827.00 CAD

Vendu en lots de : 1

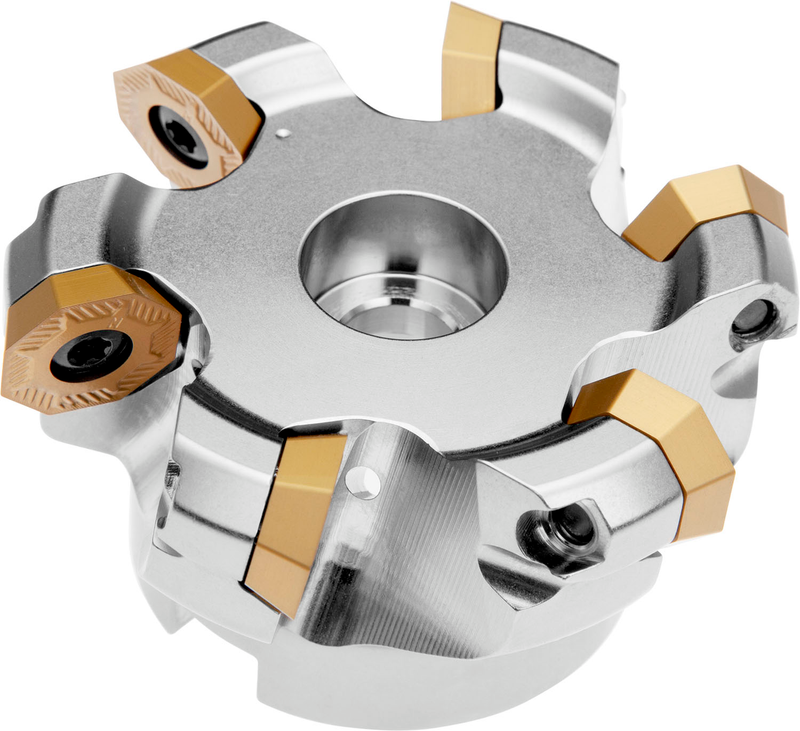

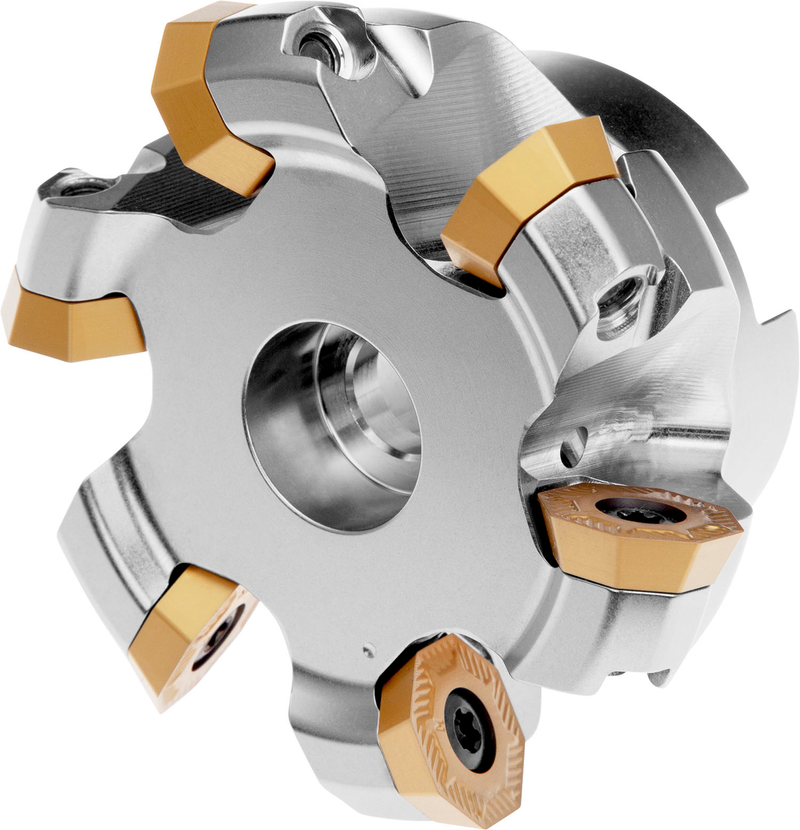

Fraise à surfacer avec géométrie double positive qui utilise 4 inserts simple face de type OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 63 à 73,2mm maximum avec un angle d'attaque de 43° et un alésage de connexion de 22mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,3 (9,9)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A04R-S45OE06Z-C
Product Number6922500
Product FamilySOE06Z
Insert Geometry
Depth of Cut Max — mm (APMX)3.3 mm

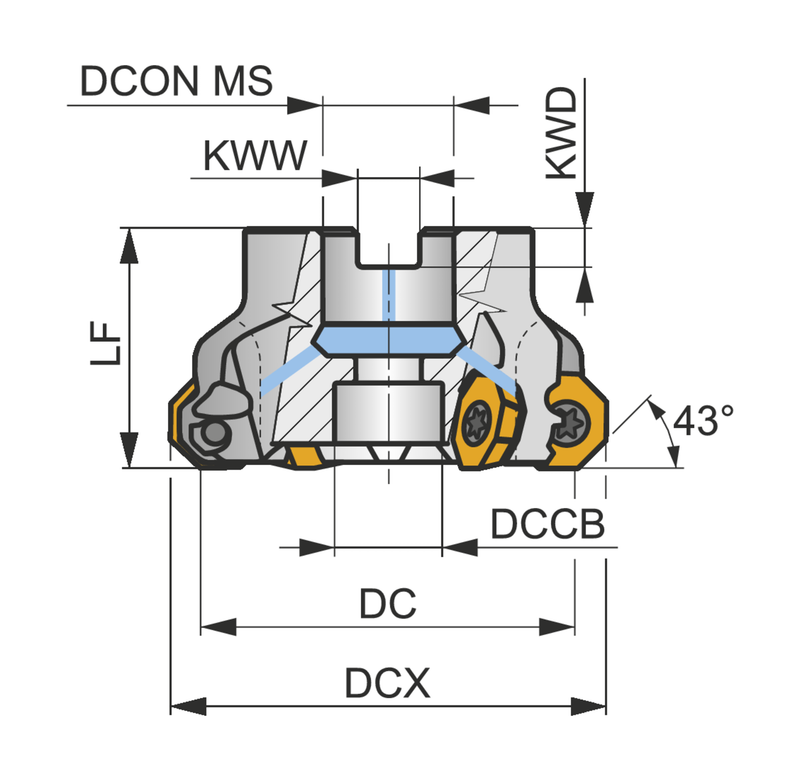

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSOE06Z
ShankFraise-cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922500
EAN3603603072220
File Type Download
63A04R-S45OE06Z-C — 3D Model STP Download
63A04R-S45OE06Z-C — 2D Model DXF Download
63A04R-S45OE06Z-C — Line Drawing PDF Download
