80A05R-S45OE06Z-C
80A05R-S45OE06Z-C
80A05R-S45OE06Z-C

80A05R-S45OE06Z-C

UGC DOR6922502
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,037.00 CAD - $1,037.00 CAD
$1,037.00 CAD
$1,037.00 CAD - $1,037.00 CAD
$1,037.00 CAD

Vendu en lots de : 1

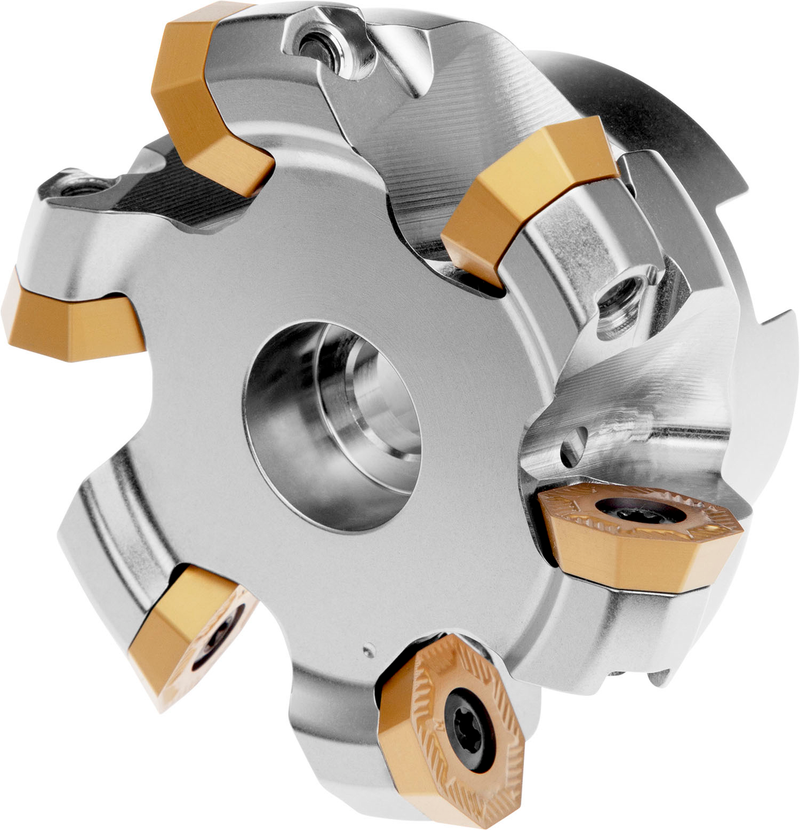

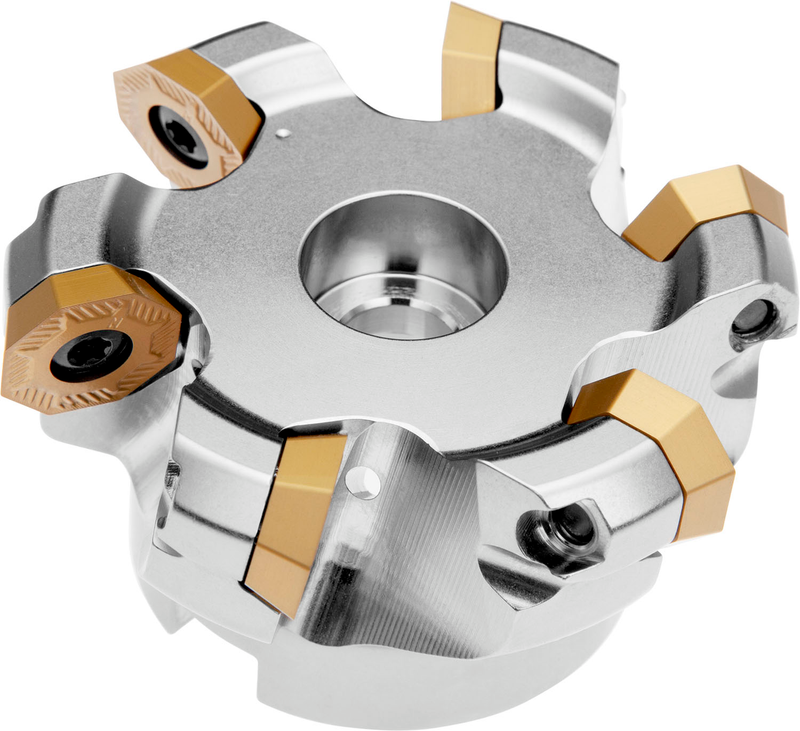

Fraise à surfacer dotée d'une géométrie doublement positive qui utilise 5 plaquettes simple face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., avec un diamètre de coupe de 80 à 90,2 mm maximum, un angle d'attaque de 43° et un alésage de raccordement de 27 mm selon la norme DIN 8030-A, une longueur de dépassement de 50 mm, un arrosage interne et un pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,3 (9,9) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A05R-S45OE06Z-C
Product Number6922502
Product FamilySOE06Z
Insert Geometry
Depth of Cut Max — mm (APMX)3.3 mm

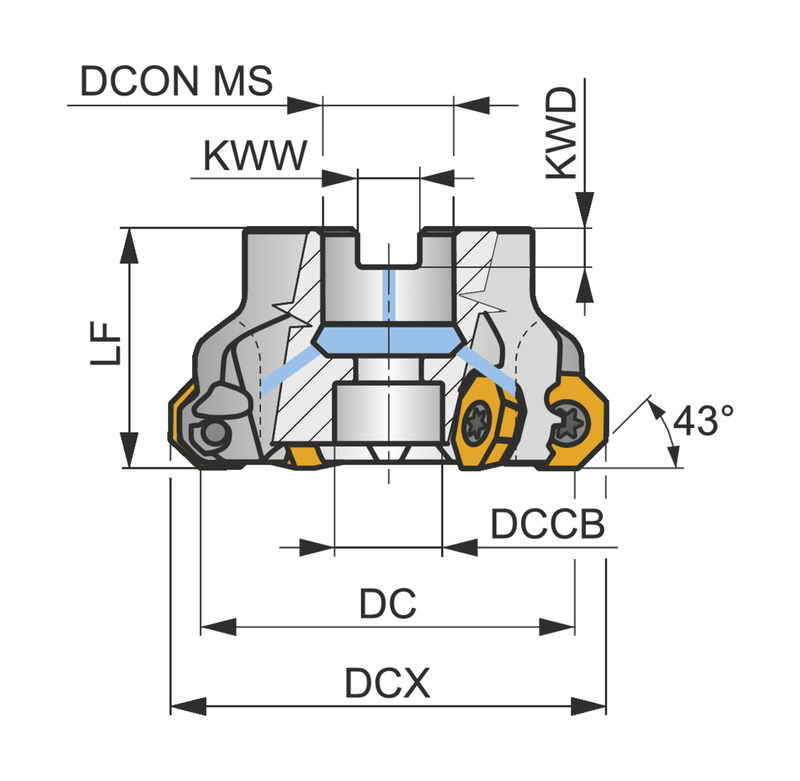

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSOE06Z
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922502
EAN3603603072244
File Type Download
80A05R-S45OE06Z-C — 3D Model STP Download
80A05R-S45OE06Z-C — 2D Model DXF Download
80A05R-S45OE06Z-C — Line Drawing PDF Download
