70A06R-S45OE06Z-C
70A06R-S45OE06Z-C
70A06R-S45OE06Z-C

70A06R-S45OE06Z-C

UGC DOR6922509
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$929.00 CAD - $929.00 CAD
$929.00 CAD
$929.00 CAD - $929.00 CAD
$929.00 CAD

Vendu en lots de : 1

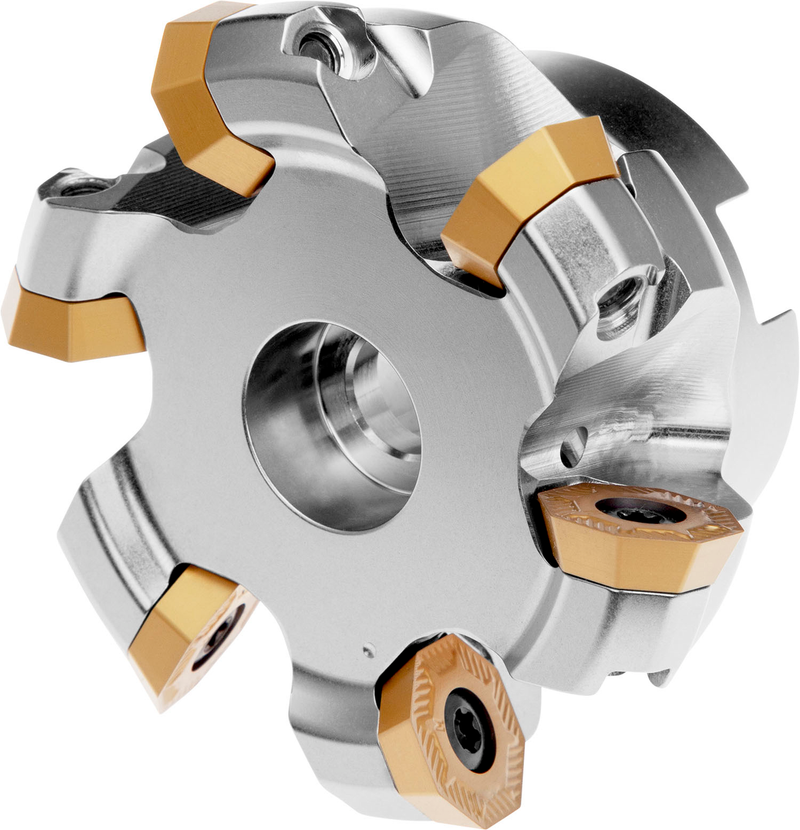

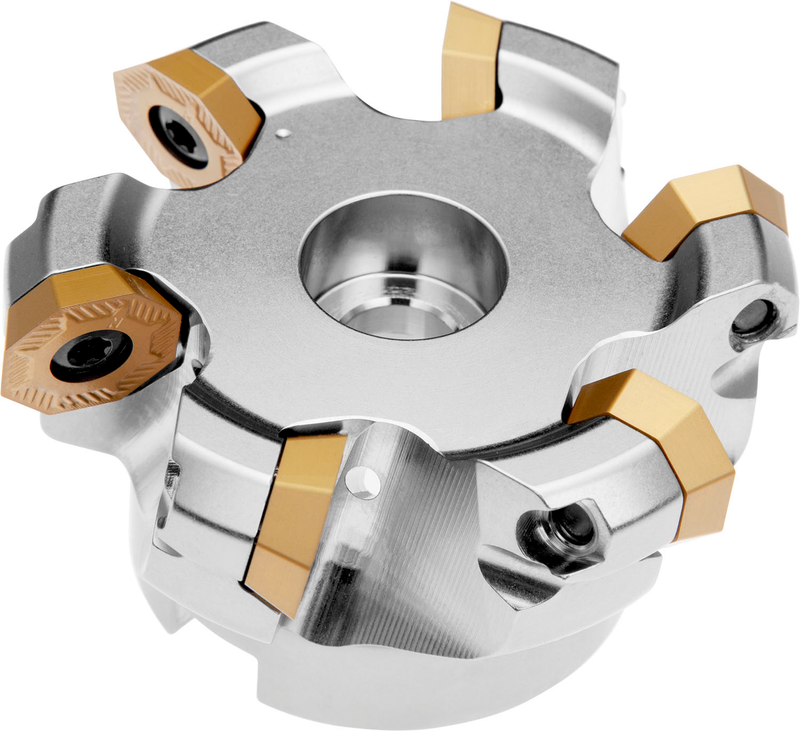

Fraise à surfacer avec géométrie double positive qui utilise 6 plaquettes simple face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 70 à 80 mm maximum avec un angle d'attaque de 43° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage centralisé et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,3 (9,9) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)70A06R-S45OE06Z-C
Product Number6922509
Product FamilySOE06Z
Insert Geometry
Depth of Cut Max — mm (APMX)3.3 mm

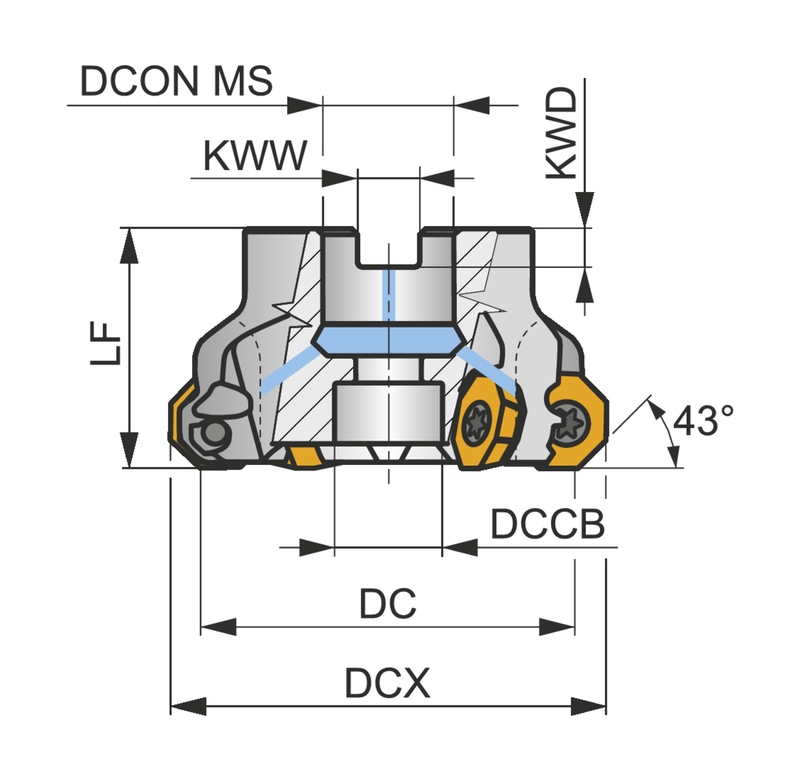

Dimensions
Cutting Diameter — in (DC)2.756"
Cutting Diameter — mm (DC)70.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSOE06Z
ShankFraise-mère DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922509
EAN3603603072312
File Type Download
70A06R-S45OE06Z-C — 3D Model STP Download
70A06R-S45OE06Z-C — 2D Model DXF Download
70A06R-S45OE06Z-C — Line Drawing PDF Download
