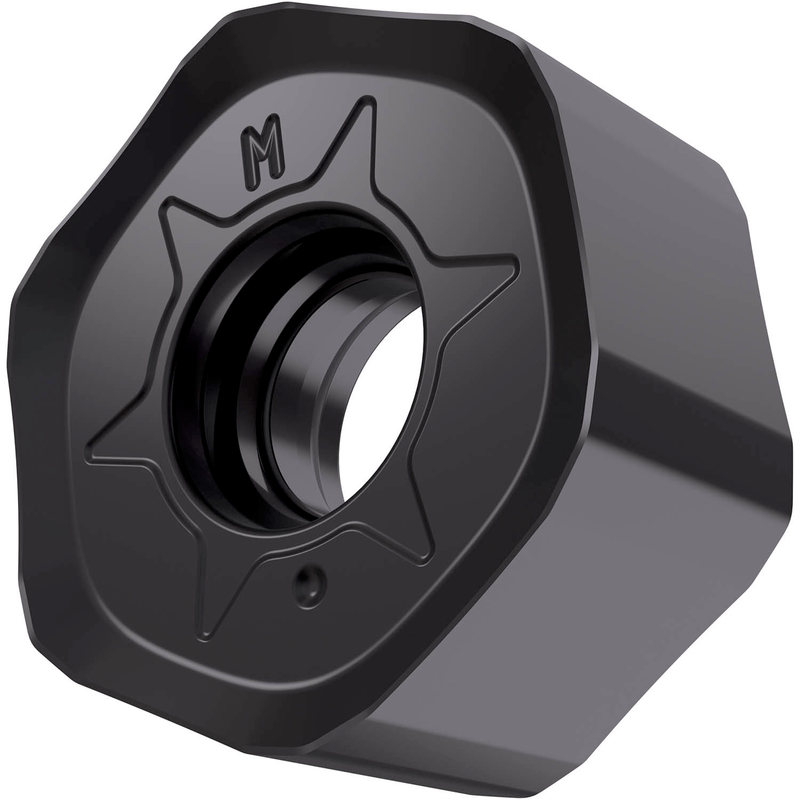

HNGX 0604ANSN-M:M8310
HNGX 0604ANSN-M:M8310

HNGX 0604ANSN-M:M8310

UGC DOR6922526
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.73 CAD - $27.73 CAD
$27.73 CAD
$27.73 CAD - $27.73 CAD
$27.73 CAD

Vendu en lots de : 10

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3 mm, avec rayon de coin de 0.8 mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec des arêtes de coupe et une facette arrondies, en carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10 et K01-K10 pour l'usinage de l'acier et de la fonte avec les fraises de surfaçage SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-M:M8310
GradeM8310
Chipbreaker (CBMD)M
Product Number6922526
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6922526
EAN3603603072480
File Type Download
HNGX 0604ANSN-M:M8310 — Line Drawing PDF Download
