HNGX 0906ANSN-F:M8310
HNGX 0906ANSN-F:M8310

HNGX 0906ANSN-F:M8310

UGC DOR6922528
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

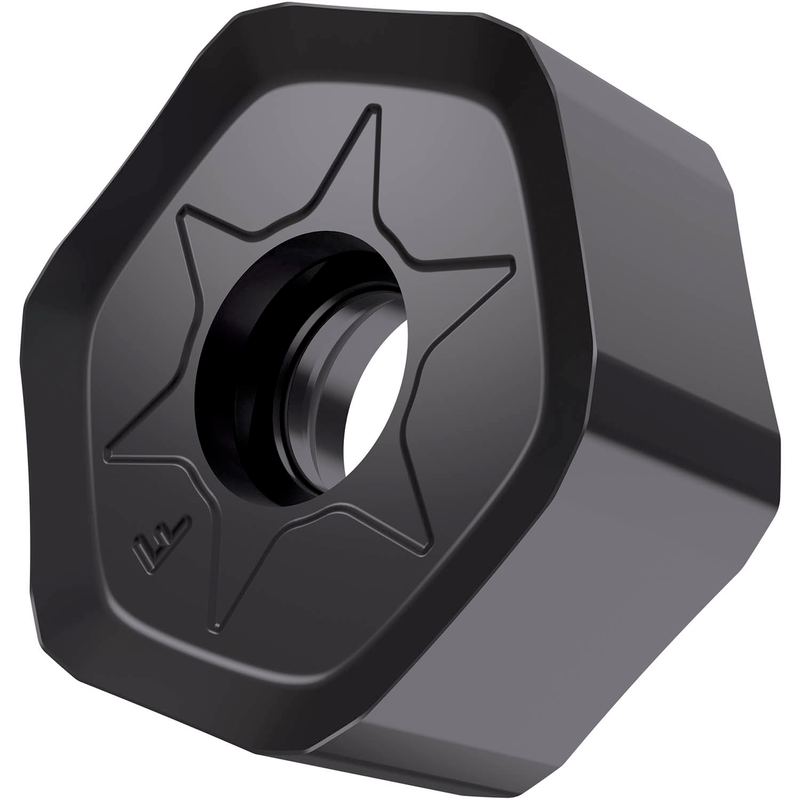

Plaquette de fraisage double face HNGX 0906, hexagonale pour une profondeur de coupe maximale de 0,1969", avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-G et une géométrie F avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co à grains fins revêtu PVD M8310 dans la gamme de qualités ISO P01-P10 pour l'usinage de l'acier avec des fraises à surfacer SHN09C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0906ANSN-F:M8310
GradeM8310
Chipbreaker (CBMD)F
Product Number6922528
Product FamilyHNGX 09
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.65"
Inscribed Circle Dia. — mm (IC)16.5 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6922528
EAN3603603072503
File Type Download
HNGX 0906ANSN-F:M8310 — Line Drawing PDF Download
