LC 1610-KP:M8310
LC 1610-KP:M8310

LC 1610-KP:M8310

UGC DOR6922536
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.46 CAD - $61.46 CAD
$61.46 CAD
$61.46 CAD - $61.46 CAD
$61.46 CAD

Vendu en lots de : 10

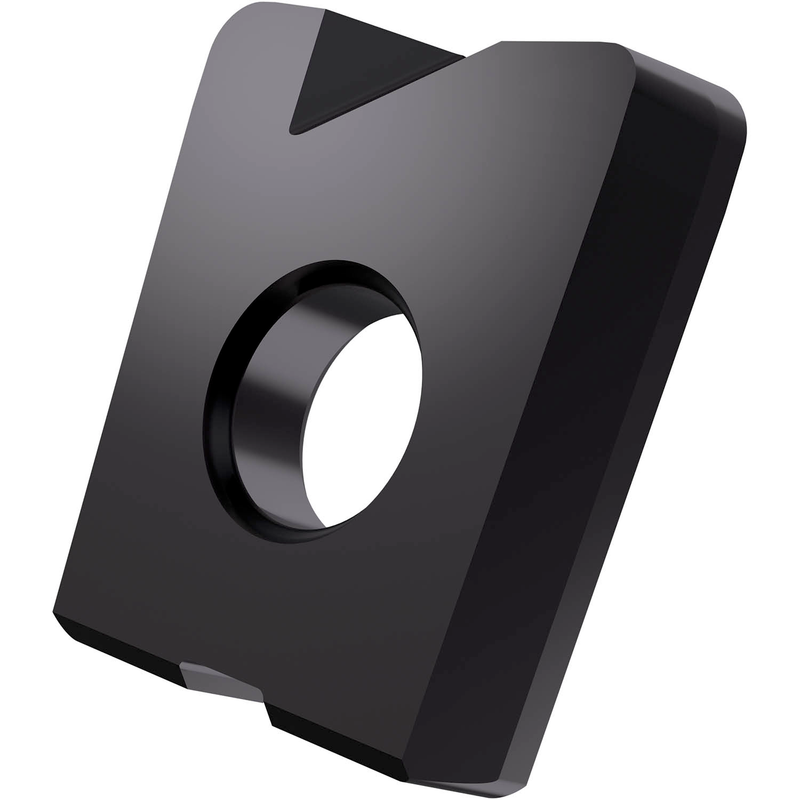

Plaquette à copier torique d'un diamètre de 15,999 mm et de rayons de coin de 1,000 mm pour une profondeur de coupe maximale de 1,000 mm, géométrie KP et carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LC 1610-KP:M8310
GradeM8310
Chipbreaker (CBMD)PC
Product Number6922536
Product FamilyCL
Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6922536
EAN3603603072589
File Type Download

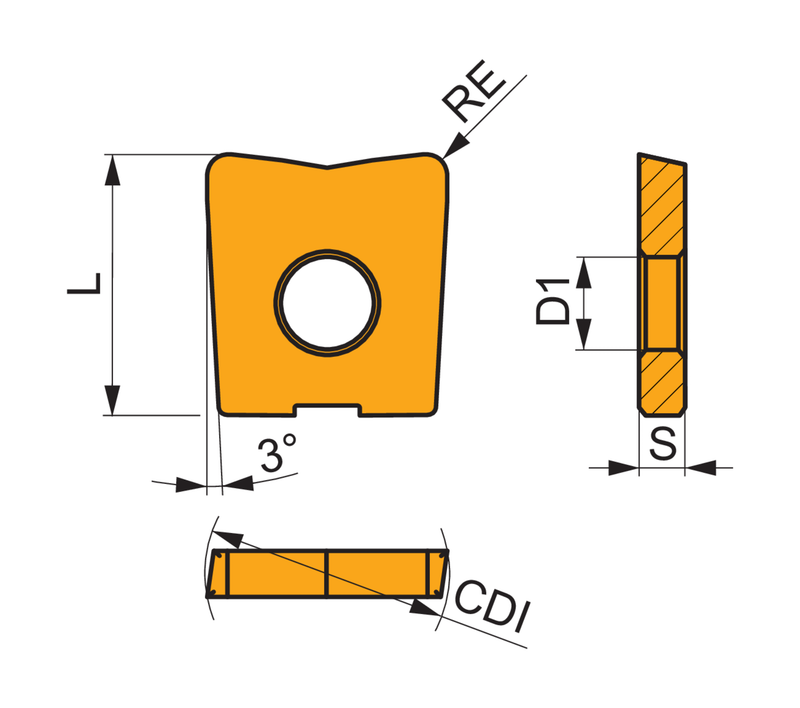

LC 1610-KP:M8310 — Line Drawing PDF Download
