LC 2010-KP:M8310
LC 2010-KP:M8310

LC 2010-KP:M8310

UGC DOR6922538
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.43 CAD - $69.43 CAD
$69.43 CAD
$69.43 CAD - $69.43 CAD
$69.43 CAD

Vendu en lots de : 10

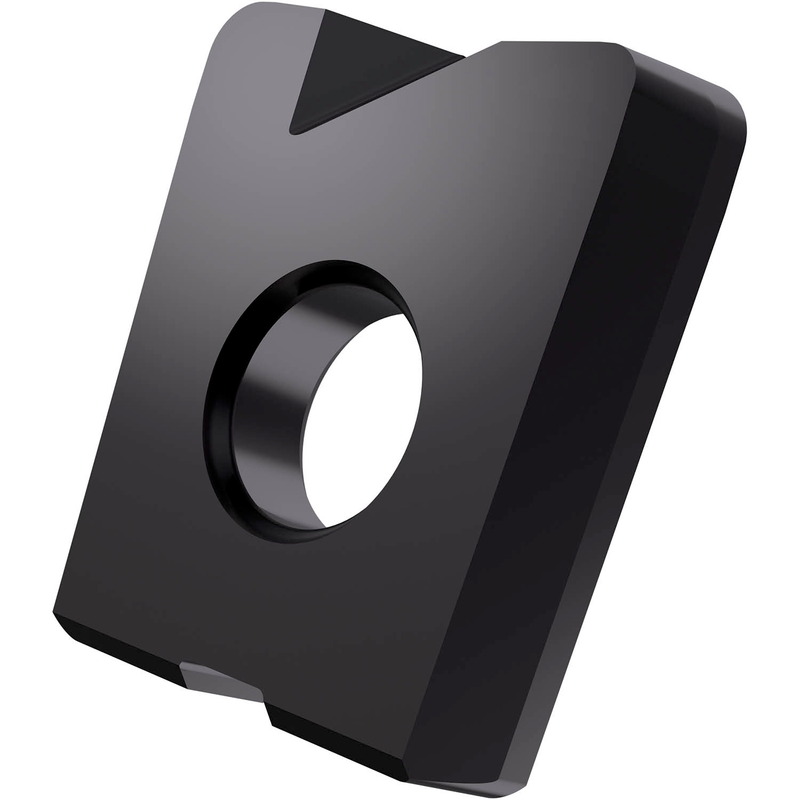

Plaquette torique de copiage de .7874" de diamètre avec des rayons de coin de .0394" pour une profondeur de coupe maximale de .0394", géométrie KP et carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LC 2010-KP:M8310
GradeM8310
Chipbreaker (CBMD)PC
Product Number6922538
Product FamilyCL

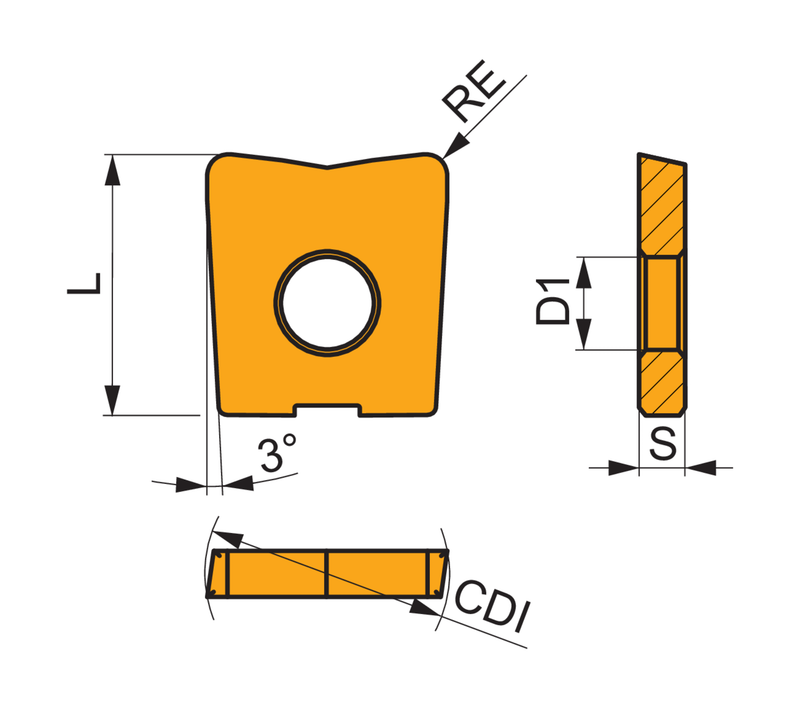

Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6922538
EAN3603603072602
File Type Download
LC 2010-KP:M8310 — Line Drawing PDF Download
