RC 12:M8310
RC 12:M8310

RC 12:M8310

UGC DOR6922547
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.60 CAD - $51.60 CAD
$51.60 CAD
$51.60 CAD - $51.60 CAD
$51.60 CAD

Vendu en lots de : 10

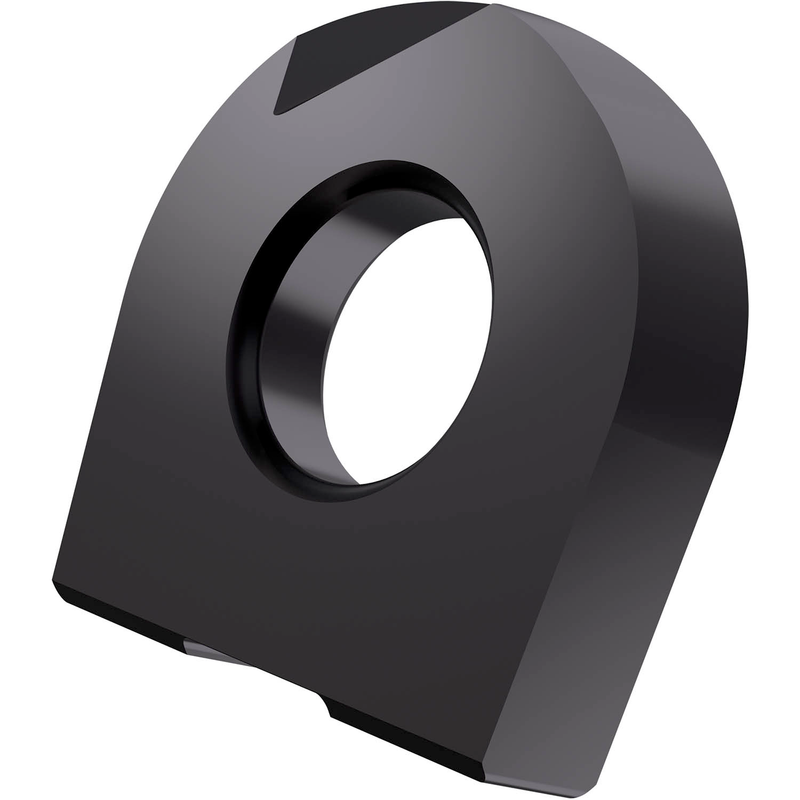

Plaquette à copier à rayon de nez de diamètre 12 mm pour une profondeur de coupe maximale de 1,2 mm, en carbure WC-Co à grain fin revêtu PVD M8310, dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 12:M8310
GradeM8310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922547
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Depth of Cut Max — in (APMX)0.047"
Depth of Cut Max — mm (APMX)1.2 mm
Tool Information
Reference Numbers
EDP Number6922547
EAN3603603072695
File Type Download
RC 12:M8310 — Line Drawing PDF Download
