CR 25:M8310
CR 25:M8310

CR 25:M8310

UGC DOR6922550
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.57 CAD - $86.57 CAD
$86.57 CAD
$86.57 CAD - $86.57 CAD
$86.57 CAD

Vendu en lots de : 10

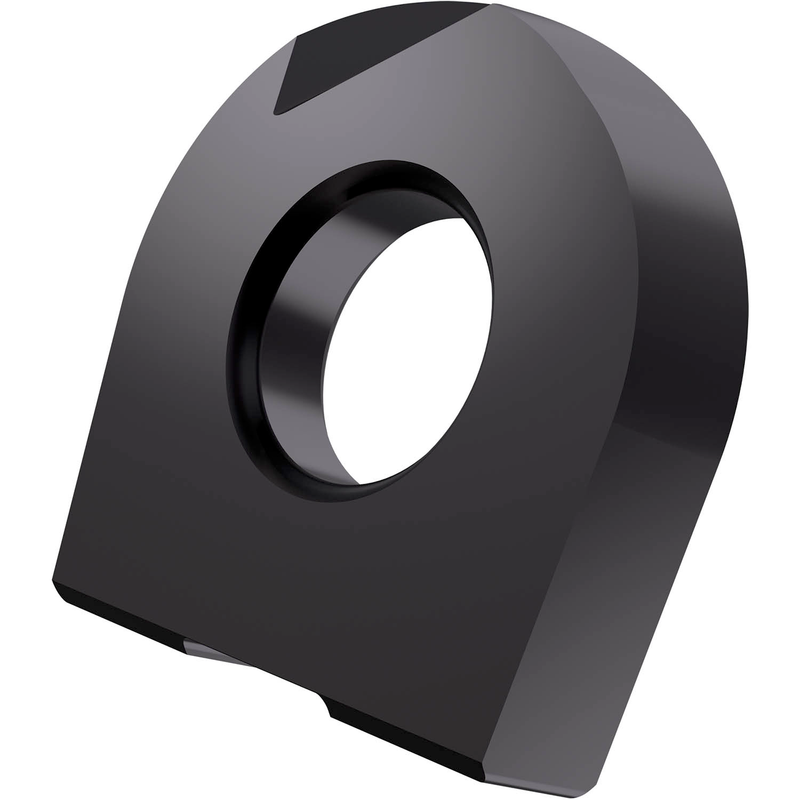

Plaquette à copier à rayon sphérique d'un diamètre de 24,99 mm pour une profondeur de coupe maximale de 2,5 mm, en carbure WC-Co à grain fin avec revêtement PVD M8310, dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15, pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 25:M8310
GradeM8310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922550
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.157"
Insert Thickness — mm (S)4.0 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6922550
EAN3603603072725
File Type Download
CR 25:M8310 — Line Drawing PDF Download
