PNMU 1308DNSR-M:M9315
PNMU 1308DNSR-M:M9315

PNMU 1308DNSR-M:M9315

UGC DOR6922558
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.74 CAD - $56.74 CAD
$56.74 CAD
$56.74 CAD - $56.74 CAD
$56.74 CAD

Vendu en lots de : 5

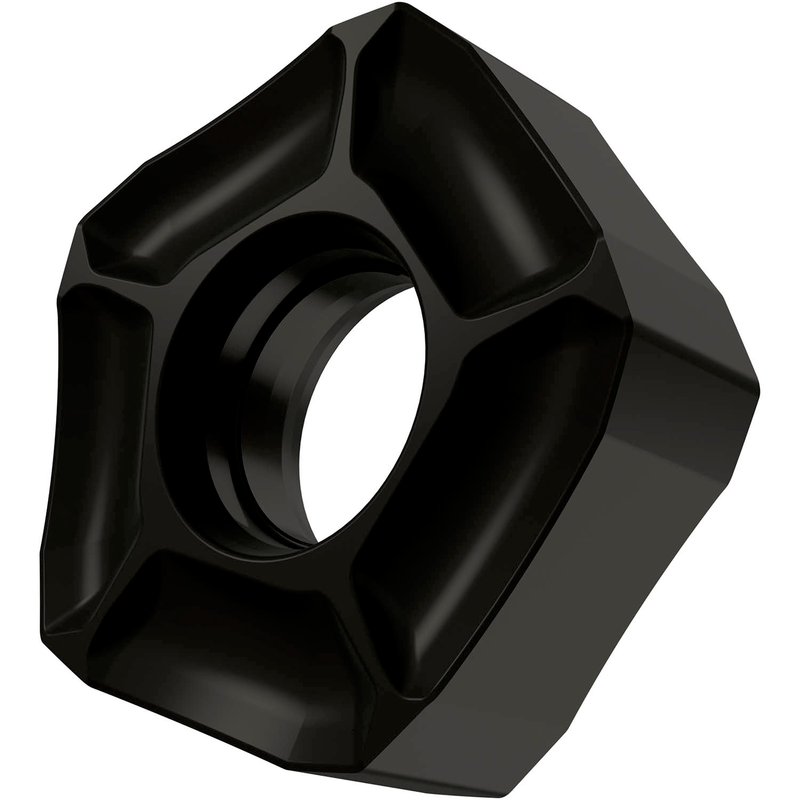

Plaquette de fraisage double-face PNMU 1308 avec brise-copeaux, pentagonale pour une profondeur de coupe maximale de 9,99 mm, avec rayon de bec ", une précision de positionnement selon la classe de tolérance ISO-M et géométrie M avec arêtes de coupe et facette arrondies, carbure WC-Co revêtu M9315 MT-CVD dans la gamme de nuances ISO P05-P25 pour l'usinage de l'acier avec des fraises à surfacer SPN13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PNMU 1308DNSR-M:M9315
GradeM9315
Chipbreaker (CBMD)M
Product Number6922558
Product FamilyPNMU 13

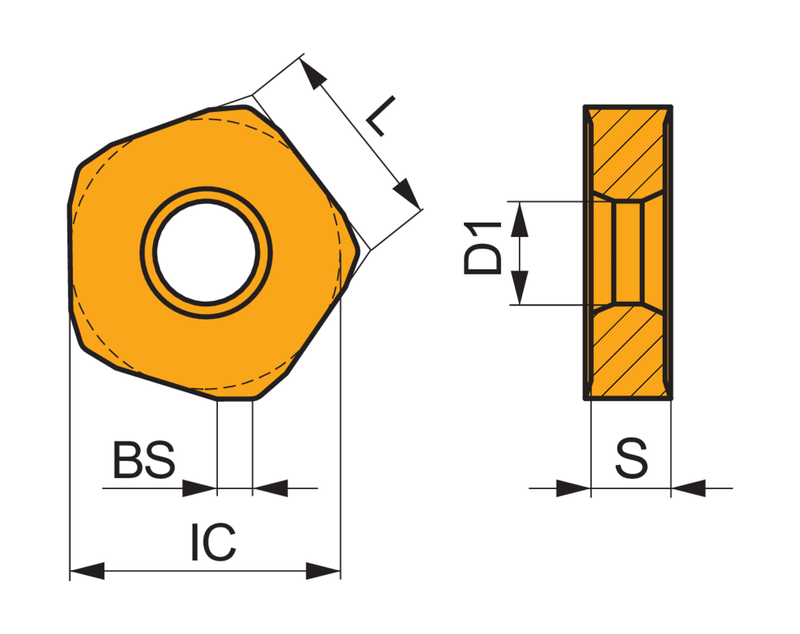

Insert Geometry
Insert DesignUPNM
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.961"
Inscribed Circle Dia. — mm (IC)24.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6922558
EAN3603603072800
File Type Download
PNMU 1308DNSR-M:M9315 — Line Drawing PDF Download
