SNMG 544-R:T5315
SNMG 544-R:T5315

SNMG 544-R:T5315

UGC DOR6922761
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

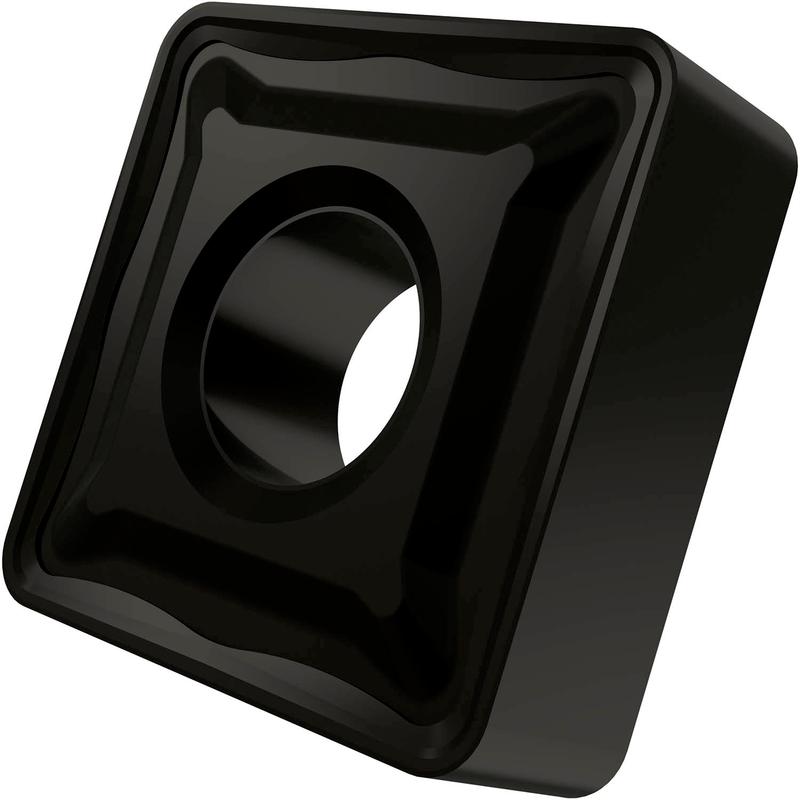

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux R, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 544-R:T5315
Product Name (ISO)SNMG 150616E-R:T5315
GradeT5315
Chipbreaker (CBMD)R
Product Number6922761
Product FamilyGNMS

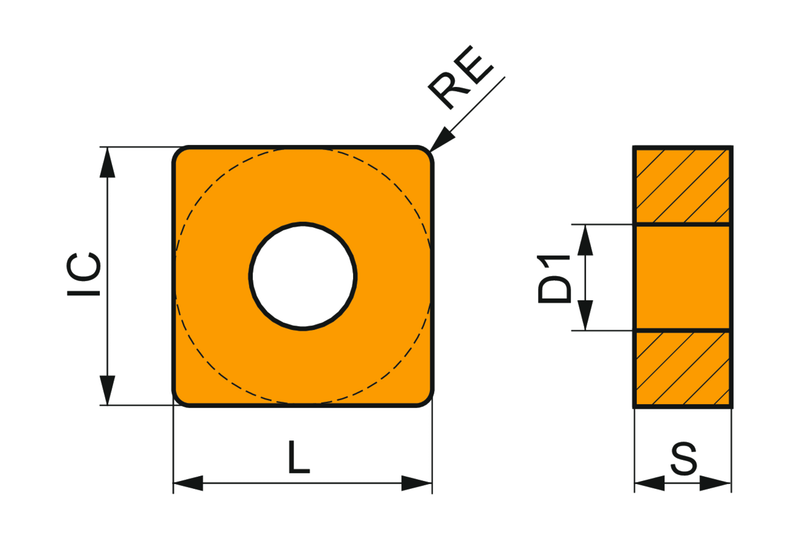

Insert Geometry
Insert DesignMNCS
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6922761
EAN3603603075870
File Type Download
SNMG 544-R:T5315 — Line Drawing PDF Download
