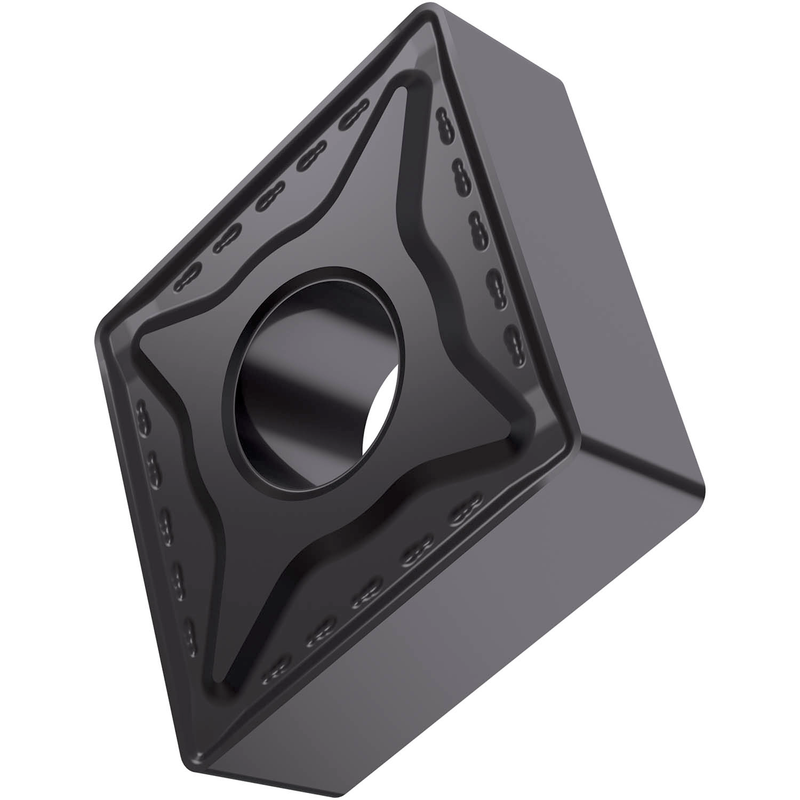

CNMG 644-RM:T6310
CNMG 644-RM:T6310

CNMG 644-RM:T6310

UGC DOR6922775
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les gammes ISO P01 - P15/M01 - M15 et K05 - K20, pour l'usinage moyen à lourd des aciers, aciers inoxydables et fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 644-RM:T6310
Product Name (ISO)CNMG 190616E-RM:T6310
GradeT6310
Chipbreaker (CBMD)RM
Product Number6922775
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6922775
EAN3603603076013
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 644-RM:T6310 — Line Drawing PDF Download
