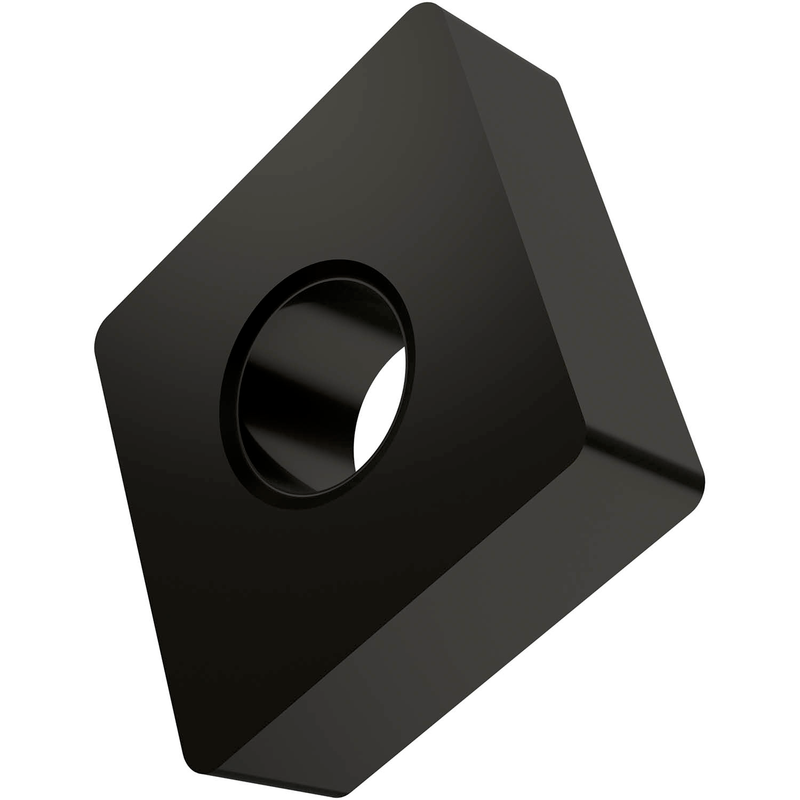

CNMA 543:T5315
CNMA 543:T5315

CNMA 543:T5315

UGC DOR6922786
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 543:T5315
Product Name (ISO)CNMA 160612:T5315
GradeT5315
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922786
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.335"
Depth of Cut Max — mm (APMX)8.5 mm
Tool Information
Reference Numbers
EDP Number6922786
EAN3603603076129
File Type Download
CNMA 543:T5315 — Line Drawing PDF Download
