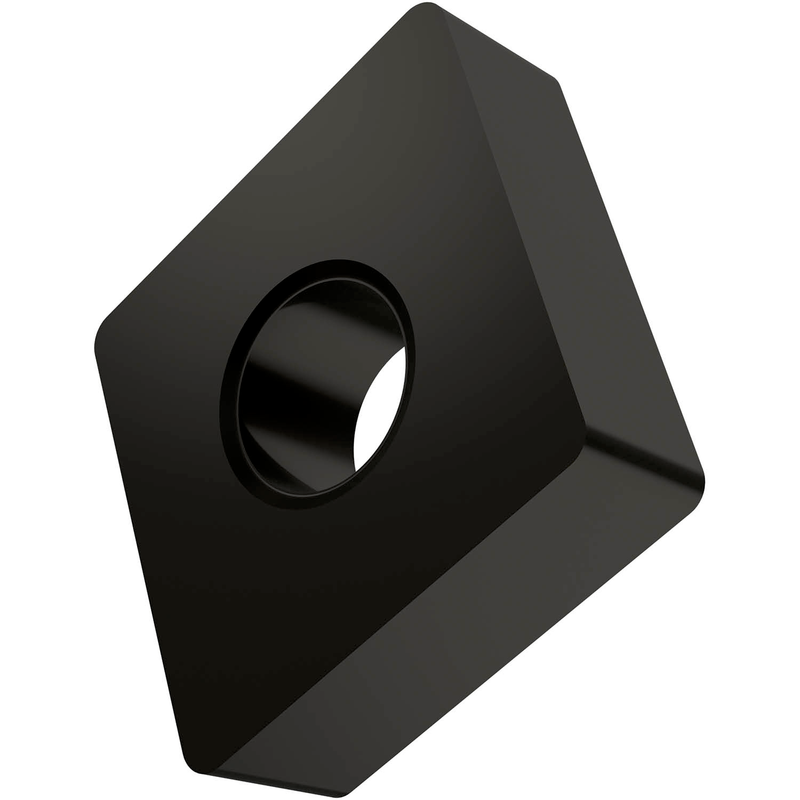

CNMA 544:T5315
CNMA 544:T5315

CNMA 544:T5315

UGC DOR6922788
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, rhomboïde à 80° avec diamètre du cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO- M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage de la fonte du semi-finition à l'ébauche.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 544:T5315
Product Name (ISO)CNMA 160616:T5315
GradeT5315
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922788
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.335"
Depth of Cut Max — mm (APMX)8.5 mm
Tool Information
Reference Numbers
EDP Number6922788
EAN3603603076143
File Type Download
CNMA 544:T5315 — Line Drawing PDF Download
