DNMA 443:T5315
DNMA 443:T5315

DNMA 443:T5315

UGC DOR6922795
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

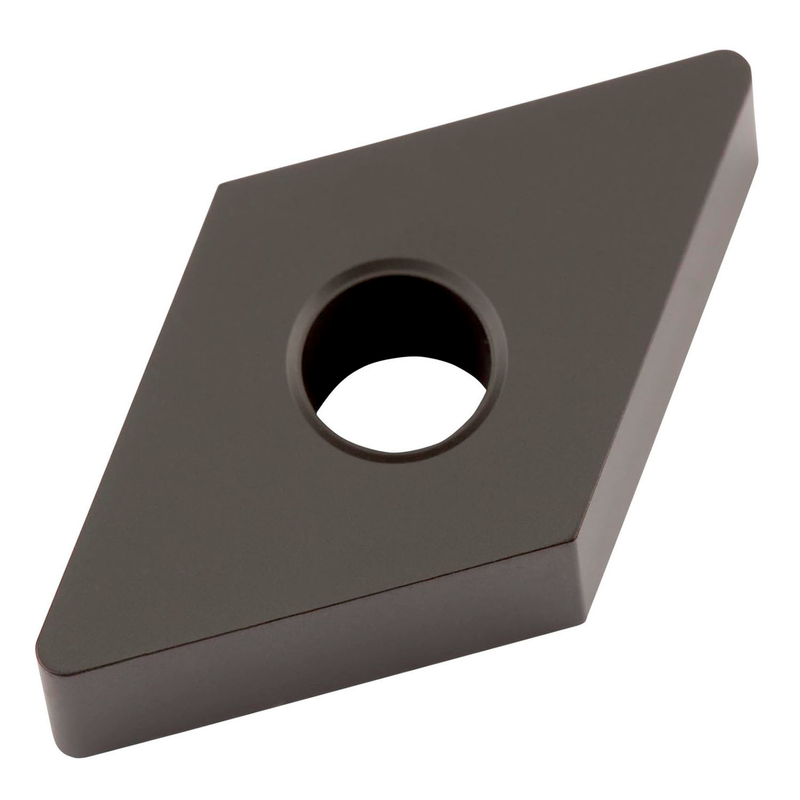

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 1/2" de diamètre, 1/4" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO-M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMA 443:T5315
Product Name (ISO)DNMA 150612:T5315
GradeT5315
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922795
Product FamilyDNMA

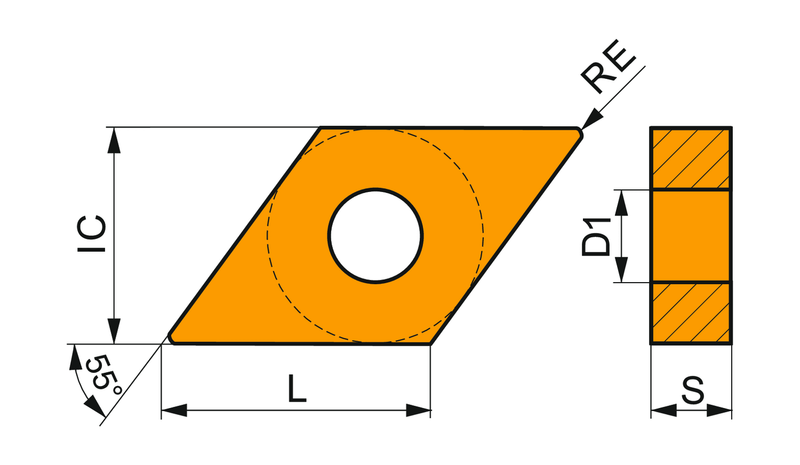

Insert Geometry
Insert DesignDNMA
Insert Shape Code (SC)D - angle d'ouverture rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.154"
Depth of Cut Max — mm (APMX)3.9 mm
Tool Information
Reference Numbers
EDP Number6922795
EAN3603603076211
File Type Download
DNMA 443:T5315 — Line Drawing PDF Download
