RCMW 0602MO:T5315
RCMW 0602MO:T5315

RCMW 0602MO:T5315

UGC DOR6922815
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.93 CAD - $9.93 CAD
$9.93 CAD
$9.93 CAD - $9.93 CAD
$9.93 CAD

Vendu en lots de : 10

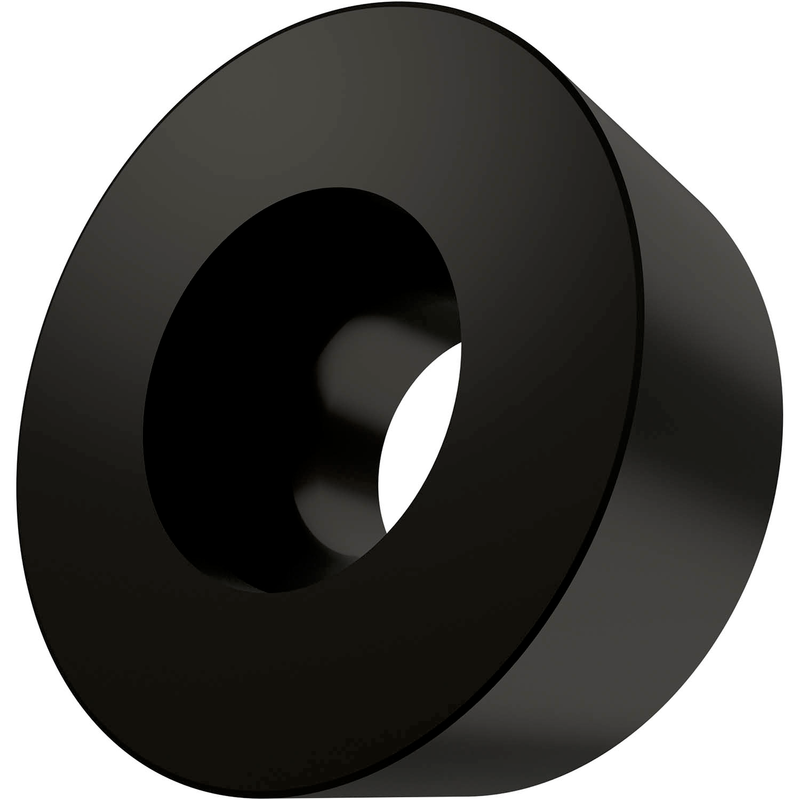

Plaquette positive simple face, ronde avec dépouille de 7°, un diamètre de 6 mm, 2,38 mm d'épaisseur, précision d'indexage selon la classe de tolérance ISO-M, en nuance T5315, un carbure WC-Co revêtu MT-CVD de la gamme ISO K10-K25, pour l'usinage fin des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMW 0602MO:T5315
GradeT5315
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6922815
Product FamilyCRMP
Insert Geometry
Insert DesignRCMW
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number6922815
EAN3603603076419
File Type Download
RCMW 0602MO:T5315 — Line Drawing PDF Download
