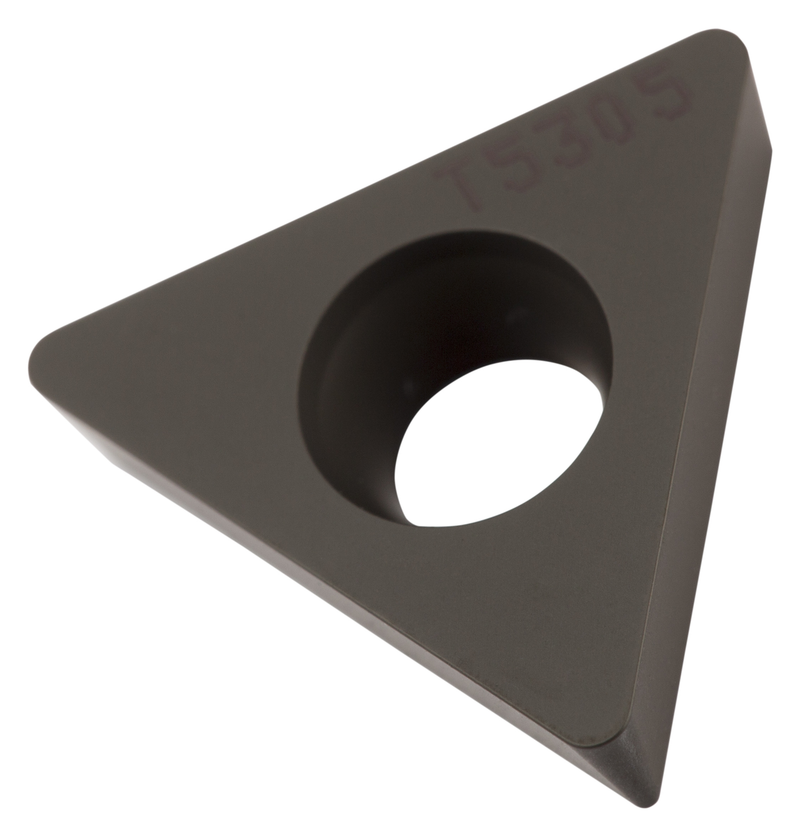

TCMW 21.51:T5315
TCMW 21.51:T5315

TCMW 21.51:T5315

UGC DOR6922822
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.21 CAD - $11.21 CAD
$11.21 CAD
$11.21 CAD - $11.21 CAD
$11.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-M, en nuance T5315, un carbure WC-Co revêtu MT-CVD de la gamme ISO K10-K25, pour la finition de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMW 21.51:T5315
Product Name (ISO)TCMW 110204:T5315
GradeT5315
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922822
Product FamilyMTCH
Insert Geometry
Insert DesignPCPE
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Reference Numbers
EDP Number6922822
EAN3603603076488
File Type Download
TCMW 21.51:T5315 — Line Drawing PDF Download
