CNMA 432:T6310
CNMA 432:T6310

CNMA 432:T6310

UGC DOR6922854
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

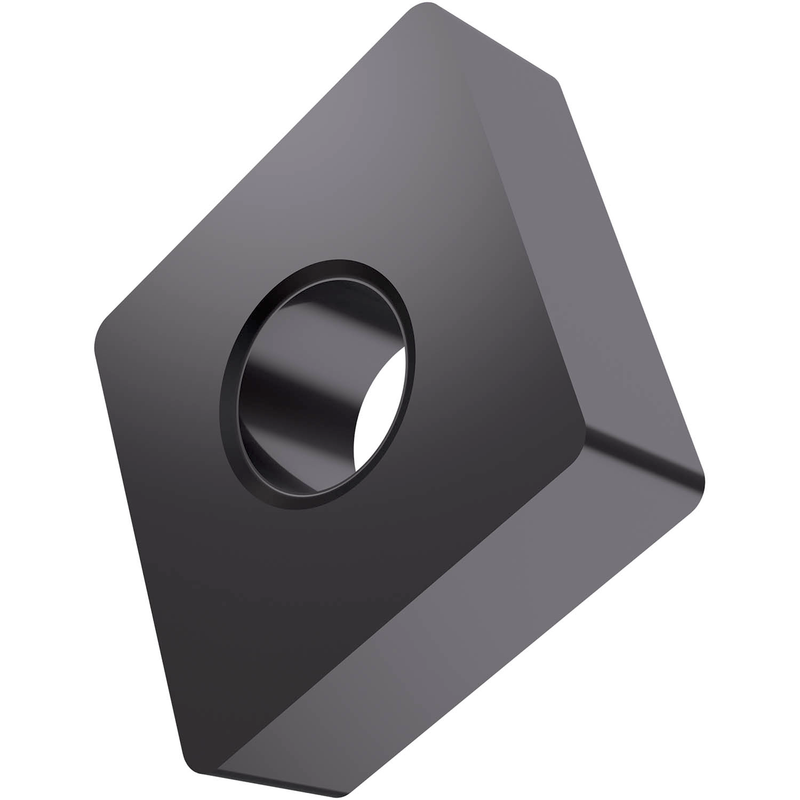

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, dans la plage ISO K05 - K20, pour l'usinage fin à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 432:T6310
Product Name (ISO)CNMA 120408:T6310
GradeT6310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922854
Product FamilyCNMA
Insert Geometry
Insert DesignCMNA
Insert Shape Code (SC)C - angle compris rhomboïde 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Reference Numbers
EDP Number6922854
EAN3603603076808
File Type Download
CNMA 432:T6310 — Line Drawing PDF Download
