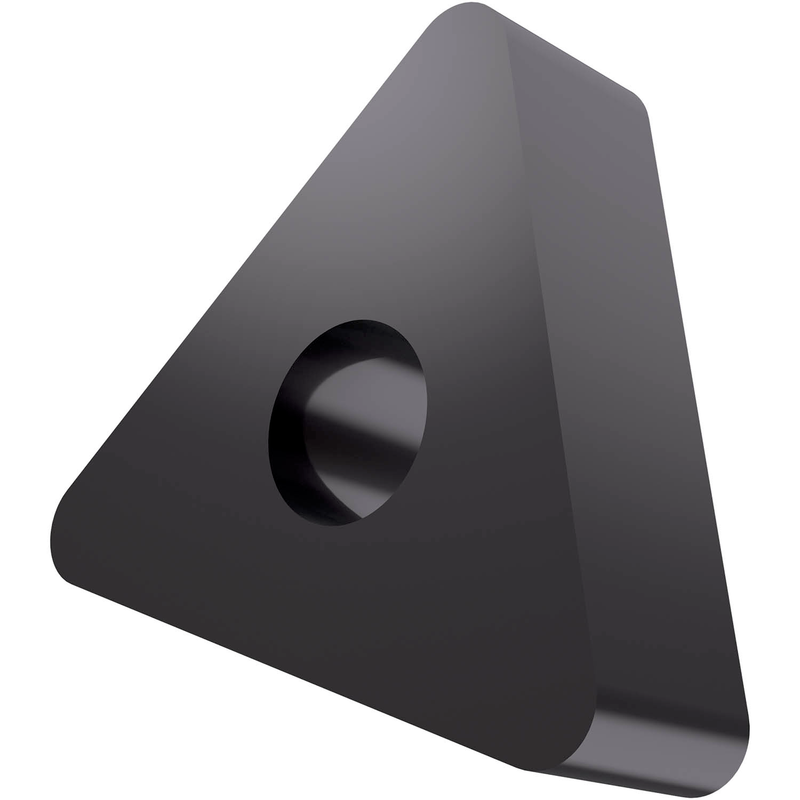

TNMA 332:T6310
TNMA 332:T6310

TNMA 332:T6310

UGC DOR6922859
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face à géométrie triangulaire, avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, de la plage ISO K05 - K20, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMA 332:T6310
Product Name (ISO)TNMA 160408:T6310
GradeT6310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6922859
Product FamilyTNNM
Insert Geometry
Insert DesignGNMA
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6922859
EAN3603603076853
File Type Download
TNMA 332:T6310 — Line Drawing PDF Download
