14A3R020M08-SAD07D-C
14A3R020M08-SAD07D-C
14A3R020M08-SAD07D-C

14A3R020M08-SAD07D-C

UGC DOR6923285
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

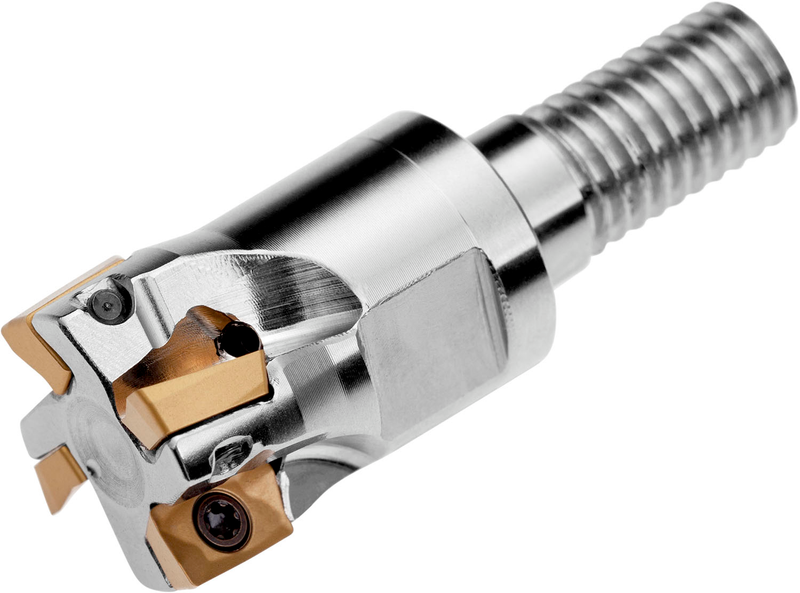

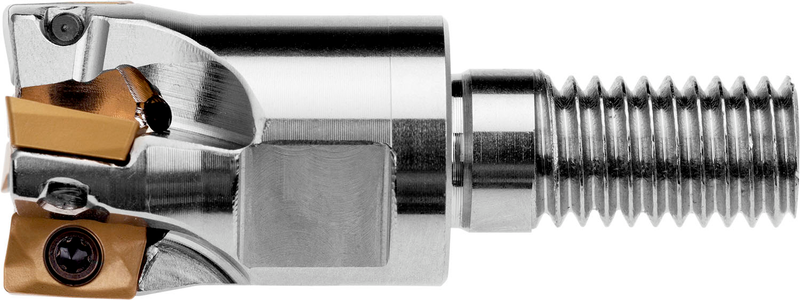

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes ADMX 0702... ou ADEX 0702... à simple face, diamètre de coupe 14 mm avec angle d'approche de 90° et queue filetée M8 pour porte-outils modulaires standard, longueur de dépassement 20 mm, arrosage central pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)14A3R020M08-SAD07D-C
Product Number6923285
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

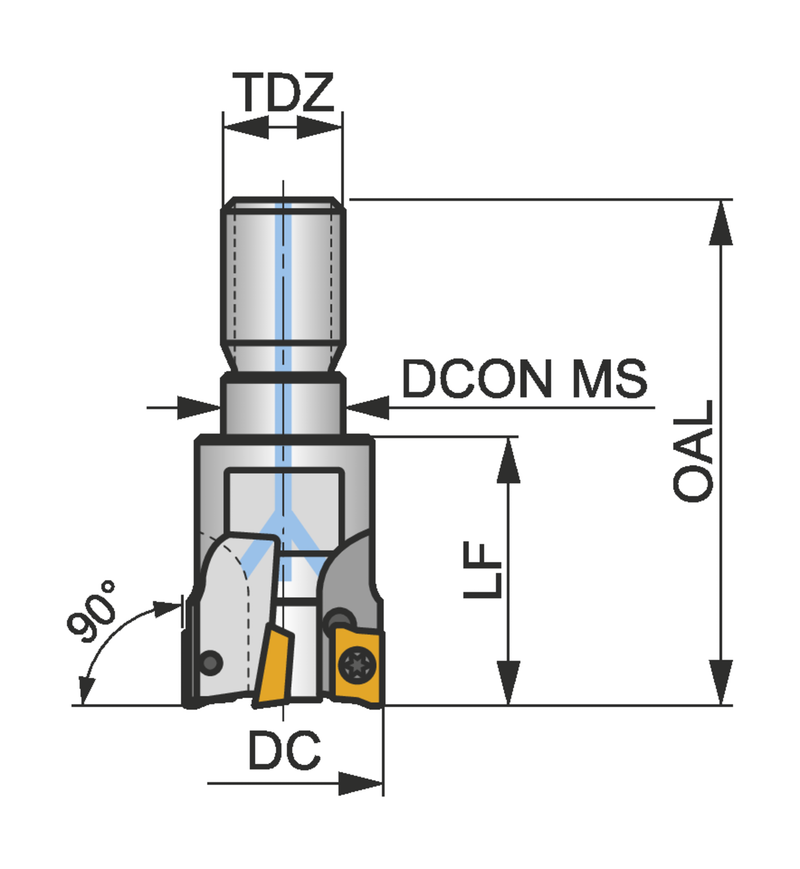

Dimensions
Cutting Diameter — in (DC)0.551"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)1.496"
Overall Length — mm (OAL)38.0 mm
Functional Length — mm (LF)20.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignSAD07D
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6923285
EAN3603603078031
File Type Download
14A3R020M08-SAD07D-C — 3D Model STP Download
14A3R020M08-SAD07D-C — 2D Model DXF Download
14A3R020M08-SAD07D-C — Line Drawing PDF Download
