GNLX 120508ER-MF:M8340
GNLX 120508ER-MF:M8340

GNLX 120508ER-MF:M8340

UGC DOR6925548
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.61 CAD - $29.61 CAD
$29.61 CAD
$29.61 CAD - $29.61 CAD
$29.61 CAD

Vendu en lots de : 10

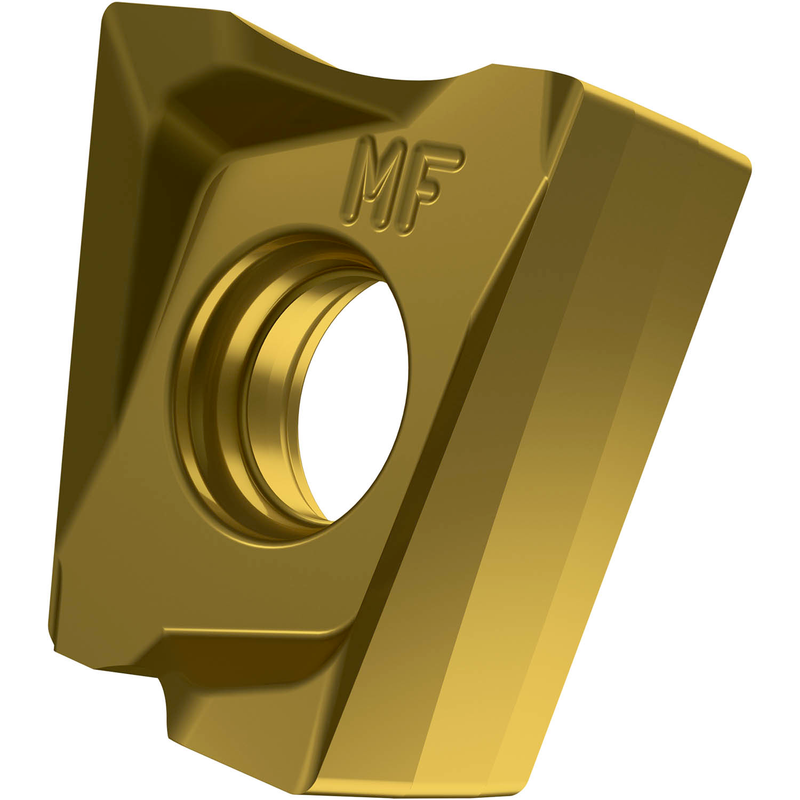

Plaquette de fraisage double face LNGX 1205, rectangulaire pour une profondeur de coupe maximale de 0,3543", avec rayon de coin de 0,0315", une précision d'indexage selon la classe de tolérance ISO-G et une géométrie MF avec arêtes de coupe arrondies, en carbure WC-Co micrograin revêtu PVD M8340 de nuance ISO M20-M40 pour l'usinage de l'acier inoxydable avec les fraises à épaulement SLN12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGX 120508ER-MF:M8340
GradeM8340
Chipbreaker (CBMD)MF
Product Number6925548
Product FamilyGNLX 12

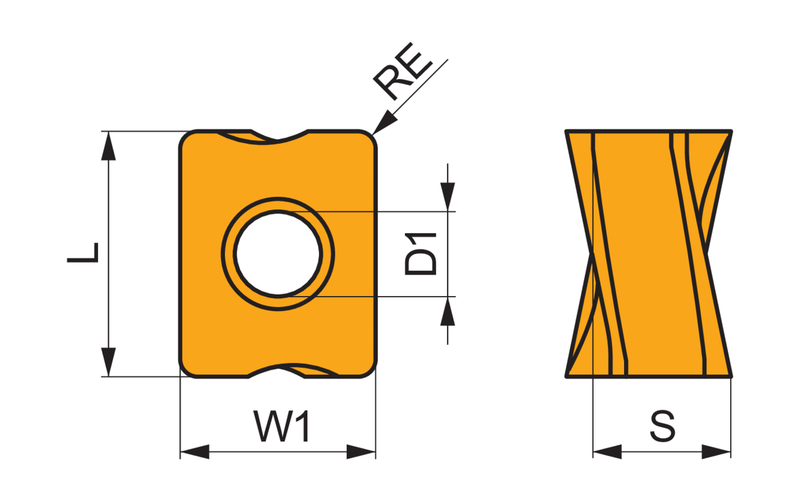

Insert Geometry
Insert DesignLNGX 12
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.235"
Insert Thickness — mm (S)5.96 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6925548
EAN3603603074811
File Type Download
GNLX 120508ER-MF:M8340 — Line Drawing PDF Download
