TNMG 548-RM:T9335
TNMG 548-RM:T9335

TNMG 548-RM:T9335

UGC DOR6926956
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.57 CAD - $25.57 CAD
$25.57 CAD
$25.57 CAD - $25.57 CAD
$25.57 CAD

Vendu en lots de : 10

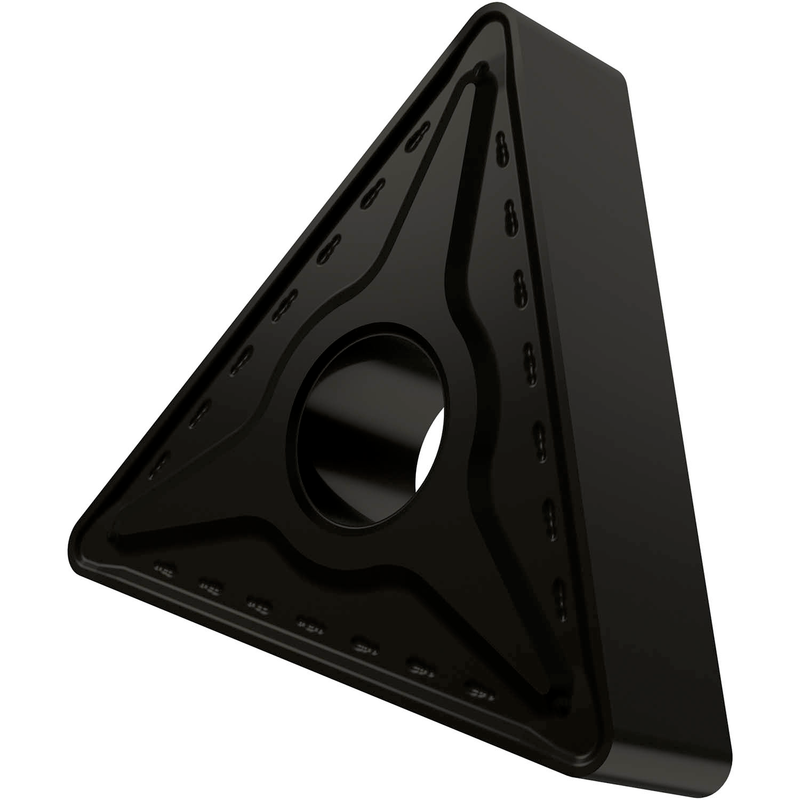

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 1/8" et précision d'indexage selon la classe de tolérance ISO- M, brise-copeaux RM, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P20-P45 et M15-M40, pour l'usinage moyen à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 548-RM:T9335
Product Name (ISO)TNMG 270632E-RM:T9335
GradeT9335
Chipbreaker (CBMD)RM
Product Number6926956
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Reference Numbers
EDP Number6926956
EAN3603603078277
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 548-RM:T9335 — Line Drawing PDF Download
