OEHT 0604AEFR-FA:HF7
OEHT 0604AEFR-FA:HF7

OEHT 0604AEFR-FA:HF7

UGC DOR6931668
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.67 CAD - $31.67 CAD
$31.67 CAD
$31.67 CAD - $31.67 CAD
$31.67 CAD

Vendu en lots de : 10

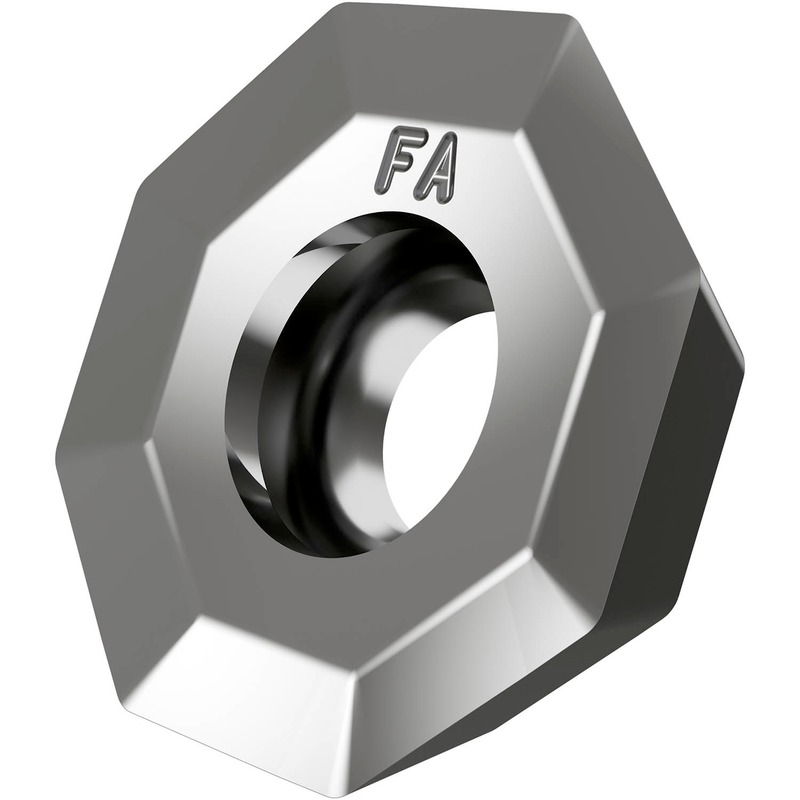

Plaquette de fraisage simple face OEHT 0604 avec brise-copeaux, octogonale pour une profondeur de coupe maximale de 3,3 mm, avec rayon de coin de ", précision de positionnement selon la classe de tolérance ISO-H et géométrie FA avec arêtes de coupe vives, carbure de WC-Co à grains fins non revêtu HF7 dans la gamme de nuances ISO N10-N25 pour l'usinage de métaux non ferreux avec fraises à surfacer SOE06Z

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)OEHT 0604AEFR-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number6931668
Product FamilyOEHT 06-FA

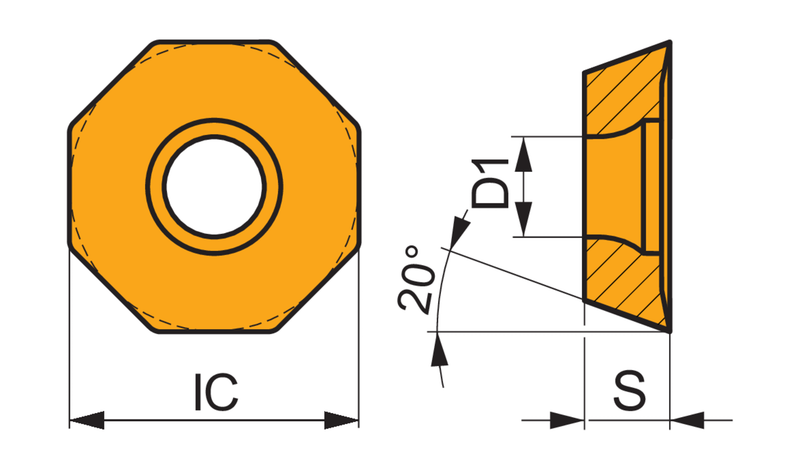

Insert Geometry
Insert DesignOEHT
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.632"
Inscribed Circle Dia. — mm (IC)16.05 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6931668
EAN3603603078628
File Type Download
OEHT 0604AEFR-FA:HF7 — Line Drawing PDF Download
