160C09R-S45OE06Z-C
160C09R-S45OE06Z-C
160C09R-S45OE06Z-C

160C09R-S45OE06Z-C

UGC DOR6931703
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,990.00 CAD - $1,990.00 CAD
$1,990.00 CAD
$1,990.00 CAD - $1,990.00 CAD
$1,990.00 CAD

Vendu en lots de : 1

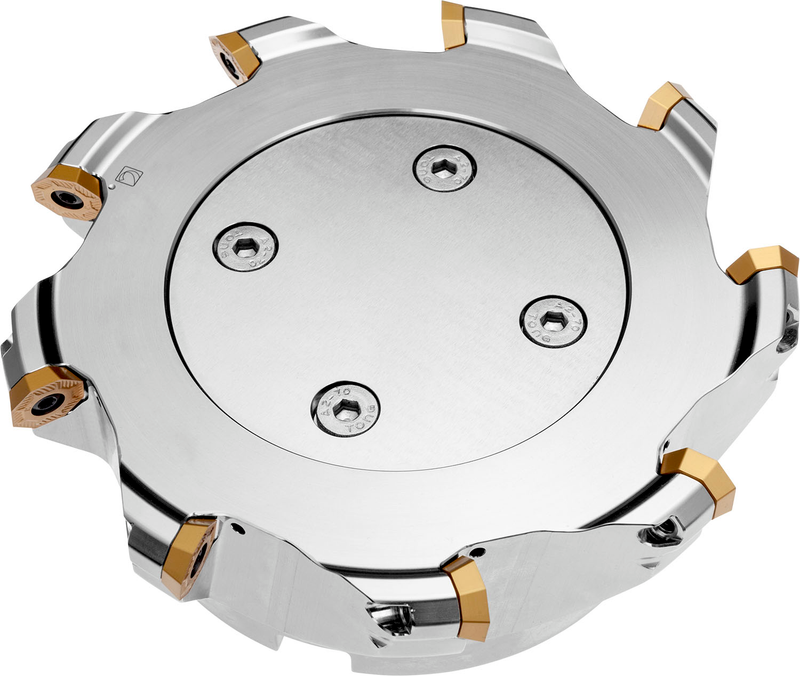

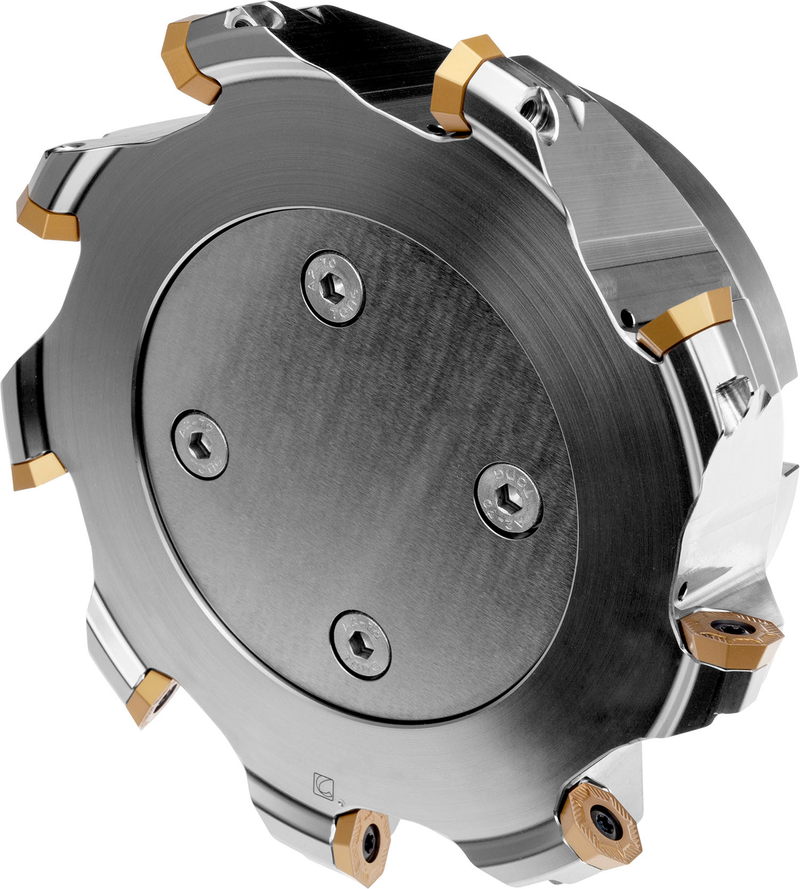

Fraise à surfacer avec double géométrie positive qui utilise 9 plaquettes unilatérales OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe 160 à 170,2 mm maximum avec un angle d'attaque de 43° et un alésage de raccordement de 40 mm selon DIN 8030-C, longueur de saillie de 63 mm, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,3 (9,9) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160C09R-S45OE06Z-C
Product Number6931703
Product FamilySOE06Z
Insert Geometry
Depth of Cut Max — mm (APMX)3.3 mm

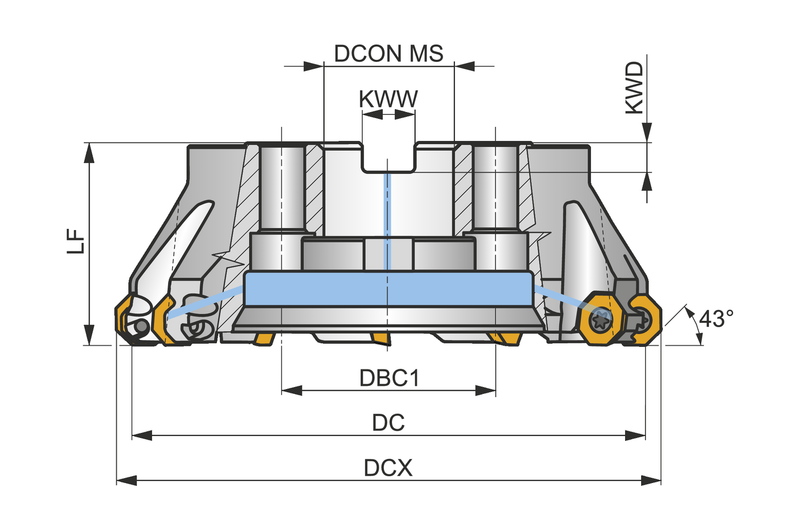

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSOE06Z
ShankFraise-cloche DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6931703
EAN3603603078680
File Type Download
160C09R-S45OE06Z-C — 3D Model STP Download
160C09R-S45OE06Z-C — 2D Model DXF Download
160C09R-S45OE06Z-C — Line Drawing PDF Download
