GNFL 300715-PM:T9226
GNFL 300715-PM:T9226

GNFL 300715-PM:T9226

UGC DOR6931824
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.79 CAD - $51.79 CAD
$51.79 CAD
$51.79 CAD - $51.79 CAD
$51.79 CAD

Vendu en lots de : 5

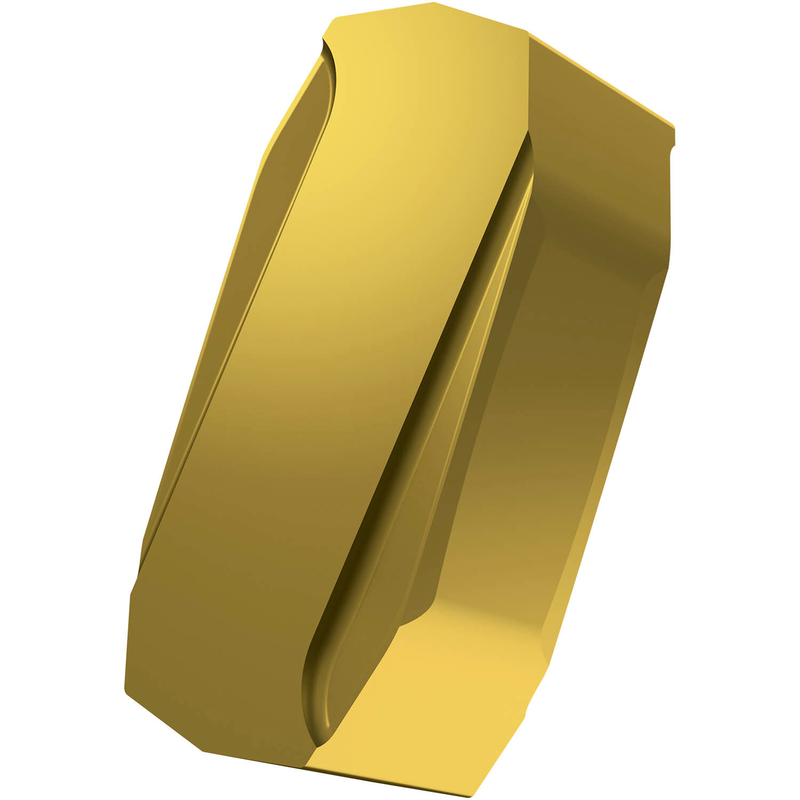

Plaquette de tournage-tronçonnage négative double-face, rectangulaire, d’une longueur de 30,12 mm, d’une épaisseur de 7,94 mm pour une profondeur de coupe de 1,5 mm, précision d'indexage selon la classe de tolérance ISO G, brise-copeaux PM, en nuance T9226, un carbure WC-Co à gradient fonctionnel et revêtement MT-CVD dans la plage ISO P15-P35, pour aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 300715-PM:T9226
GradeT9226
Chipbreaker (CBMD)MP
Product Number6931824
Product FamilyLNGF 30

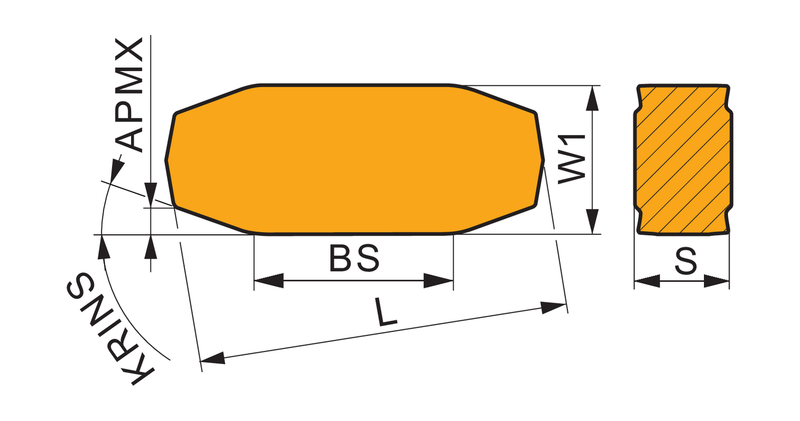

Insert Geometry
Insert DesignLNGF 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.297"
Insert Thickness — mm (S)7.54 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number6931824
EAN3603603078727
File Type Download
GNFL 300715-PM:T9226 — Line Drawing PDF Download
