GNFL 401035-PM-S01:T9226
GNFL 401035-PM-S01:T9226

GNFL 401035-PM-S01:T9226

UGC DOR6931826
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.14 CAD - $77.14 CAD
$77.14 CAD
$77.14 CAD - $77.14 CAD
$77.14 CAD

Vendu en lots de : 5

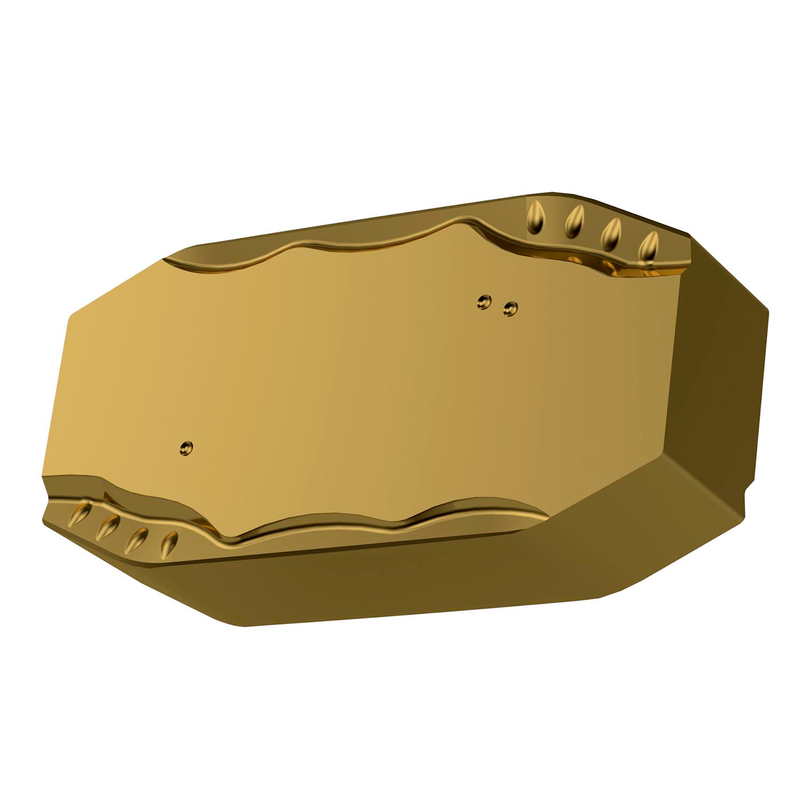

Plaquette de barpeeling négative double face, rectangulaire, de 40 mm de long, 9,6 mm d'épaisseur pour 3,5 mm de profondeur de coupe, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux PM avec préparation d'arête de coupe S01, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 401035-PM-S01:T9226
GradeT9226
Chipbreaker (CBMD)MP
Product Number6931826
Product FamilyGNL 40

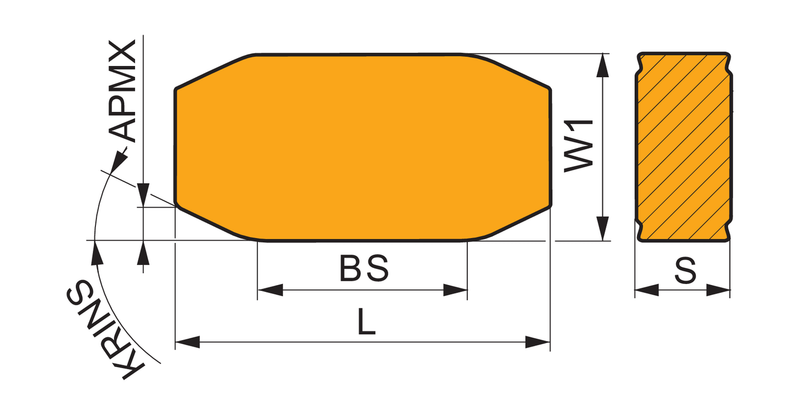

Insert Geometry
Insert DesignGNFL 40
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.15 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6931826
EAN3603603078741
File Type Download
GNFL 401035-PM-S01:T9226 — Line Drawing PDF Download
