RNGH 381200-MR:T9226
RNGH 381200-MR:T9226

RNGH 381200-MR:T9226

UGC DOR6931830
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$110.00 CAD - $110.00 CAD
$110.00 CAD
$110.00 CAD - $110.00 CAD
$110.00 CAD

Vendu en lots de : 3

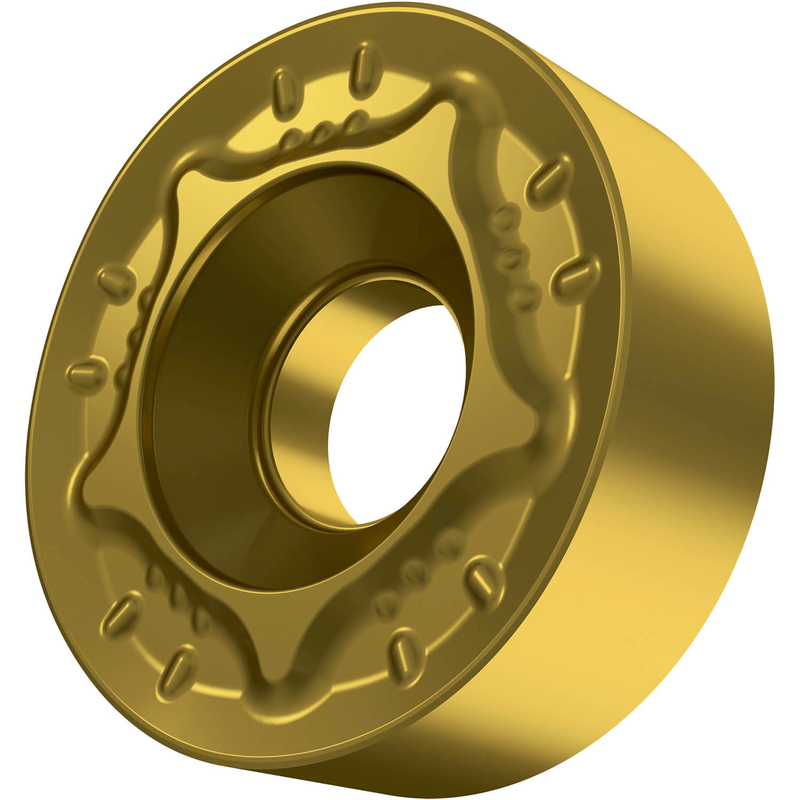

Plaquette de tournage-écroutage à une face, négative, ronde de 38,1 mm de diamètre, 12,7 mm d'épaisseur pour une profondeur de coupe de 8 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux MR, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RNGH 381200-MR:T9226
GradeT9226
Chipbreaker (CBMD)M.
Product Number6931830
Product FamilyRNGH
Insert Geometry
Insert DesignGRNH
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.5"
Insert Thickness — mm (S)12.7 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6931830
EAN3603603078789
File Type Download

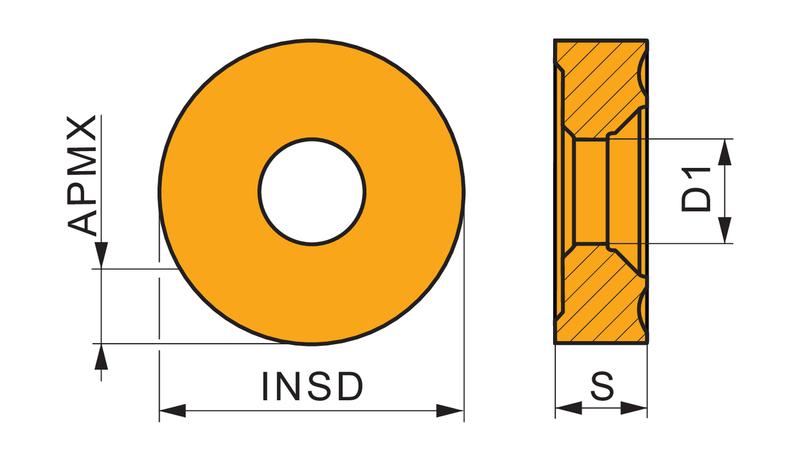

RNGH 381200-MR:T9226 — Line Drawing PDF Download
