WNGU 150935-PM-S02:T9226
WNGU 150935-PM-S02:T9226

WNGU 150935-PM-S02:T9226

UGC DOR6931835
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.29 CAD - $68.29 CAD
$68.29 CAD
$68.29 CAD - $68.29 CAD
$68.29 CAD

Vendu en lots de : 5

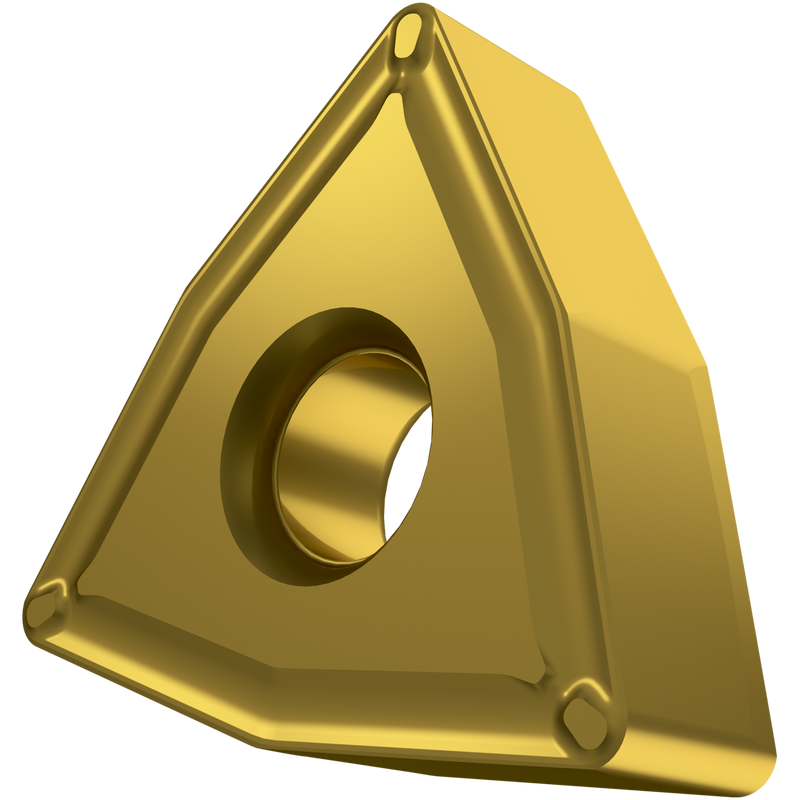

Plaquette négative double-face pour écroûtage à la barre, trigon 80° avec diamètre de cercle inscrit de 22,225mm, épaisseur de 9,52mm pour une profondeur de coupe de 3,5mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux PM avec préparation d'arête S02, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNGU 150935-PM-S02:T9226
GradeT9226
Chipbreaker (CBMD)PM-S02
Product Number6931835
Product FamilyWNGU

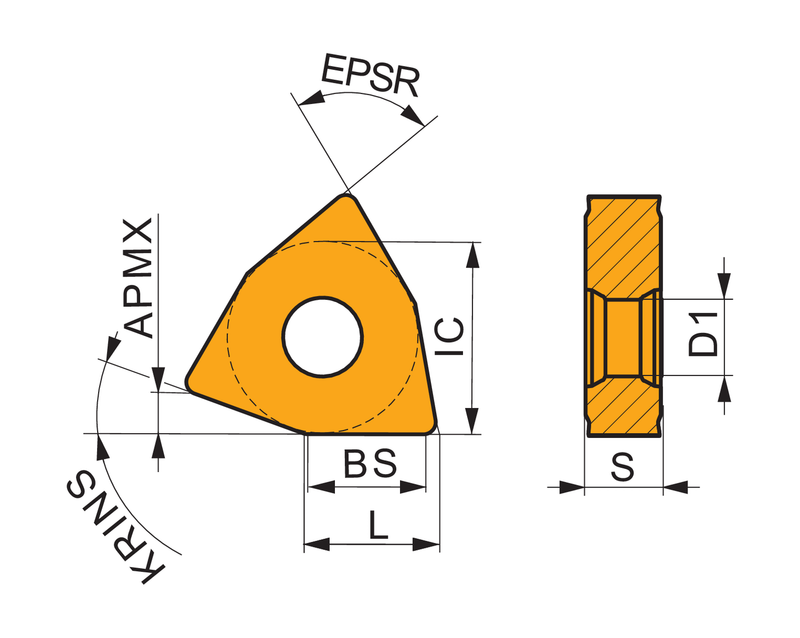

Insert Geometry
Insert DesignWNGU
Insert Shape Code (SC)W - trigonale
Inscribed Circle Dia. — in (IC)0.875"
Inscribed Circle Dia. — mm (IC)22.23 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.52 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6931835
EAN3603603078833
File Type Download
WNGU 150935-PM-S02:T9226 — Line Drawing PDF Download
