WNMJ 201380-PR:T9226
WNMJ 201380-PR:T9226

WNMJ 201380-PR:T9226

UGC DOR6931837
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.00 CAD - $125.00 CAD
$125.00 CAD
$125.00 CAD - $125.00 CAD
$125.00 CAD

Vendu en lots de : 3

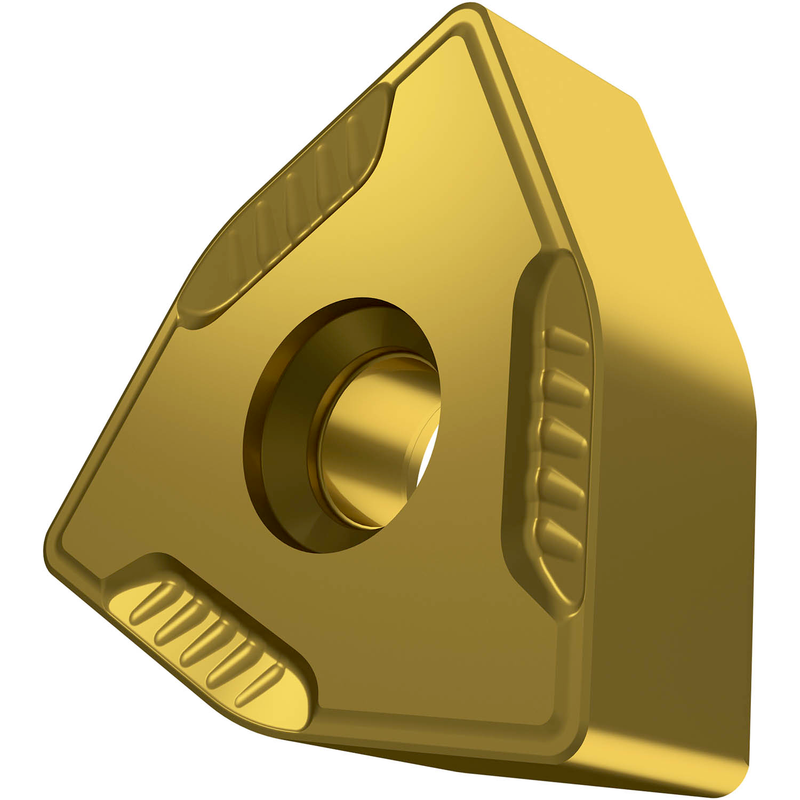

Plaquette à double face pour tournage-écroûtage, trigone 80° avec un diamètre du cercle inscrit de 31,75 mm, 13 mm d'épaisseur pour une profondeur de coupe de 8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux PR, en nuance T9226, un carbure WC-Co à gradient de fonctions revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMJ 201380-PR:T9226
GradeT9226
Chipbreaker (CBMD)RP
Product Number6931837
Product FamilyWNMJ
Insert Geometry
Insert DesignFMJN
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.512"
Insert Thickness — mm (S)13.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6931837
EAN3603603078857
File Type Download

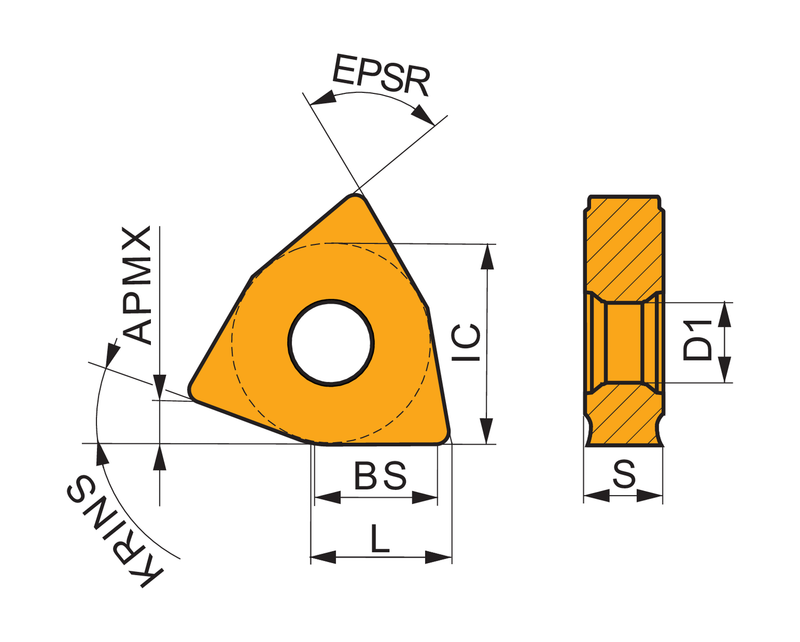

WNMJ 201380-PR:T9226 — Line Drawing PDF Download
