WNMJ 201480-PR:T9226
WNMJ 201480-PR:T9226

WNMJ 201480-PR:T9226

UGC DOR6931838
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.00 CAD - $125.00 CAD
$125.00 CAD
$125.00 CAD - $125.00 CAD
$125.00 CAD

Vendu en lots de : 3

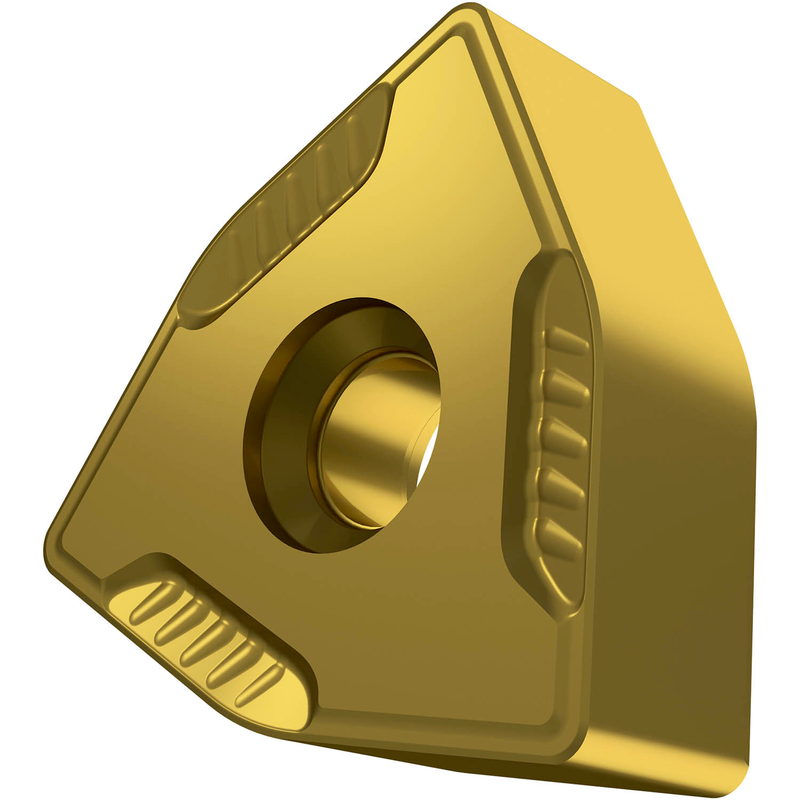

Plaquette de bar peeling négative double-face, trigon 80° avec diamètre de cercle inscrit de 31,75mm, épaisseur 14mm pour profondeur de coupe de 8mm, précision de positionnement selon ISO-classe de tolérance-M, brise-copeaux PR, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMJ 201480-PR:T9226
GradeT9226
Chipbreaker (CBMD)RP
Product Number6931838
Product FamilyWNMJ

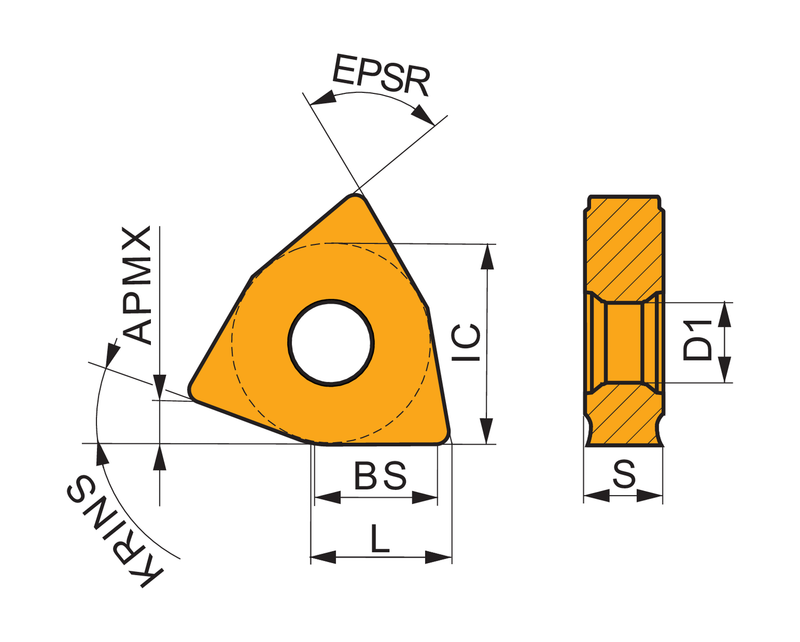

Insert Geometry
Insert DesignWNMJ
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6931838
EAN3603603078864
File Type Download
WNMJ 201480-PR:T9226 — Line Drawing PDF Download
