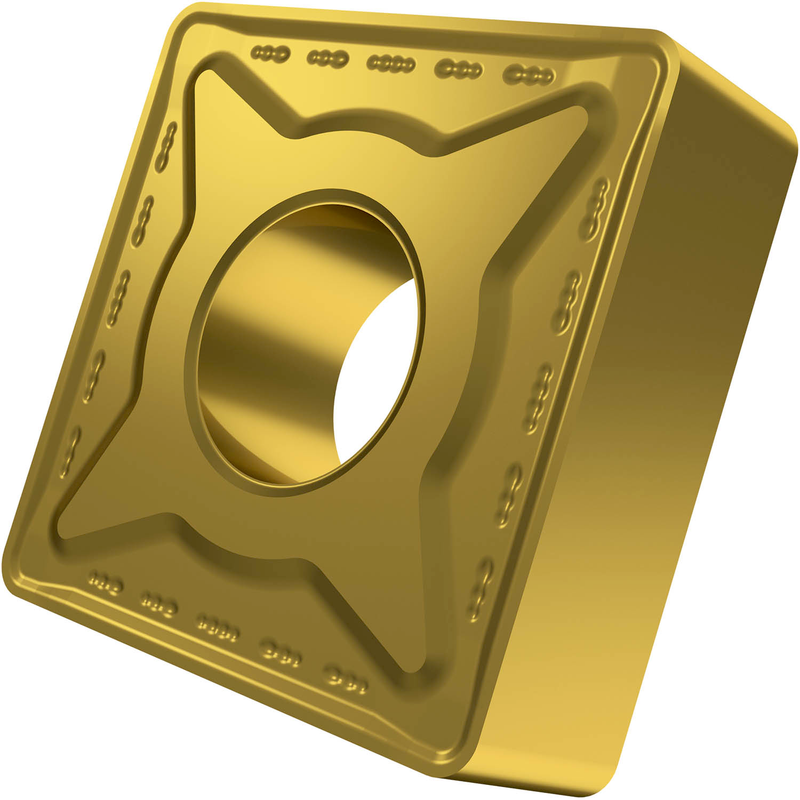

SNMG 866-RM:T9226
SNMG 866-RM:T9226

SNMG 866-RM:T9226

UGC DOR6931868
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.00 CAD - $59.00 CAD
$59.00 CAD
$59.00 CAD - $59.00 CAD
$59.00 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 1", épaisseur de 3/8", rayon de bec de 3/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 866-RM:T9226
Product Name (ISO)SNMG 250924E-RM:T9226
GradeT9226
Chipbreaker (CBMD)RM
Product Number6931868
Product FamilyGNMS
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6931868
EAN3603603079021
File Type Download
SNMG 866-RM:T9226 — Line Drawing PDF Download
