TNMM 546-HR:T9226
TNMM 546-HR:T9226

TNMM 546-HR:T9226

UGC DOR6931891
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.97 CAD - $24.97 CAD
$24.97 CAD
$24.97 CAD - $24.97 CAD
$24.97 CAD

Vendu en lots de : 10

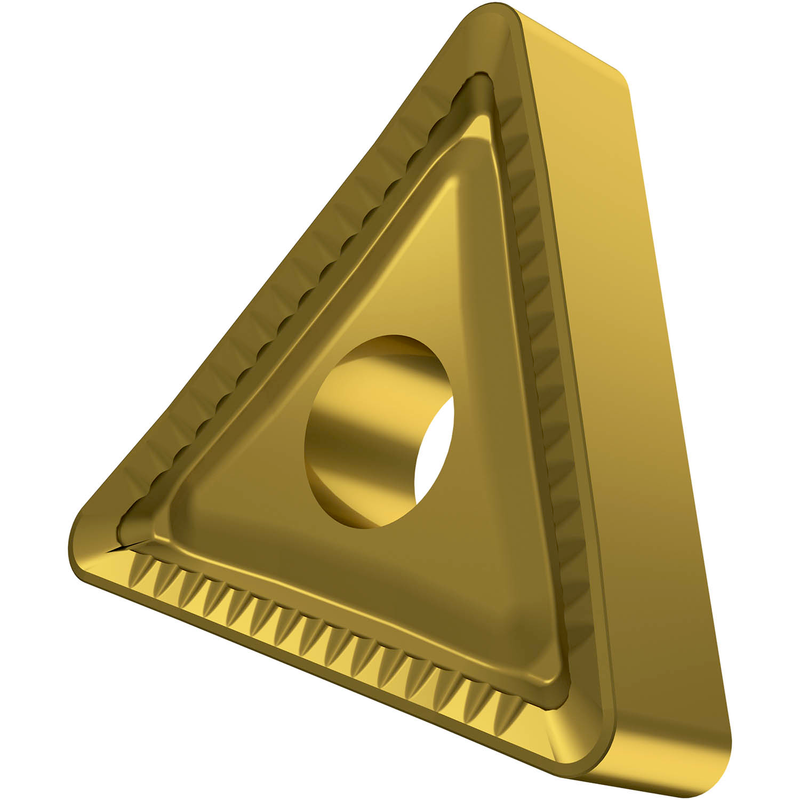

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 3/32" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux HR, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P15 - P35, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMM 546-HR:T9226
Product Name (ISO)TNMM 270624E-RH:T9226
GradeT9226
Chipbreaker (CBMD)RH
Product Number6931891
Product FamilyLe TNMM
Insert Geometry
Insert DesignMTNM

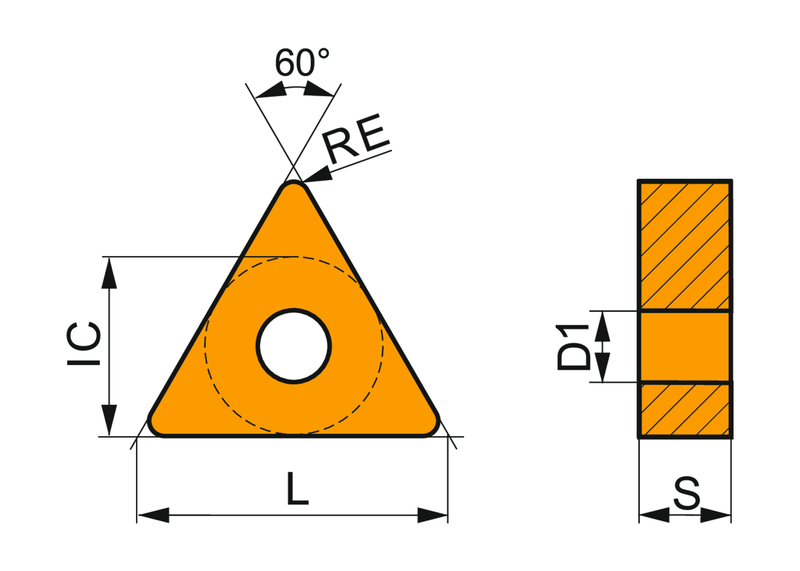

Insert Shape Code (SC)T - angulaire, angle d'ouverture de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Reference Numbers
EDP Number6931891
EAN3603603079250
File Type Download
TNMM 546-HR:T9226 — Line Drawing PDF Download
