SCMT 1268-OR:T9315
SCMT 1268-OR:T9315

SCMT 1268-OR:T9315

UGC DOR6933566
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.43 CAD - $121.43 CAD
$121.43 CAD
$121.43 CAD - $121.43 CAD
$121.43 CAD

Vendu en lots de : 2

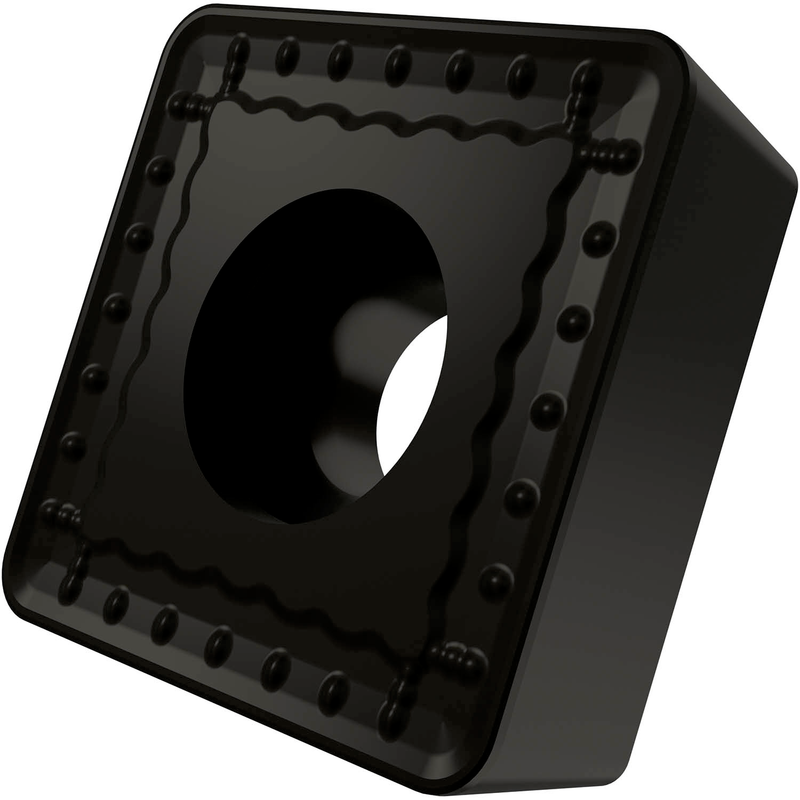

Plaquette de tournage positive simple face, carrée, dépouille 7°, diamètre du cercle inscrit 1 1/2", épaisseur 3/8", rayon de pointe 1/8" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux OR, en nuance T9315, un carbure WC-Co à gradient de fonction revêtue MT-CVD dans la gamme ISO P05-P25, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 1268-OR:T9315
Product Name (ISO)SCMT 380932E-OR:T9315
GradeT9315
Chipbreaker (CBMD)OU_
Product Number6933566
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.5"
Inscribed Circle Dia. — mm (IC)38.1 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)0.945"
Depth of Cut Max — mm (APMX)24.0 mm
Tool Information
Reference Numbers
EDP Number6933566
EAN3603603080058
File Type Download
SCMT 1268-OR:T9315 — Line Drawing PDF Download
