S7133.0
S7133.0
S7133.0
S7133.0

S7133.0

UGC DOR7002451
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.31 CAD - $49.31 CAD
$49.31 CAD
$49.31 CAD - $49.31 CAD
$49.31 CAD

Vendu en lots de : 1

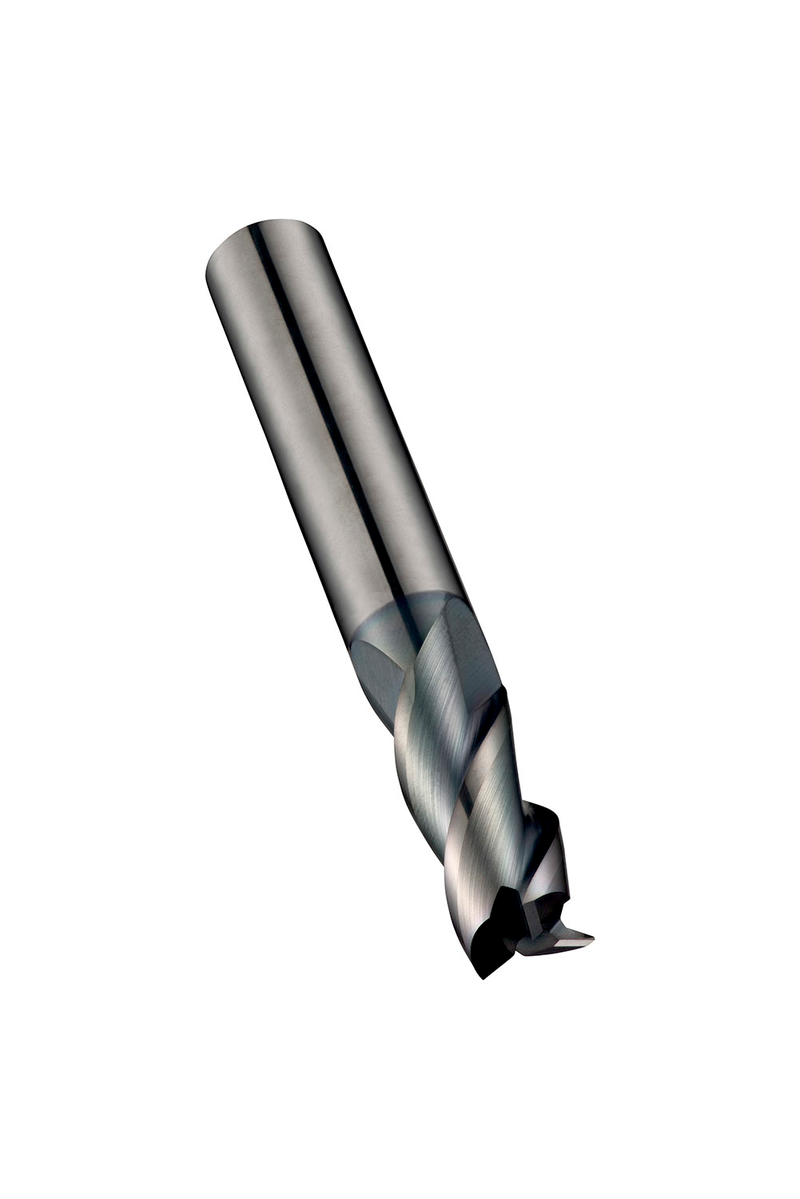

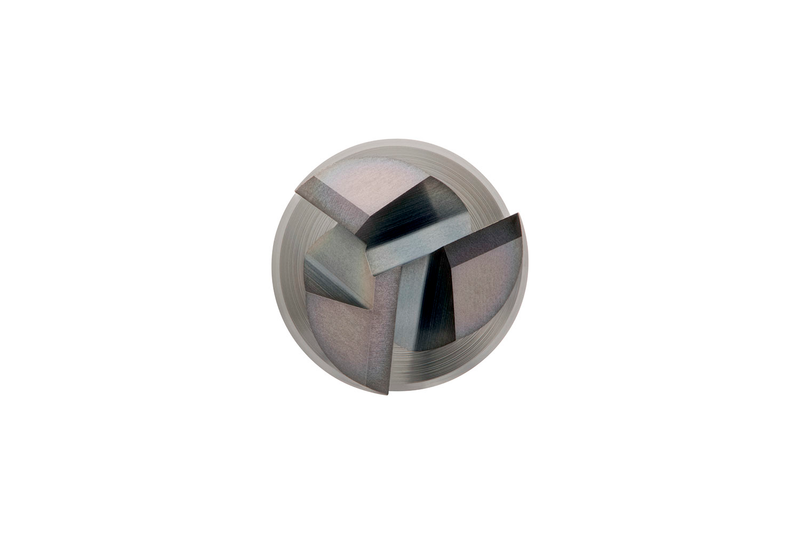

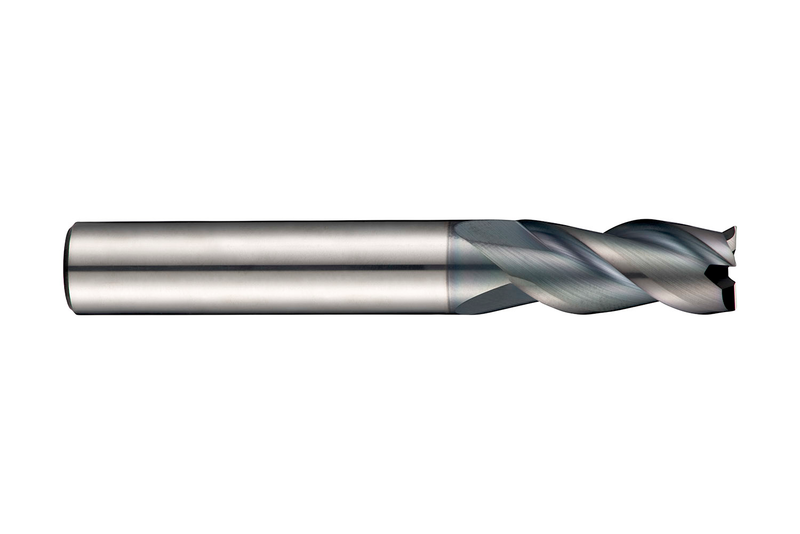

Fraise en bout série courte 3 dents, diamètre 3 mm avec une longueur de coupe de 9 mm et une longueur totale de 40 mm, selon la norme DORMER, avec queue cylindrique de 3 mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7133.0
GradeAlCrN
Product Number7002451
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002451
EAN7320760689929
File Type Download
S7133.0 — Line Drawing PDF Download
