UGC DOR7002453
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.97 CAD - $54.97 CAD
$54.97 CAD
$54.97 CAD - $54.97 CAD
$54.97 CAD

Vendu en lots de : 1

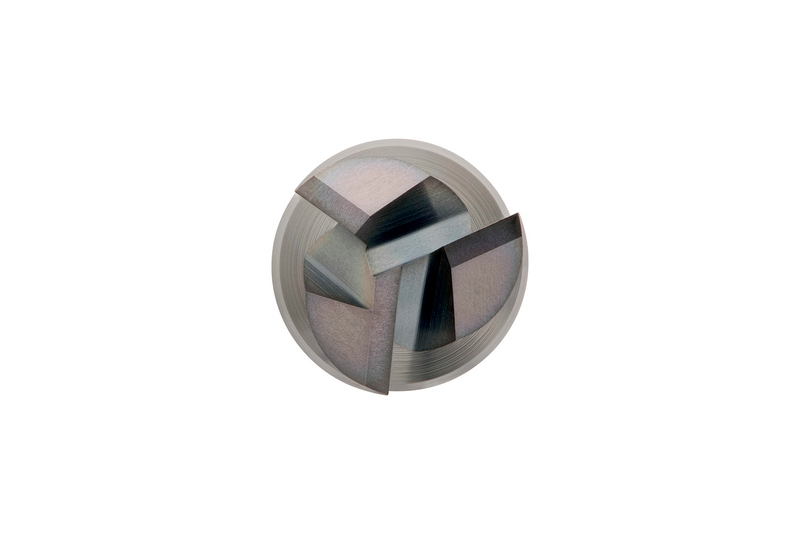

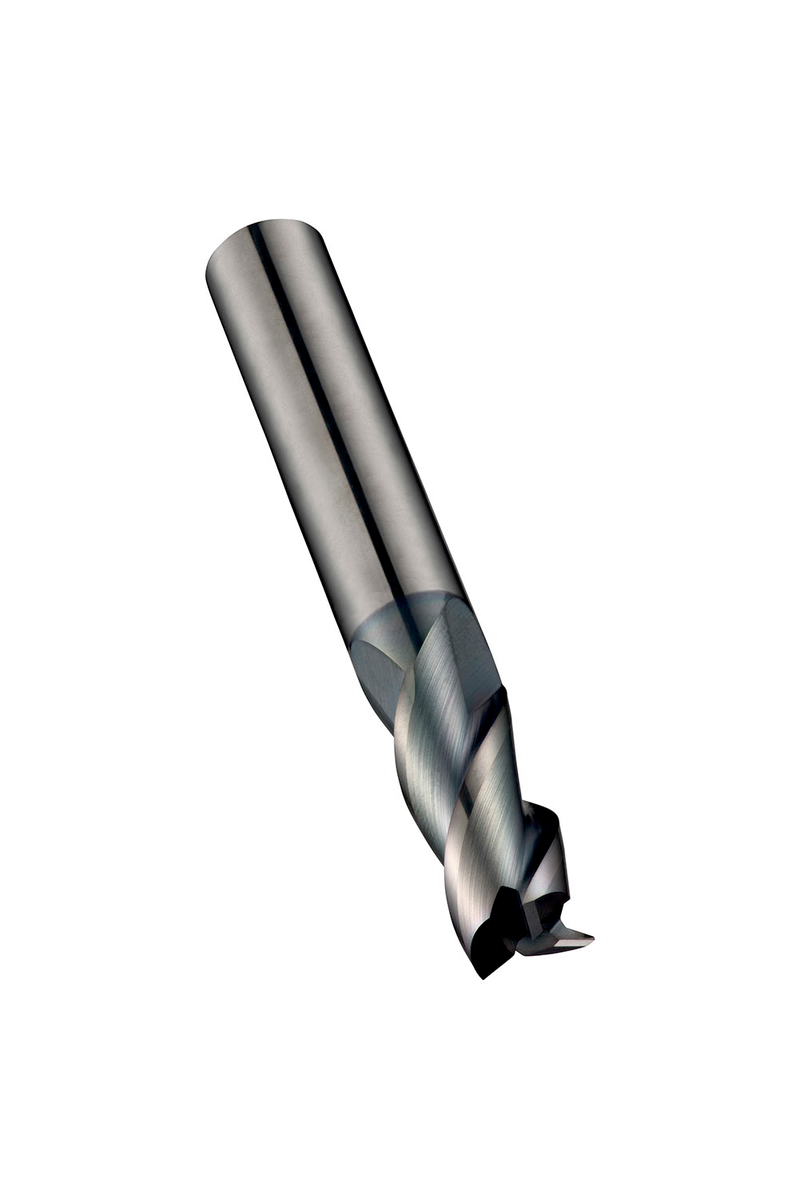

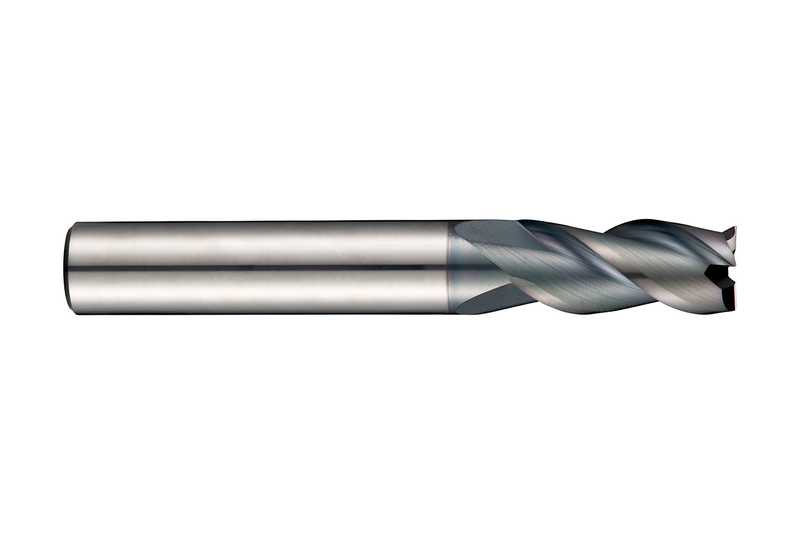

Fraise en bout série courte 3 dents, diamètre 5mm avec une longueur de coupe de 15mm et une longueur totale de 50mm, selon la norme DORMER avec un corps cylindrique de 5mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7135.0
GradeAlCrN
Product Number7002453
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)0.5906"
Depth of Cut Max — mm (APMX)15.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002453
EAN7320760689943
File Type Download
S7135.0 — Line Drawing PDF Download
