UGC DOR7002456
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$100.96 CAD - $100.96 CAD
$100.96 CAD
$100.96 CAD - $100.96 CAD
$100.96 CAD

Vendu en lots de : 1

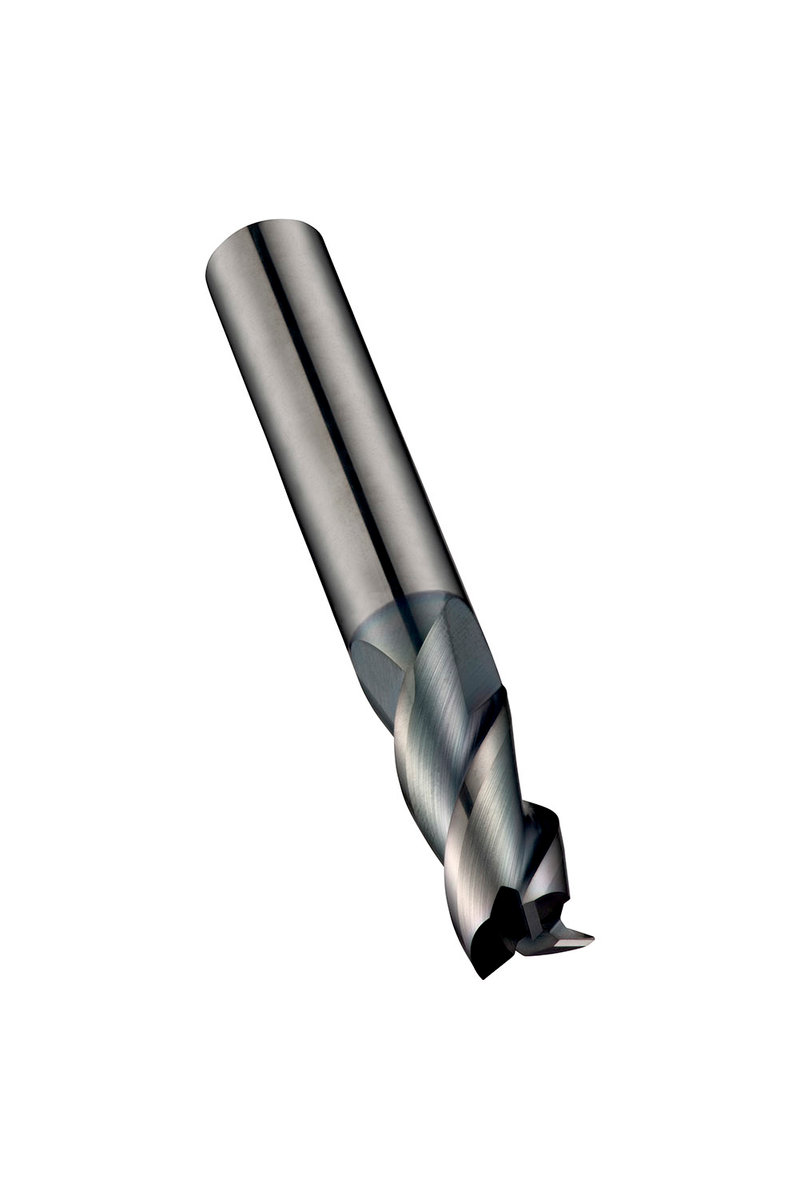

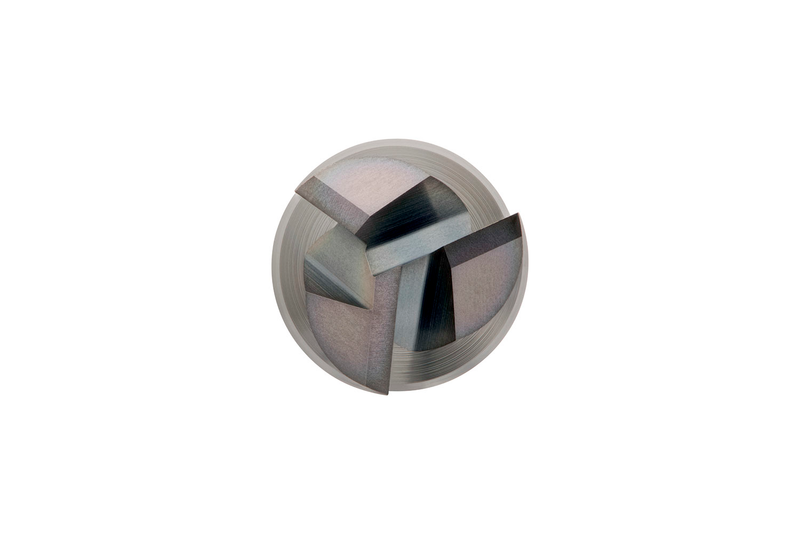

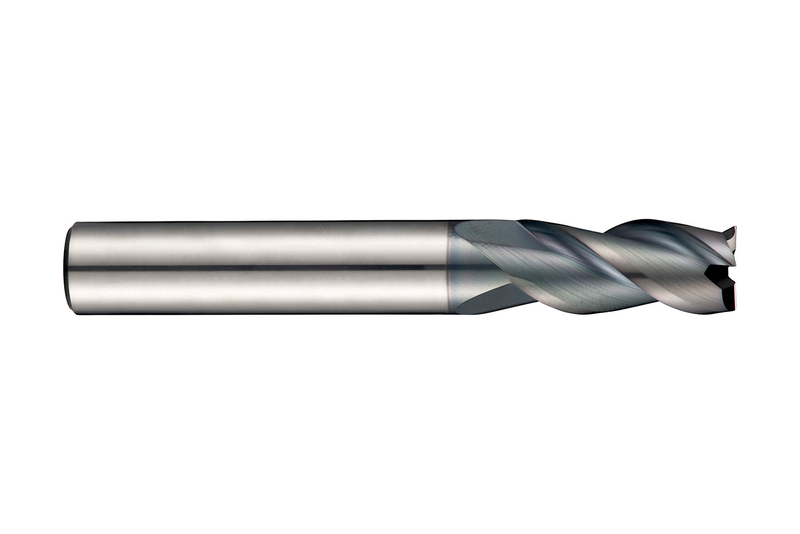

Fraise en carbure monobloc à queue cylindrique, 3 dents, série courte, diamètre 10 mm, longueur de coupe 22 mm, longueur totale 70 mm, conforme à la norme DORMER, revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage en bout et l'usinage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71310.0
GradeAlCrN
Product Number7002456
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002456
EAN7320760689974
File Type Download
S71310.0 — Line Drawing PDF Download
