UGC DOR7002457
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.07 CAD - $140.07 CAD
$140.07 CAD
$140.07 CAD - $140.07 CAD
$140.07 CAD

Vendu en lots de : 1

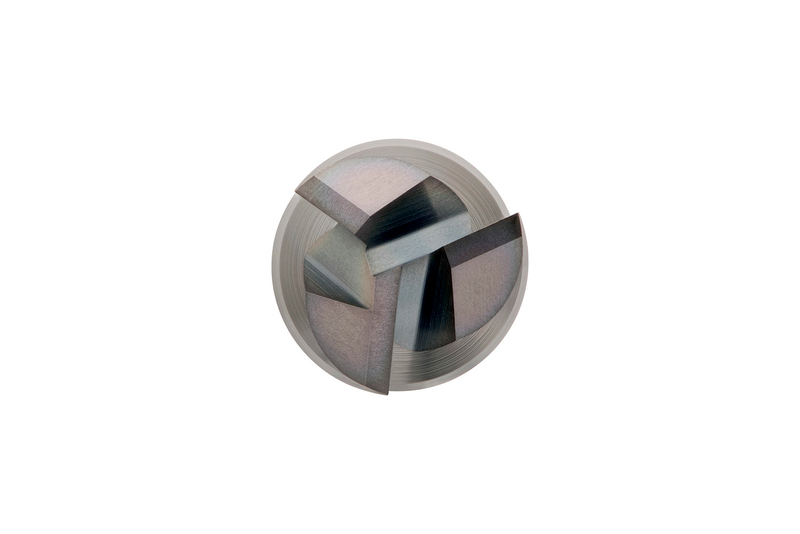

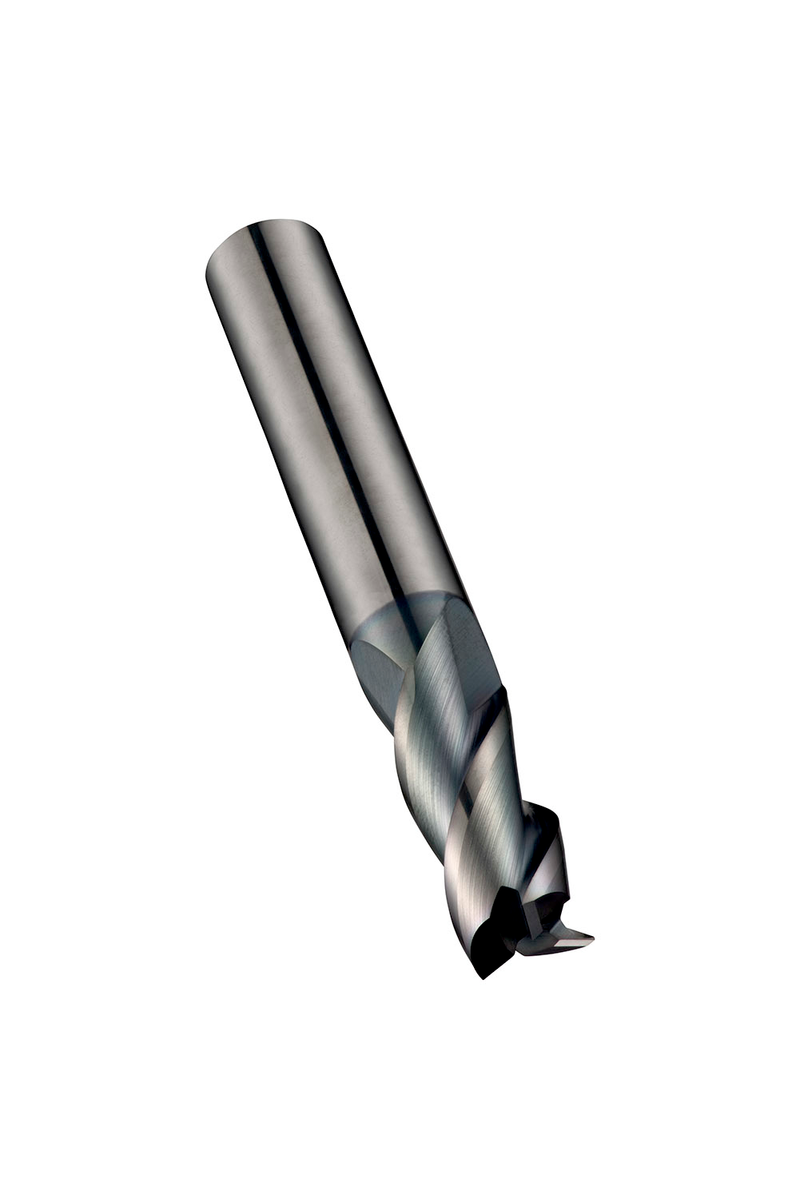

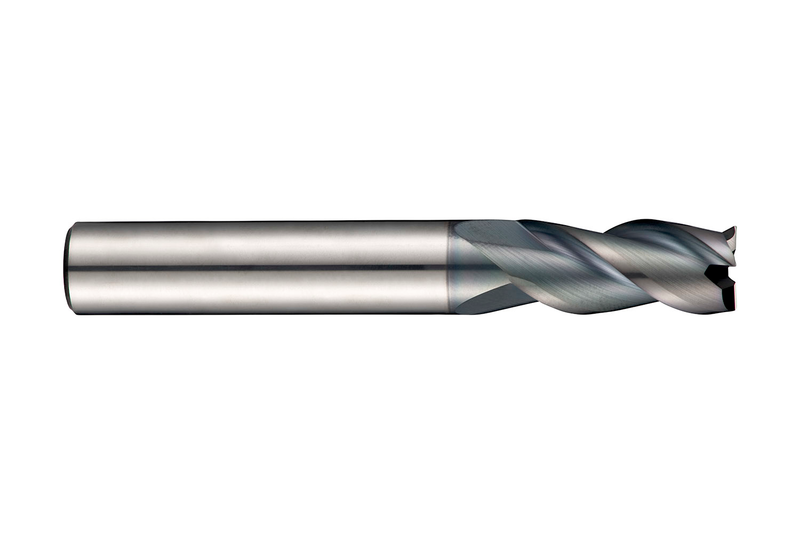

Fraise en bout courte 3 dents, diamètre 12mm avec 25mm de longueur de coupe et 75mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le surfaçage en bout et l'usinage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71312.0
GradeAlCrN
Product Number7002457
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002457
EAN7320760689981
File Type Download
S71312.0 — Line Drawing PDF Download
