S71316.0
S71316.0
S71316.0
S71316.0

S71316.0

UGC DOR7002459
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$229.40 CAD - $229.40 CAD
$229.40 CAD
$229.40 CAD - $229.40 CAD
$229.40 CAD

Vendu en lots de : 1

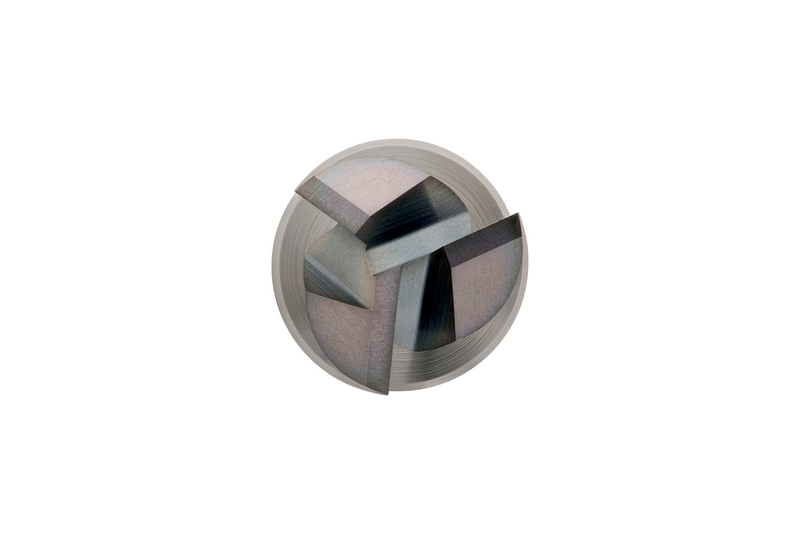

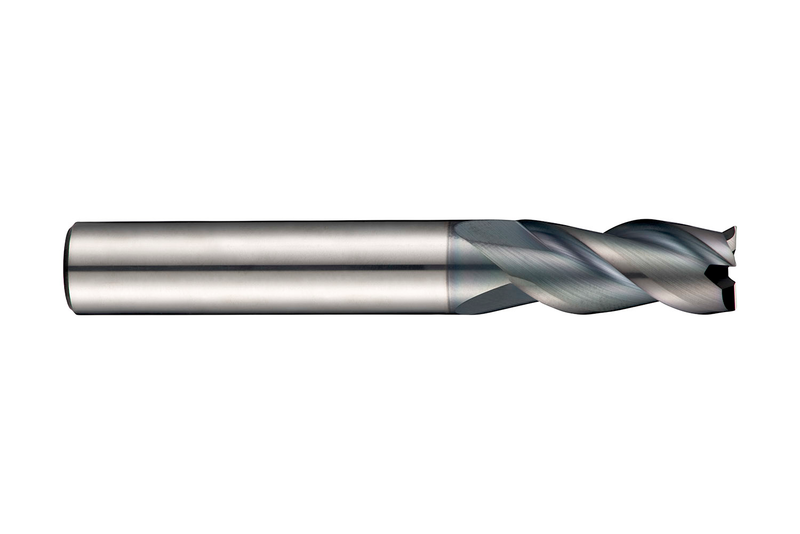

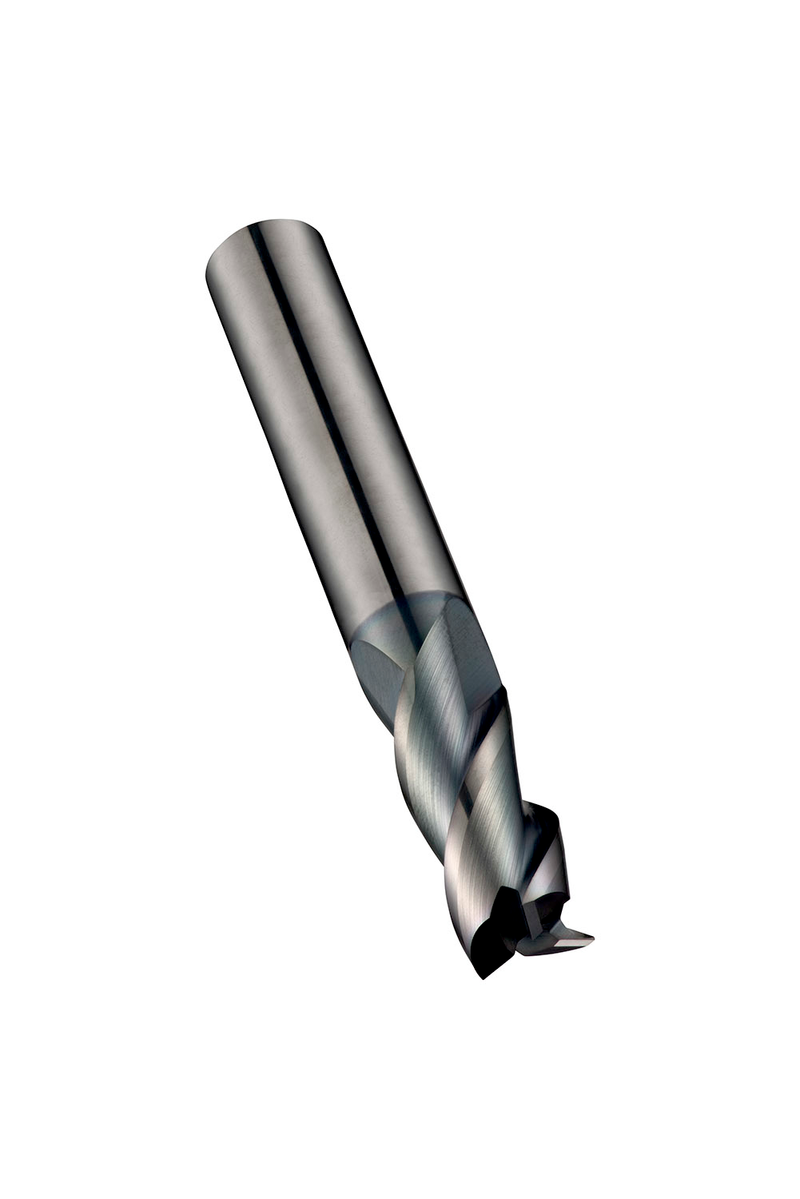

Fraise en bout courte 3 dents, diamètre 16mm avec 32mm de longueur de coupe et 90mm de longueur totale, selon la norme DORMER avec un queue cylindrique de 16mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71316.0
GradeAlCrN
Product Number7002459
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002459
EAN7320760690000
File Type Download
S71316.0 — Line Drawing PDF Download
