UGC DOR7002460
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.47 CAD - $295.47 CAD
$295.47 CAD
$295.47 CAD - $295.47 CAD
$295.47 CAD

Vendu en lots de : 1

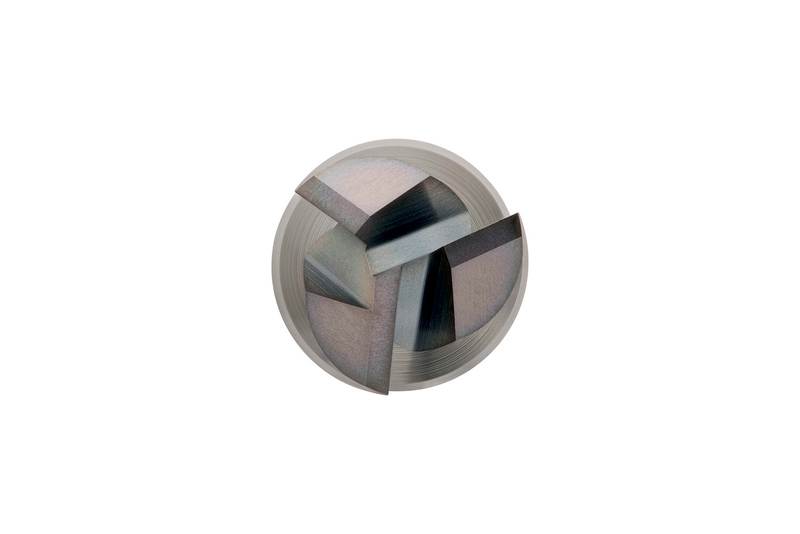

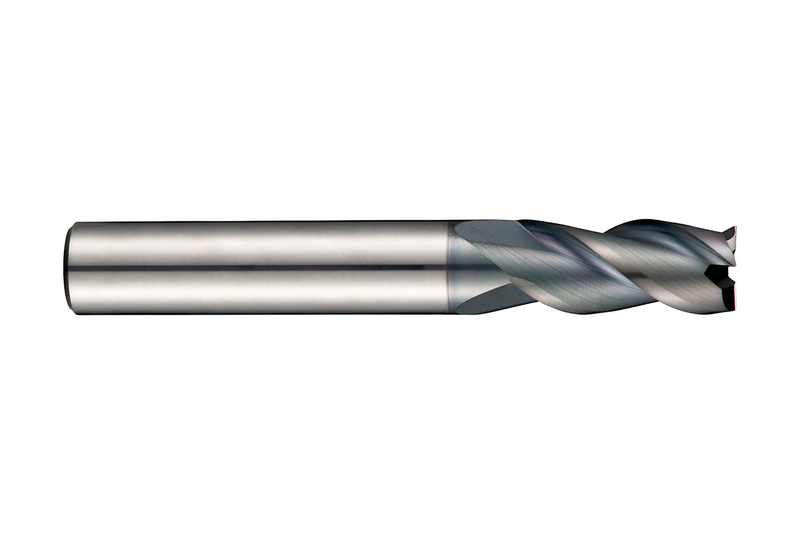

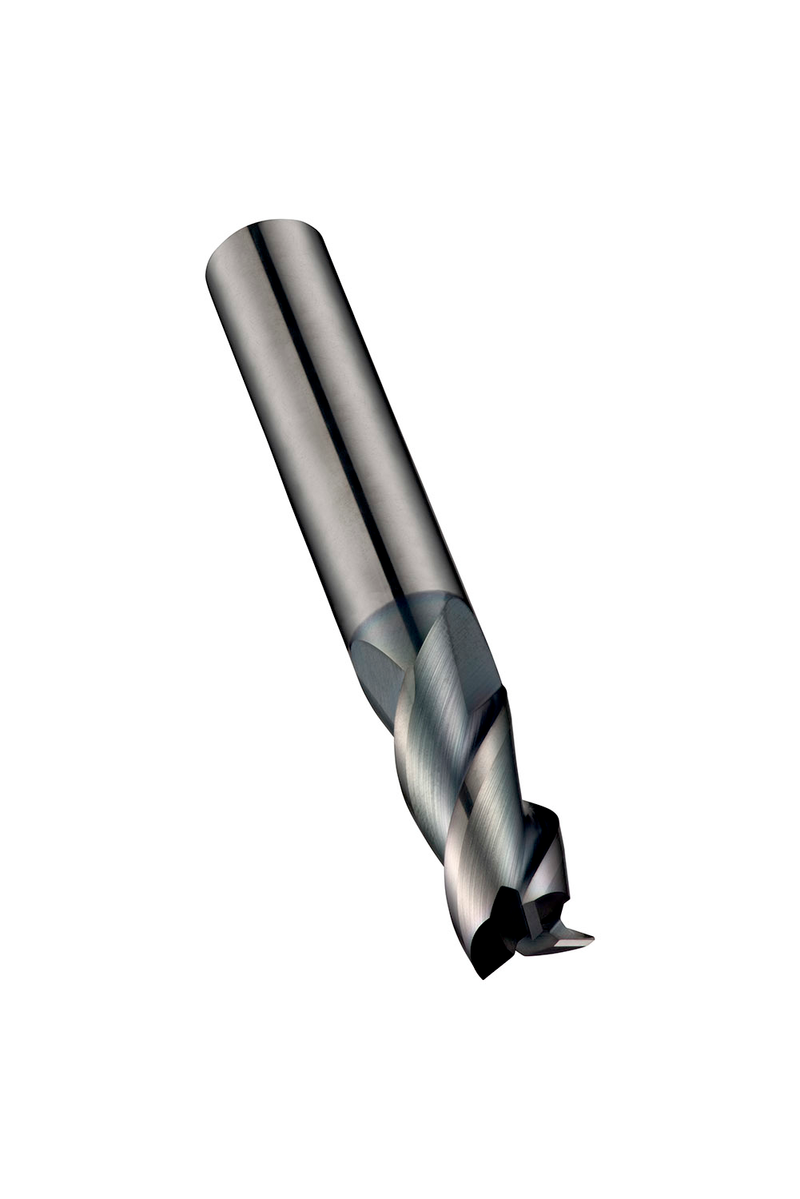

Fraise en bout courte à 3 dents, diamètre 18mm, longueur de coupe 38mm et longueur totale 100mm, selon la norme DORMER avec une queue cylindrique de 18mm, en carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71318.0
GradeAlCrN
Product Number7002460
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002460
EAN7320760690017
File Type Download
S71318.0 — Line Drawing PDF Download
