UGC DOR7002461
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$355.73 CAD - $355.73 CAD
$355.73 CAD
$355.73 CAD - $355.73 CAD
$355.73 CAD

Vendu en lots de : 1

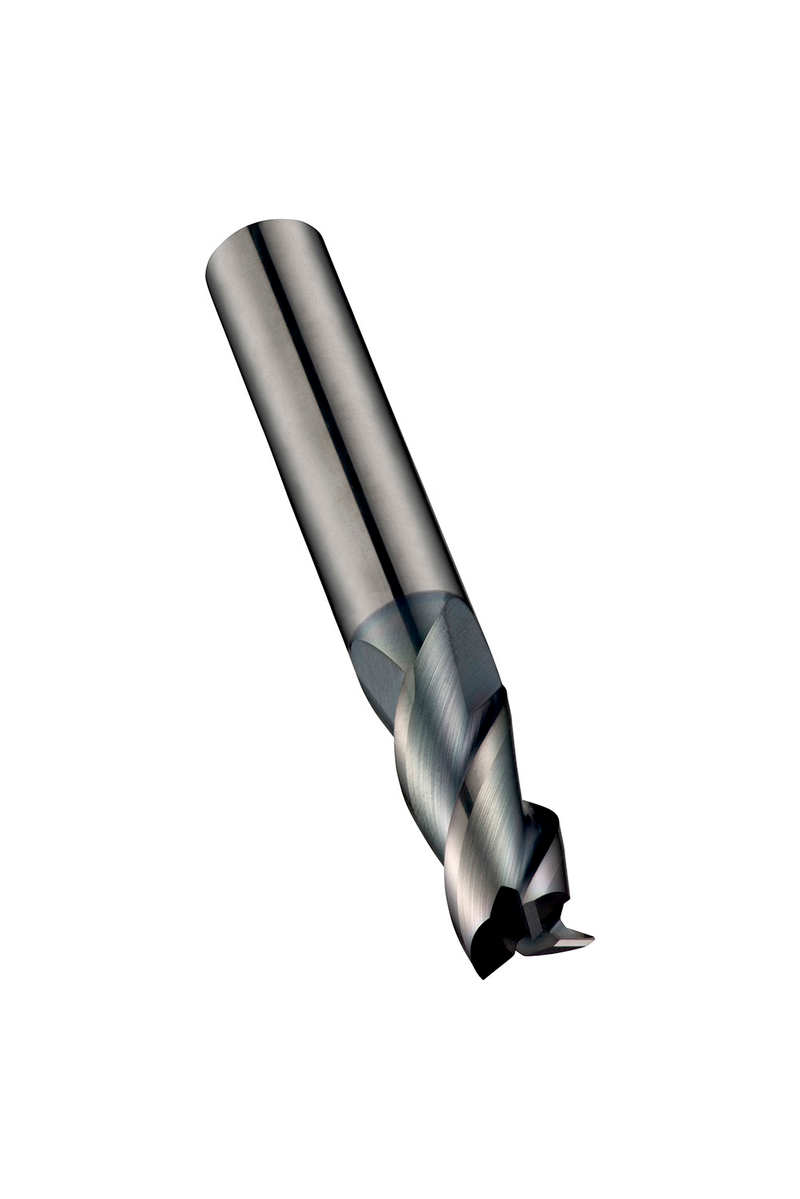

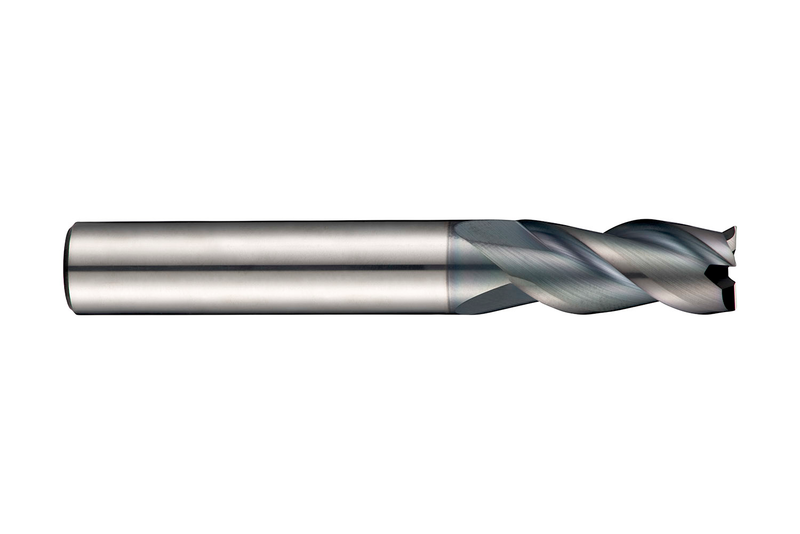

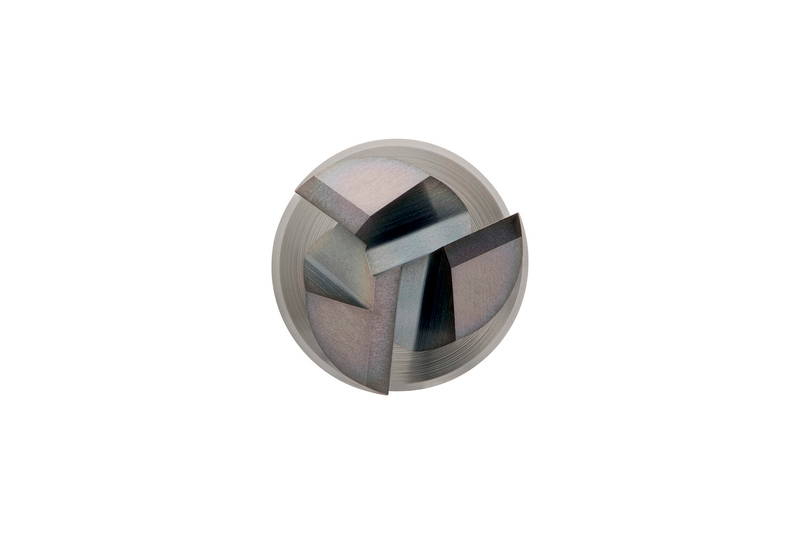

Fraise carbure monobloc à queue cylindrique, à coupe courte, 3 dents, diamètre 20 mm avec longueur de coupe de 38 mm et longueur totale de 100 mm, selon la norme DORMER, queue cylindrique de 20 mm, revêtement AlCrN, hélice à 40° et angle de coupe de 10°, pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71320.0
GradeAlCrN
Product Number7002461
Product FamilyS713
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002461
EAN7320760690024
File Type Download
S71320.0 — Line Drawing PDF Download
